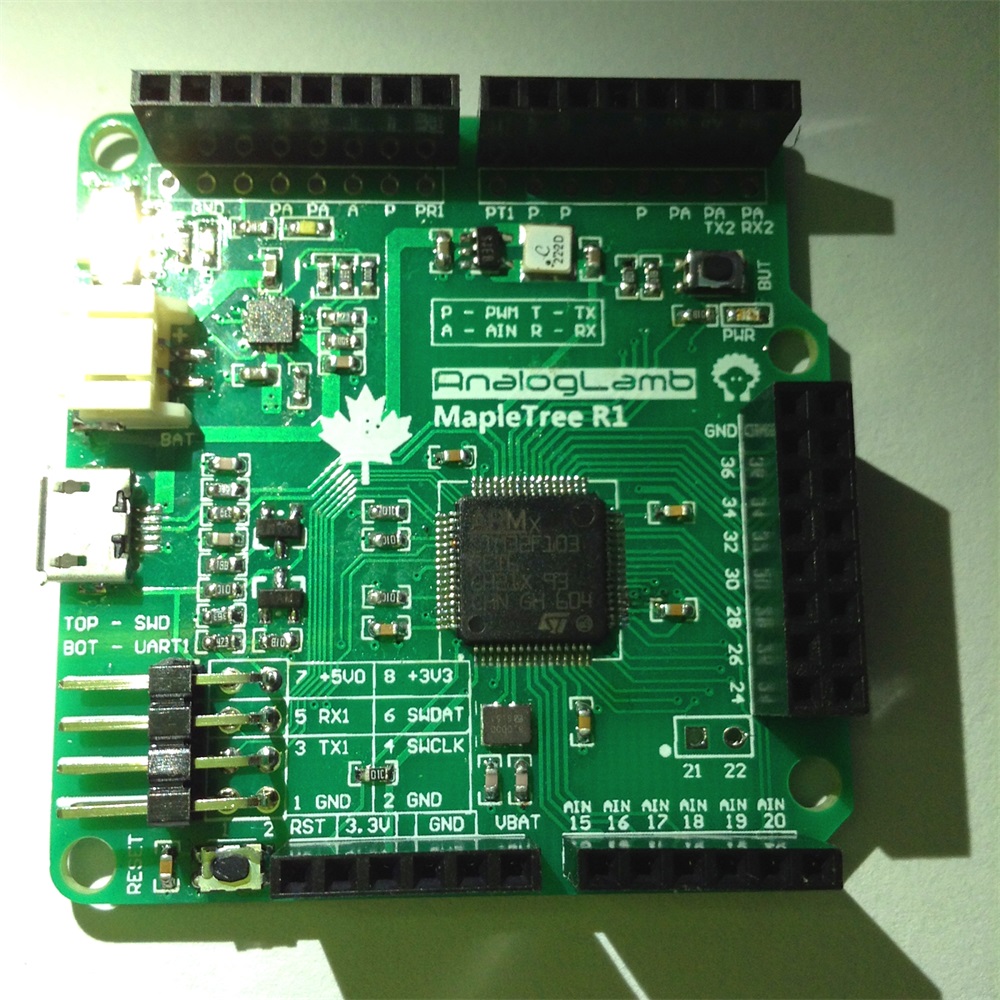

MapleTree – A STM32duino based on Leaf Maple

AnalogLamb
Sat Jul 16, 2016 4:22 am
http://www.analoglamb.com/product/maple … on-battery

I know the price of Leaf Maple in Seeedstudio is about 45$, not included Li-ion Battery. MapleTree is 39$ with about 3000mA Li-ion Battery, better than Leaf Maple.

Leaf Maple VS MapleTree

1.Leaf Maple uses USB Mini, MapleTree uses Micro USB which is more convenient. Most of smartphones use micro USB,not mini USB.
2.Leaf Maple uses BQ24010 as battery charger IC, MapleTree uses BQ24075T. BQ24075 is with Power path function.It is as same as smart phone battey charger system.
3.Leaf Maple uses LDO, MapleTree uses Buck DC-DC with 600mA output. It’s more efficiency.
4.MapleTree is a mobile device with about 3000mA Li-ion Battery. You can use smart phone PSU to charge and power it, same as smart phone.
5.We will provide more pin compatible boards for MapleTree, for example, LCD, Dot Matrix LED, Sensors, Basic IO board and so on.
6.MapleTree has a switch that can disable DC-DC.It also is for mobile.
7.MapleTree provides a interface for SWD and USART1, with our Lamblink tool, It’s more convenient for engineers and fans. LambLink = STLink V2+USB to USART + USB Hub.

Welcome to try our MapleTree.

AnalogLamb.Com – STM32duino for Everyone


RogerClark
Sat Jul 16, 2016 5:31 am
The original Maple boards are no longer in production, Leaflabs stopped making them several years ago and has been shutting down their Maple related websites for the past year.

Only clones of the boards are now available, with these 2 being probably the closest clones

https://www.itead.cc/development-platfo … maple.html

http://www.aliexpress.com/item/leaflabs … 706ad7ab4e

As far as I’m aware both Baite and ITead are Chinese companies.

I know Olimex also does a Maple type board, but its a lot different to the Maple

https://www.olimex.com/Products/Duino/S … INO-STM32/

Olimex are in Bulgaria (Europe) https://www.olimex.com/About/


AnalogLamb
Sat Jul 16, 2016 6:33 am
RogerClark wrote:The original Maple boards are no longer in production, Leaflabs stopped making them several years ago and has been shutting down their Maple related websites for the past year.

Only clones of the boards are now available, with these 2 being probably the closest clones

https://www.itead.cc/development-platfo … maple.html

http://www.aliexpress.com/item/leaflabs … 706ad7ab4e

As far as I’m aware both Baite and ITead are Chinese companies.

I know Olimex also does a Maple type board, but its a lot different to the Maple

https://www.olimex.com/Products/Duino/S … INO-STM32/

Olimex are in Bulgaria (Europe) https://www.olimex.com/About/


RogerClark
Sat Jul 16, 2016 7:15 am
Hi

I think your product is similar to the Microduino, except your board is a bit bigger and has headers

https://www.microduino.cc/store

https://wiki.microduino.cc/index.php/ST … ompatible)

We added support for the Microduino ARM board about a year ago, as I think one forum member has a Microduino ARM board

I think its a shame that everyone makes clones of the original Maple R1 and not the Maple RET6, as the STM32F103RET is a much better MCU as it has DAC etc, and it is the same size as the F103RB, so it would be easy for companies to make a much better board, at only $1 cost


AnalogLamb
Sat Jul 16, 2016 7:42 am
RogerClark wrote:Hi

I think your product is similar to the Microduino, except your board is a bit bigger and has headers

https://www.microduino.cc/store

https://wiki.microduino.cc/index.php/ST … ompatible)

We added support for the Microduino ARM board about a year ago, as I think one forum member has a Microduino ARM board

I think its a shame that everyone makes clones of the original Maple R1 and not the Maple RET6, as the STM32F103RET is a much better MCU as it has DAC etc, and it is the same size as the F103RB, so it would be easy for companies to make a much better board, at only $1 cost


martinayotte
Sat Jul 16, 2016 12:47 pm
How much will be priced your F405RG ?
Which on-board peripherals will be available ?
(I just want to compare it with Arch_Max with ETH and SDCard, priced at $19.95)

AnalogLamb
Sat Jul 16, 2016 1:51 pm
martinayotte wrote:How much will be priced your F405RG ?
Which on-board peripherals will be available ?
(I just want to compare it with Arch_Max with ETH and SDCard, priced at $19.95)

AnalogLamb
Sat Jul 16, 2016 2:19 pm
This is our Maple RET6 Version. Except MCU, other parts are as same as MapleTree.



Rick Kimball
Sat Jul 16, 2016 2:28 pm
AnalogLamb wrote:Our Maple F405RG is as same as MapleTree, with about 3000mAH Li-ion Battery, no ethernut, no sd Card, priced at 45$.
peripherals will be in extended board like Arduino.

martinayotte
Sat Jul 16, 2016 5:38 pm
AnalogLamb wrote:Arch_Max is not 19.95, is 39.95, also made in China by SeeedStudio.

martinayotte
Sat Jul 16, 2016 5:42 pm
Rick Kimball wrote:
That seems like a lot of money for a board that has no software support or ethernet connectors.

Rick Kimball
Sat Jul 16, 2016 6:09 pm
Once you creep into the $20 range you are competing with raspberry pi and its clones.

-rick


martinayotte
Sat Jul 16, 2016 6:50 pm
Of course !
I’ve several flavours of OrangePi.
I’ve also seen recently new boards such as NanoPi-Neo starting at $7.99 :
http://www.cnx-software.com/2016/07/07/ … ent-board/

RogerClark
Sat Jul 16, 2016 8:55 pm
With the ArchMax they constantly keep dropping the price to under $20, so I wonder if they get any sales at all at $39

STM have loads of boards in the $20 price range as well.

This whole sector is incredibly price sensitive, with the majority of people on the board moving to the STM32 platform as you can buy the BluePill for under $2 including postage


AnalogLamb
Tue Jul 19, 2016 3:44 am
RogerClark wrote:With the ArchMax they constantly keep dropping the price to under $20, so I wonder if they get any sales at all at $39

STM have loads of boards in the $20 price range as well.

This whole sector is incredibly price sensitive, with the majority of people on the board moving to the STM32 platform as you can buy the BluePill for under $2 including postage
