Yet another meter.

ahull
Tue Mar 06, 2018 11:40 pm
Its a meter Jim, but not as we know it..

Another random ebay purchase. Sold as not working, but a little minor surgery seems to have brought some life back to it..


Anybody know what it is.. :P

More clues here.

https://photos.app.goo.gl/nlPVXCAfxZ6hZAl13

No big cash prizes for figuring it out, but you do get a round of cloud based virtual applause.

EDIT: Spoiler alert I made some interesting progress with this device.
Sketch used to dump and update the EEPROM on the device is now in git.
Checkout the latest version here -> https://github.com/pingumacpenguin/SOR- … dater..git

ricardo-reis
Tue Mar 06, 2018 11:55 pm
fuse?
mrburnette
Tue Mar 06, 2018 11:59 pm
I did not copy the description, but is there something you would like to tell us about the 2nd bullet?

  • Waterproof, light,small
  • Rugged devices for battlefield use
  • Hands free data exchange
  • Transmission, even through clothing

ricardo-reis
Wed Mar 07, 2018 12:04 am
i thought you were asking to figure out what was broken, not what was the device..

http://www.laurussystems.com/products/p … GP_SOR.pdf :)

ahull
Wed Mar 07, 2018 12:14 am
[ricardo-reis – Wed Mar 07, 2018 12:04 am] –
i thought you were asking to figure out what was broken, not what was the device..

http://www.laurussystems.com/products/p … GP_SOR.pdf :)

The devices purpose is perhaps easier to discern than the fault. The fault was a cracked solder joint on the battery contact.

I purchased two, but the second one is proving more interesting to figure out. It draws a small current when I apply power, occasionally emits a plaintive piezo beep, but otherwise appears to be stone dead. Someone had written “powered down” in sharpie on the case, so it may have been intentionally disabled.

The internal images are from the second device as I currently have the possibly working one attached to an old mobile phone battery, monitoring my environment, however since I live in the middle of nowhere, it hasn’t detected anything interesting … yet.

If I can find my eeprom reader I may attempt to dump the contents of the 24LC16 and see if it gives any clues. The device apparently can “talk” to the mothership and give readings in the field. I haven’t sussed out that bit yet either.

I’m also not sure which part is the detector, but it is allegedly solid state. Has anybody here poked around in anything similar before?

I also haven’t read those QR codes yet. However it is time to sleep here, so I’ll take a crack at that in the morning.

What is not obvious in the photos is that the four gold contacts on the display side of the unit, are on an entirely electrically isolated and un-powered smaller board attached separately on to the case. This may have some sort of device ID or serial number or indeed it may have magic powers to allow it to talk to and or be powered by the rest of the device. I simply don’t know.

There is also a mysterious reed switch.. probably to tell the unit when it is in intimate contact with some kind of reader or docking station.

ahull
Wed Mar 07, 2018 12:28 am
[mrburnette – Tue Mar 06, 2018 11:59 pm] –
I did not copy the description, but is there something you would like to tell us about the 2nd bullet?

  • Waterproof, light,small
  • Rugged devices for battlefield use
  • Hands free data exchange
  • Transmission, even through clothing

I’m not expecting any battles round here the last one on record was in 1332.

I was more impressed with the “TREE protection”, you would think it could withstand a falling oak :P .. or perhaps it protects the TREE from falling ICBMs

zoomx
Wed Mar 07, 2018 10:36 am
It seems a dosimeter.

On the display I read (photo RIMG0718.JPG) the words Dose and Alarm, the measure unit is mSv that is milliSievert. The sensor must be in the upper part, maybe a Geiger-Muller tube.

The Qr code in the upper part shows the same number that is printed.

ahull
Wed Mar 07, 2018 10:58 am
It is indeed a dosimeter :D

BTW It is based on a variant of this -> (PDF Warning)

Memory Type
Support for mask ROM version.

Memory Size
ROM size ………………………………………………………………. 48 Kbytes
RAM size…………………………………………………………….. 1536 bytes


I presume they chose the m38258XXX because it has a built in LCD driver, and is low power. I would suggest there are better choices these days, but the device has a date code of 04/2003, so things have moved on a bit since then.

The mcu had a built in UART, so I think I may have to do some poking around on those pins and see if I can “talk” to it. However that is getting ahead of myself since I haven’t actually identified which bit is the sensor, nor do I have a suitable lump of granite or whatever to see if it actually works.

Pro tip- WD40 is great for removing sticky label residue and cleaning up the laser etching so you can actually read the lettering on the surface of the chip.

ahull
Wed Mar 07, 2018 11:08 am
I added a few more pictures to the google album including some of the daughter board.


ahull
Wed Mar 07, 2018 11:27 am
[zoomx – Wed Mar 07, 2018 10:36 am] –
It seems a dosimeter.

Correct :D

On the display I read (photo RIMG0718.JPG) the words Dose and Alarm, the measure unit is mSv that is milliSievert. The sensor must be in the upper part, maybe a Geiger-Muller tube.

It claims the sensor is solid state, so no GM tubes.. also even the smallest of GM tubes is pretty bulk, and you need a larger tube to get any decent results.

A small tube will tell you if you are actively being fried, but you need something slightly larger to have the sensitivity to measure background radiation.

One other point. This device claims to measure gamma radiation rather than alpha or beta, as would typically be the case with a GM tube.

The upper part might actually be a coil for some sort of “radio” since the datasheet claims the device can be read from up to 1000m in the field. hence my confusion about what actually is doing the sensing. There are five thin wires going in to the upper device, so I should really probe them and see if they look like a few coils of wire, or perhaps a pin diode, or both.


The Qr code in the upper part shows the same number that is printed.

I believe you are correct there too. :D

My next task is to find a source of gamma rays without ether frying myself, or ending up on an international watch list :lol:

I think I need some granite, or perhaps a trip to Dalgetty bay with its golden glowing sands is on the cards.

ahull
Wed Mar 07, 2018 11:51 am
Update:

The “working” one does appear to be working, or at least the count has increased, so perhaps they just transported some WMD past my door. :(

ahull
Wed Mar 07, 2018 12:17 pm
The microcontroller datasheet references the “740 Family Software Manual” which means the device is based on one of my favourite pieces of ancient silicon as it is a 6502 variant.

https://en.wikipedia.org/wiki/Renesas_740

More info here.

In the unlikely event that anyone else wants to add one of these toys to their junk pile, the vendor still has a few left.

zoomx
Wed Mar 07, 2018 12:39 pm
Geiger-Muller tubes can detect Gamma and Beta, alpha are blocked by the enclosure. Special Geiger tubes have a mica window so they can measure alpha too, they are called pancake.
There are small tubes but they require high voltage, 400V or more, and I don’t see any high voltage generator.

Usually there is a radioactivity backgroung depending on geology, volcanic and igneous rocks give an higher background but it can happen that a sedimentary rock can have an activity if they originated from volcanic and igneous rocks.
In house it depends on materials used for building.
In my kitchen I have granite that double the background of other rooms, as measured many years ago.

Why the piezo has three wires? It is a piezo?

Maybe the sensor is the little piece under the black resin because PIN diodes are light sensitive. But this sensor can’t measure alpha that will be blocked by the resin and the plastic enclosure, maybe the same for the beta.

Maybe the doughter board is the neutrons sensor? Or maybe alpha particles.

I will ask in a radioactivity forum.

Edit:
Found here (in italian)
http://www.radioactivityforum.it/forum/ … =17&t=2235
It seems that you need an interface to get it working.

ahull
Wed Mar 07, 2018 8:21 pm
[zoomx – Wed Mar 07, 2018 12:39 pm] –
Geiger-Muller tubes can detect Gamma and Beta, alpha are blocked by the enclosure. Special Geiger tubes have a mica window so they can measure alpha too, they are called pancake.
There are small tubes but they require high voltage, 400V or more, and I don’t see any high voltage generator.

Usually there is a radioactivity backgroung depending on geology, volcanic and igneous rocks give an higher background but it can happen that a sedimentary rock can have an activity if they originated from volcanic and igneous rocks.
In house it depends on materials used for building.
In my kitchen I have granite that double the background of other rooms, as measured many years ago.

Quite correct, I meant to say that the GM tube cannot measure the spectrum of gamma rays. It will pick up the ionizing events.

Why the piezo has three wires? It is a piezo?

See here -> https://electronics.stackexchange.com/q … zzer#18213

Maybe the sensor is the little piece under the black resin because PIN diodes are light sensitive. But this sensor can’t measure alpha that will be blocked by the resin and the plastic enclosure, maybe the same for the beta.

Maybe the doughter board is the neutrons sensor? Or maybe alpha particles.

I will ask in a radioactivity forum.

Edit:
Found here (in italian)
http://www.radioactivityforum.it/forum/ … =17&t=2235
It seems that you need an interface to get it working.

The fancy software presumably serves as an interface to the 24CL16B eerom in the sense that the microcontroller only has rom and ram, so this is the only non volatile storage, therefore any lasting changes ultimately have to be made in the eerom.

I suspect that if I cloned the contents of the eerom from the working one to the non working one, it may spring back to life.
The eerom also must contain the data log (but how much of the eerom is log, and how much is config, is obviously an unknown).
There is possibly also calibration data in the eerom, so I would need to back up the current contents before I start twiddling any bits.

EDIT: Software manual for the reader here -> http://www.irss.ca/development/document … Manual.pdf
I suspect the lump at the top of the PCB with the five wires is indeed a ferrite core associated with the radio comms. and that the reed switch turns on the radio to allow the reader to talk to the device.
EDIT 2: Wow these things ‘aint cheap -> https://irss.ca/product/personal-dosime … -hardened/
Those things costs over £350 or $500 each .. so I just bought a thousand bucks worth of paperweights. :lol:

ahull
Wed Mar 07, 2018 9:48 pm
The sensor *may* be a pindiode type, but it might also be mosfet based device or what is termed a radfet. Example -> http://www.tyndallworks.com/p-channel-radfet the fact that it is claimed that the device can be reused and the exposure is logged, suggest at pin diode, but I am no expert.

I am assuming the metal cans contain the radio tx/rx circuit, but I guess since the device is a gamma detector, then there is a possibility the detector is in one or other of the “tin cans”.

One more observation. The microcontroller doesn’t appear to be rad hardened in any way, so presumably if subject to sufficient radiation, it could potentially fail, but by then I suspect the wearer would be “Kentucky Fried” anyway, so this is probably not a real problem.

zoomx
Thu Mar 08, 2018 9:02 am
GM tubes give only events not energy. If you want energy the most common device is a scintillator, usually a plastic disc or cylinder that emit a small light pulse that must be amplified with a photomultiplier.

I never read about MOSFET but I wander which sensibility can have a very small device. I saw CCD and CMOS used as sensor, there is anandroid app too.

I built an Elektor kit that uses a BPW34 photodiode but the surface is small and the sensibility is worse than a SMB20 russian GM tube that I have (the counter is on an ESP8266 but usually an Arduino is used in common kits), you can see the data here
https://thingspeak.com/channels/173135
It’s simple, the GM tube volume is much bigger.
I made some experiments using granite, obsidian and other rock samples that I have but only the first two were active. Basalt, with my surprise, was not so active.

I believe too that the upper part is an antenna.
I noticed that also the daughter board has a component covered with black resin, I suspect that it is another sensor.

zoomx
Thu Mar 08, 2018 6:38 pm
Got response.
http://www.bartlettams.com/tcfile/rms/d … entals.pdf
Page 10
It is inside the little metal case.
ahull
Fri Mar 09, 2018 12:08 am
Thanks – that doc is really useful, the DMC 2000S looks to be a very, very close cousin of the devices I have.

A small charge is created and collected by the polarization voltage, thus producing a small pulse across the diode

It looks like the detector is a PIN diode, probably a purpose made one (i.e. large and expensive), rather than your run of the mill ten cents on ebay device.

Furthermore my unit behaves per the DCM 2000S (page 20 in the document you linked) in the sense that if you hold the button for eight seconds, it cycles through the Dose Alarm -> Dose Rate -> etc which I didn’t know before.

The parameters stored in the eeprom are probably those listed on page 40 of this document -> http://www.irss.ca/development/document … entals.pdf

zoomx
Fri Mar 09, 2018 7:35 am
It seems that these dosimeters are made from a common project.

In my office I have some old Radon dataloggers and they have a PIN diode that is large like the piezo. Hamamatsu is a producer of such diodes but I believe that there are others.

ahull
Fri Mar 09, 2018 9:08 am
I was wondering if you could simply parallel up a bunch of smaller, cheaper pin diodes arranged as an array to effectively get as large a sensor as your board space allows.

For example a 5×5 array of BWP34 photo pin diodes would give an effective area of 25 x 7.5mm^2 (187.5mm^2) for a cost of around $12.65

Even cheaper but smaller area photo pin diodes exist for example you can get 20pcs PD204-6C for $1.98 with an estimated 4mm^2 area each (so a 10×10 array would give a total sensing area of approx 400mm^2 for about $9.90)

If this idea is workable, there may be a way to use the arrangement of the array to control the noise in the system to some extent and thus improve the signal/noise ratio.

This idea might also make sense if trying to build some sort of directional device since you could place each individual diode in its own cell of a gamma ray collimator.

The collimator might be something as simple as a 10×10 grid of 3mm holes drilled in a thick block of lead.

BTW using pin diode arrays for particle detection is not a new concept by any means.

zoomx
Fri Mar 09, 2018 2:11 pm
It was done with the same Elektor kit that I have so I bought some BPW34 but… they are collecting dust….. :oops:

https://www.elektormagazine.com/labs/im … ter-110538
https://www.elektormagazine.com/magazin … 1111/19753
You can download the schematics and the sources. It is PIC based.

There are others project based on BPW34 or similar.

The SmartGeiger that is selled from China is based on it (first version) but it is overpriced.

ahull
Fri Mar 09, 2018 3:18 pm
Interesting article, thanks.

The circuit (see Figure 1) can use several photodiodes in parallel at its input. On the one hand, this increases the pulse rate; unfortunately, this advantage is on the other hand offset by the reduced amplitude of the sensor’s output due to its increased total capacitance.

Perhaps some other arrangement rather than simply paralleling them up might give better results.
A mix of series/parallel or some kind of a balanced bridge arrangement might work better.

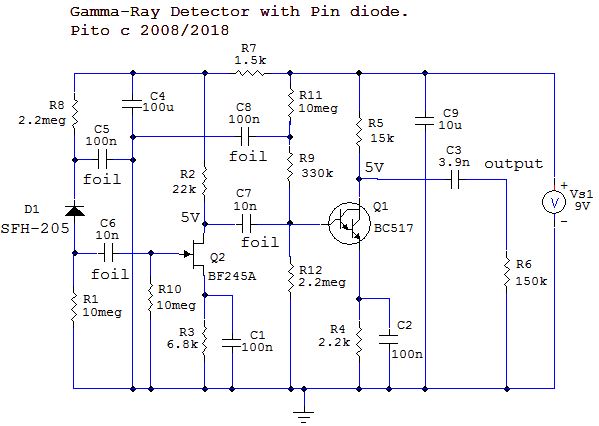

EDIT: The diode stacking shown here -> https://hackaday.io/project/5946-openct … e-stacking
… looks interesting, although the input stage of the Elector design is simpler and far cheaper (but possibly noisier and/or less sensitive).

ahull
Sat Mar 10, 2018 1:46 am
:o The alarm just went off on the thing!!!

I assume that this is because the alarm threshold is set at an unrealistically low value.

So far I haven’t grown an extra head, or had all my hair fall out, but the irritating thing is I have no way to cancel the irritating “peep” that occurs at 1 second intervals. I ended up wrapping the thing in layers of bubble wrap and stuffing it in an old metal biscuit tin which has muffled the noise completely.

Before you ask .. “why don’t you just disconnect the battery”?, bear in mind that there is a built in super cap that keeps the thing alive even when the battery is removed, and when you remove the battery a different and even more irritating alarm sounds.

When I get a spare moment, I’ll need to take it apart again and short out the super cap. :lol:

zmemw16
Sat Mar 10, 2018 6:55 am
pre-order a replacement screwdriver ? :D
ahull
Sat Mar 10, 2018 11:32 am
[zmemw16 – Sat Mar 10, 2018 6:55 am] –
pre-order a replacement screwdriver ? :D

I think it will have to be a sonic screwdriver, given the racket this thing is making. :P

The irritating chirping noises have pushed the “dumping the eeprom of the dosimeter” project up the to-do list, but since that list seems to be written on an infinite mobius strip, I’m not sure when this will be done.

I was also thinking of firing up the SDR dongle to see if I can see the dosimeter squawking to the mothership.

zoomx
Mon Mar 12, 2018 10:10 am
:lol: :lol:

Edit:
in the radioactivity forum there is an user who ask what component cam be the light blue one in the doughter board. It seems a cap but I am not sure.

BennehBoy
Tue Mar 13, 2018 9:17 am
Really old luminescent watch dials use Radium 226 which decays by alpha emission – might be a test if you have something lying about.
mrburnette
Tue Mar 13, 2018 12:19 pm
[BennehBoy – Tue Mar 13, 2018 9:17 am] –
Really old luminescent watch dials use Radium 226 which decays by alpha emission – might be a test if you have something lying about.

I use the radioactive Alpha source from old ionization smoke detectors, Americium 241.
Americium-241 emits α particles with energies of about 5.4 MeV, which are stopped by a piece of paper or a few centimeters of air and cannot penetrate the human epidermis. Am-241 is primarily an alpha emitter, but also emits some gamma rays.

Of course, for testing detectors, the gamma component is (likely) the desired signature.

ahull
Tue Mar 13, 2018 4:39 pm
Well I finally had 5 minutes to take another look at this, so I dug out the BluePill I used to dump the 24C02 on those cheap multimeters that I posted about, some time back. I altered it slightly to scan the whole 12c address range, so that it could read devices up to 24C16 size and connected it to the “dead” dosimeter.

Here is the dump (repeated several time to ensure that I was getting consistent data).

cu -l /dev/ttyACM3
Connected.

Dosimeter EEROM dumper and updater.
Waiting for Device to POST and i2c Bus to settle.
Scanning...

I2C device found at address 0x50
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 6A F0 01 00 6F F0 01 00 6D F0 01 00 60 F0 -
10 : 01 00 6F F0 01 00 60 F0 01 00 7A F0 01 00 67 F0 -
20 : 01 00 5E F0 01 00 6A F0 01 00 6B F0 01 00 55 F0 -
30 : 01 00 5E F0 01 00 63 F0 01 00 60 F0 01 00 60 F0 -
40 : 01 00 61 F0 01 00 6E F0 01 00 5E F0 01 00 6C F0 -
50 : 01 00 65 F0 01 00 62 F0 01 00 6C F0 01 00 69 F0 -
60 : 01 00 72 F0 01 00 9C F0 01 00 87 F0 01 00 8F F0 -
70 : 01 00 9A F0 01 00 A4 F0 01 00 93 F0 01 00 91 F0 -
80 : 01 00 A2 F0 01 00 A9 F0 01 00 95 F0 01 00 7E F0 -
90 : 01 00 98 F0 01 00 93 F0 01 00 8F F0 01 00 8A F0 -
A0 : 01 00 AA F0 01 00 98 F0 01 00 7E F0 01 00 86 F0 -
B0 : 01 00 92 F0 01 00 A6 F0 01 00 83 F0 01 00 7C F0 -
C0 : 01 00 93 F0 01 00 81 F0 01 00 98 F0 01 00 89 F0 -
D0 : 01 00 90 F0 01 00 9B F0 01 00 96 F0 01 00 7D F0 -
E0 : 01 00 95 F0 01 00 A3 F0 01 00 93 F0 01 00 8F F0 -
F0 : 01 00 A3 F0 01 00 8D F0 01 00 96 F0 01 00 B4 F0

I2C device found at address 0x51
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 80 F0 01 00 8F F0 01 00 90 F0 01 00 7F F0 -
10 : 01 00 79 F0 01 00 9D F0 01 00 95 F0 01 00 AF F0 -
20 : 01 00 82 F0 01 00 97 F0 01 00 88 F0 01 00 A6 F0 -
30 : 01 00 95 F0 01 00 A7 F0 01 00 94 F0 01 00 81 F0 -
40 : 01 00 9F F0 01 00 7A F0 01 00 99 F0 01 00 90 F0 -
50 : 01 00 90 F0 01 00 87 F0 01 00 02 F0 01 00 00 E1 -
60 : 11 F0 00 01 00 E1 53 F0 01 00 00 E1 02 F0 00 01 -
70 : 00 E1 01 F0 01 00 00 E1 01 F0 00 01 00 E1 01 F0 -
80 : 01 00 00 E1 2F F0 01 00 15 F0 00 01 00 E1 01 F0 -
90 : 01 00 00 E1 01 F0 00 01 00 E1 01 F0 01 00 00 E1 -
A0 : 01 F0 00 01 00 E1 01 F0 01 00 00 E1 05 F0 00 01 -
B0 : 00 E1 21 F0 01 00 00 E1 4E F0 01 00 A4 F0 01 00 -
C0 : A7 F0 01 00 A1 F0 01 00 98 F0 01 00 8B F0 01 00 -
D0 : A9 F0 01 00 88 F0 01 00 93 F0 01 00 7B F0 06 04 -
E0 : 00 01 00 E9 40 00 00 E1 00 40 00 E1 85 F0 01 00 -
F0 : 6E F0 01 00 79 F0 01 00 84 F0 01 00 47 F0 06 04

I2C device found at address 0x52
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 00 E8 06 04 01 E8 40 00 02 E1 00 40 02 E1 40 00 -
10 : 03 E1 00 40 03 E1 40 00 03 E1 00 40 03 E1 40 00 -
20 : 03 E1 00 40 03 E1 05 F0 06 04 40 00 05 E9 00 40 -
30 : 05 E1 40 00 06 E1 00 40 06 E1 40 00 08 E1 00 40 -
40 : 08 E1 40 00 08 E1 06 04 08 E8 00 40 08 E1 02 04 -
50 : 00 10 00 49 09 EE 02 44 00 10 00 49 09 EE 02 44 -
60 : 00 10 00 49 09 EE 02 44 00 10 00 49 09 EE 02 44 -
70 : 00 10 00 49 09 EE 00 D7 66 FE FE FE 00 00 00 09 -
80 : 00 00 00 00 00 00 37 F0 01 00 3B F0 01 00 3E F0 -
90 : 01 00 2D F0 01 00 43 F0 01 00 47 F0 01 00 40 F0 -
A0 : 01 00 3C F0 01 00 45 F0 01 00 3E F0 01 00 3A F0 -
B0 : 01 00 44 F0 01 00 44 F0 01 00 41 F0 01 00 41 F0 -
C0 : 01 00 42 F0 01 00 3B F0 01 00 3E F0 01 00 42 F0 -
D0 : 01 00 3D F0 01 00 3C F0 01 00 32 F0 01 00 39 F0 -
E0 : 01 00 3D F0 01 00 41 F0 01 00 42 F0 01 00 39 F0 -
F0 : 01 00 35 F0 01 00 40 F0 01 00 3A F0 01 00 42 F0

I2C device found at address 0x53
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 3F F0 01 00 3C F0 01 00 3A F0 01 00 3F F0 -
10 : 01 00 37 F0 01 00 43 F0 01 00 3D F0 01 00 3D F0 -
20 : 01 00 35 F0 01 00 3C F0 01 00 39 F0 01 00 35 F0 -
30 : 01 00 44 F0 01 00 40 F0 01 00 39 F0 01 00 4A F0 -
40 : 01 00 40 F0 01 00 3E F0 01 00 40 F0 01 00 3C F0 -
50 : 01 00 37 F0 01 00 3B F0 01 00 3E F0 01 00 46 F0 -
60 : 01 00 37 F0 01 00 3E F0 01 00 40 F0 01 00 3B F0 -
70 : 01 00 3F F0 01 00 40 F0 01 00 39 F0 01 00 3C F0 -
80 : 01 00 3E F0 01 00 3C F0 01 00 3F F0 01 00 3B F0 -
90 : 01 00 42 F0 01 00 39 F0 01 00 3E F0 01 00 47 F0 -
A0 : 01 00 41 F0 01 00 39 F0 01 00 3F F0 01 00 40 F0 -
B0 : 01 00 37 F0 01 00 47 F0 01 00 34 F0 01 00 39 F0 -
C0 : 01 00 42 F0 01 00 3B F0 01 00 35 F0 01 00 3F F0 -
D0 : 01 00 47 F0 01 00 3C F0 01 00 3D F0 01 00 42 F0 -
E0 : 01 00 4C F0 01 00 3A F0 01 00 3F F0 01 00 3C F0 -
F0 : 01 00 3F F0 01 00 35 F0 01 00 36 F0 01 00 3C F0

I2C device found at address 0x54
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 3E F0 01 00 3C F0 01 00 41 F0 01 00 39 F0 -
10 : 01 00 40 F0 01 00 35 F0 01 00 3D F0 01 00 42 F0 -
20 : 01 00 37 F0 01 00 34 F0 01 00 3D F0 01 00 3F F0 -
30 : 01 00 37 F0 01 00 42 F0 01 00 3D F0 01 00 34 F0 -
40 : 01 00 3B F0 01 00 43 F0 01 00 3E F0 01 00 43 F0 -
50 : 01 00 40 F0 01 00 3F F0 01 00 3E F0 01 00 34 F0 -
60 : 01 00 33 F0 01 00 35 F0 01 00 42 F0 01 00 3D F0 -
70 : 01 00 45 F0 01 00 37 F0 01 00 3C F0 01 00 33 F0 -
80 : 01 00 39 F0 01 00 33 F0 01 00 41 F0 01 00 37 F0 -
90 : 01 00 3C F0 01 00 3F F0 01 00 3B F0 01 00 37 F0 -
A0 : 01 00 41 F0 01 00 3F F0 01 00 43 F0 01 00 36 F0 -
B0 : 01 00 35 F0 01 00 3E F0 01 00 49 F0 01 00 47 F0 -
C0 : 01 00 35 F0 01 00 43 F0 01 00 3F F0 01 00 33 F0 -
D0 : 01 00 41 F0 01 00 36 F0 01 00 38 F0 01 00 47 F0 -
E0 : 01 00 3C F0 01 00 46 F0 01 00 4C F0 01 00 38 F0 -
F0 : 01 00 3E F0 01 00 40 F0 01 00 47 F0 01 00 3C F0

I2C device found at address 0x55
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 49 F0 01 00 3D F0 01 00 36 F0 01 00 3A F0 -
10 : 01 00 43 F0 01 00 45 F0 01 00 4E F0 01 00 60 F0 -
20 : 01 00 67 F0 01 00 6B F0 01 00 67 F0 01 00 6D F0 -
30 : 01 00 50 F0 01 00 64 F0 01 00 56 F0 01 00 5F F0 -
40 : 01 00 61 F0 01 00 5A F0 01 00 66 F0 01 00 62 F0 -
50 : 01 00 5F F0 01 00 64 F0 01 00 67 F0 01 00 55 F0 -
60 : 01 00 5B F0 01 00 67 F0 01 00 65 F0 01 00 5B F0 -
70 : 01 00 6B F0 01 00 67 F0 01 00 59 F0 01 00 61 F0 -
80 : 01 00 69 F0 01 00 5C F0 01 00 5E F0 01 00 66 F0 -
90 : 01 00 5A F0 01 00 6E F0 01 00 6D F0 01 00 5E F0 -
A0 : 01 00 5B F0 01 00 5A F0 01 00 69 F0 01 00 65 F0 -
B0 : 01 00 66 F0 01 00 6E F0 01 00 63 F0 01 00 60 F0 -
C0 : 01 00 6A F0 01 00 67 F0 01 00 60 F0 01 00 56 F0 -
D0 : 01 00 74 F0 01 00 64 F0 01 00 69 F0 01 00 64 F0 -
E0 : 01 00 51 F0 01 00 65 F0 01 00 5C F0 01 00 53 F0 -
F0 : 01 00 65 F0 01 00 5A F0 01 00 6A F0 01 00 57 F0

I2C device found at address 0x56
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 00 00 00 02 00 00 00 00 00 00 00 00 00 00 00 00 -
10 : 00 00 00 00 99 95 10 02 99 94 10 03 94 00 99 95 -
20 : 99 05 99 95 99 05 28 03 06 93 19 CE 00 00 00 00 -
30 : 00 00 00 00 00 00 27 03 03 24 03 03 11 27 18 00 -
40 : 00 0D 16 24 18 14 24 24 24 24 24 24 24 24 24 24 -
50 : FF FF FF FF FF FF FF FF 00 00 BC 00 02 01 01 00 -
60 : 00 00 00 00 00 07 BE 02 8D 04 7D 07 93 02 9B 04 -
70 : D2 08 D9 04 7C 73 80 00 00 00 00 01 10 00 00 34 -
80 : 28 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
90 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FF -
D0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
E0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
F0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

I2C device found at address 0x57
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 0F 0E D0 3C 1F 8C 75 0F 89 3C 78 03 40 40 05 2A -
10 : 01 00 13 00 18 81 84 00 00 00 00 00 00 00 00 00 -
20 : 00 8F 00 00 02 39 40 D6 C0 10 2B 24 03 03 26 64 -
30 : F8 F0 04 2A 0F F4 19 19 96 09 80 01 96 09 80 01 -
40 : 00 00 80 01 12 74 53 27 03 03 70 FF FF FF FF FF -
50 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
60 : FF 4E 04 C6 02 38 18 27 11 24 03 03 D0 74 98 4E -
70 : 04 00 D7 66 00 00 74 20 09 00 00 00 00 00 00 00 -
80 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 49 -
90 : 10 04 F4 15 FF FF F4 15 FF FF F4 15 FF FF F4 15 -
A0 : FF FF F4 15 FF FF F4 15 FF FF F4 15 FF FF F4 15 -
B0 : FF FF F4 15 FF FF F4 15 FF FF FF FF FF FF FF FF -
C0 : FF FF 71 C0 FF FF FF FF FF FF FF FF FF FF FF FF -
D0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
E0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
F0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

Done.

Scanning...

I2C device found at address 0x50
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 6A F0 01 00 6F F0 01 00 6D F0 01 00 60 F0 -
10 : 01 00 6F F0 01 00 60 F0 01 00 7A F0 01 00 67 F0 -
20 : 01 00 5E F0 01 00 6A F0 01 00 6B F0 01 00 55 F0 -
30 : 01 00 5E F0 01 00 63 F0 01 00 60 F0 01 00 60 F0 -
40 : 01 00 61 F0 01 00 6E F0 01 00 5E F0 01 00 6C F0 -
50 : 01 00 65 F0 01 00 62 F0 01 00 6C F0 01 00 69 F0 -
60 : 01 00 72 F0 01 00 9C F0 01 00 87 F0 01 00 8F F0 -
70 : 01 00 9A F0 01 00 A4 F0 01 00 93 F0 01 00 91 F0 -
80 : 01 00 A2 F0 01 00 A9 F0 01 00 95 F0 01 00 7E F0 -
90 : 01 00 98 F0 01 00 93 F0 01 00 8F F0 01 00 8A F0 -
A0 : 01 00 AA F0 01 00 98 F0 01 00 7E F0 01 00 86 F0 -
B0 : 01 00 92 F0 01 00 A6 F0 01 00 83 F0 01 00 7C F0 -
C0 : 01 00 93 F0 01 00 81 F0 01 00 98 F0 01 00 89 F0 -
D0 : 01 00 90 F0 01 00 9B F0 01 00 96 F0 01 00 7D F0 -
E0 : 01 00 95 F0 01 00 A3 F0 01 00 93 F0 01 00 8F F0 -
F0 : 01 00 A3 F0 01 00 8D F0 01 00 96 F0 01 00 B4 F0

I2C device found at address 0x51
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 80 F0 01 00 8F F0 01 00 90 F0 01 00 7F F0 -
10 : 01 00 79 F0 01 00 9D F0 01 00 95 F0 01 00 AF F0 -
20 : 01 00 82 F0 01 00 97 F0 01 00 88 F0 01 00 A6 F0 -
30 : 01 00 95 F0 01 00 A7 F0 01 00 94 F0 01 00 81 F0 -
40 : 01 00 9F F0 01 00 7A F0 01 00 99 F0 01 00 90 F0 -
50 : 01 00 90 F0 01 00 87 F0 01 00 02 F0 01 00 00 E1 -
60 : 11 F0 00 01 00 E1 53 F0 01 00 00 E1 02 F0 00 01 -
70 : 00 E1 01 F0 01 00 00 E1 01 F0 00 01 00 E1 01 F0 -
80 : 01 00 00 E1 2F F0 01 00 15 F0 00 01 00 E1 01 F0 -
90 : 01 00 00 E1 01 F0 00 01 00 E1 01 F0 01 00 00 E1 -
A0 : 01 F0 00 01 00 E1 01 F0 01 00 00 E1 05 F0 00 01 -
B0 : 00 E1 21 F0 01 00 00 E1 4E F0 01 00 A4 F0 01 00 -
C0 : A7 F0 01 00 A1 F0 01 00 98 F0 01 00 8B F0 01 00 -
D0 : A9 F0 01 00 88 F0 01 00 93 F0 01 00 7B F0 06 04 -
E0 : 00 01 00 E9 40 00 00 E1 00 40 00 E1 85 F0 01 00 -
F0 : 6E F0 01 00 79 F0 01 00 84 F0 01 00 47 F0 06 04

I2C device found at address 0x52
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 00 E8 06 04 01 E8 40 00 02 E1 00 40 02 E1 40 00 -
10 : 03 E1 00 40 03 E1 40 00 03 E1 00 40 03 E1 40 00 -
20 : 03 E1 00 40 03 E1 05 F0 06 04 40 00 05 E9 00 40 -
30 : 05 E1 40 00 06 E1 00 40 06 E1 40 00 08 E1 00 40 -
40 : 08 E1 40 00 08 E1 06 04 08 E8 00 40 08 E1 02 04 -
50 : 00 10 00 49 09 EE 02 44 00 10 00 49 09 EE 02 44 -
60 : 00 10 00 49 09 EE 02 44 00 10 00 49 09 EE 02 44 -
70 : 00 10 00 49 09 EE 00 D7 66 FE FE FE 00 00 00 09 -
80 : 00 00 00 00 00 00 37 F0 01 00 3B F0 01 00 3E F0 -
90 : 01 00 2D F0 01 00 43 F0 01 00 47 F0 01 00 40 F0 -
A0 : 01 00 3C F0 01 00 45 F0 01 00 3E F0 01 00 3A F0 -
B0 : 01 00 44 F0 01 00 44 F0 01 00 41 F0 01 00 41 F0 -
C0 : 01 00 42 F0 01 00 3B F0 01 00 3E F0 01 00 42 F0 -
D0 : 01 00 3D F0 01 00 3C F0 01 00 32 F0 01 00 39 F0 -
E0 : 01 00 3D F0 01 00 41 F0 01 00 42 F0 01 00 39 F0 -
F0 : 01 00 35 F0 01 00 40 F0 01 00 3A F0 01 00 42 F0

I2C device found at address 0x53
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 3F F0 01 00 3C F0 01 00 3A F0 01 00 3F F0 -
10 : 01 00 37 F0 01 00 43 F0 01 00 3D F0 01 00 3D F0 -
20 : 01 00 35 F0 01 00 3C F0 01 00 39 F0 01 00 35 F0 -
30 : 01 00 44 F0 01 00 40 F0 01 00 39 F0 01 00 4A F0 -
40 : 01 00 40 F0 01 00 3E F0 01 00 40 F0 01 00 3C F0 -
50 : 01 00 37 F0 01 00 3B F0 01 00 3E F0 01 00 46 F0 -
60 : 01 00 37 F0 01 00 3E F0 01 00 40 F0 01 00 3B F0 -
70 : 01 00 3F F0 01 00 40 F0 01 00 39 F0 01 00 3C F0 -
80 : 01 00 3E F0 01 00 3C F0 01 00 3F F0 01 00 3B F0 -
90 : 01 00 42 F0 01 00 39 F0 01 00 3E F0 01 00 47 F0 -
A0 : 01 00 41 F0 01 00 39 F0 01 00 3F F0 01 00 40 F0 -
B0 : 01 00 37 F0 01 00 47 F0 01 00 34 F0 01 00 39 F0 -
C0 : 01 00 42 F0 01 00 3B F0 01 00 35 F0 01 00 3F F0 -
D0 : 01 00 47 F0 01 00 3C F0 01 00 3D F0 01 00 42 F0 -
E0 : 01 00 4C F0 01 00 3A F0 01 00 3F F0 01 00 3C F0 -
F0 : 01 00 3F F0 01 00 35 F0 01 00 36 F0 01 00 3C F0

I2C device found at address 0x54
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 3E F0 01 00 3C F0 01 00 41 F0 01 00 39 F0 -
10 : 01 00 40 F0 01 00 35 F0 01 00 3D F0 01 00 42 F0 -
20 : 01 00 37 F0 01 00 34 F0 01 00 3D F0 01 00 3F F0 -
30 : 01 00 37 F0 01 00 42 F0 01 00 3D F0 01 00 34 F0 -
40 : 01 00 3B F0 01 00 43 F0 01 00 3E F0 01 00 43 F0 -
50 : 01 00 40 F0 01 00 3F F0 01 00 3E F0 01 00 34 F0 -
60 : 01 00 33 F0 01 00 35 F0 01 00 42 F0 01 00 3D F0 -
70 : 01 00 45 F0 01 00 37 F0 01 00 3C F0 01 00 33 F0 -
80 : 01 00 39 F0 01 00 33 F0 01 00 41 F0 01 00 37 F0 -
90 : 01 00 3C F0 01 00 3F F0 01 00 3B F0 01 00 37 F0 -
A0 : 01 00 41 F0 01 00 3F F0 01 00 43 F0 01 00 36 F0 -
B0 : 01 00 35 F0 01 00 3E F0 01 00 49 F0 01 00 47 F0 -
C0 : 01 00 35 F0 01 00 43 F0 01 00 3F F0 01 00 33 F0 -
D0 : 01 00 41 F0 01 00 36 F0 01 00 38 F0 01 00 47 F0 -
E0 : 01 00 3C F0 01 00 46 F0 01 00 4C F0 01 00 38 F0 -
F0 : 01 00 3E F0 01 00 40 F0 01 00 47 F0 01 00 3C F0

I2C device found at address 0x55
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 49 F0 01 00 3D F0 01 00 36 F0 01 00 3A F0 -
10 : 01 00 43 F0 01 00 45 F0 01 00 4E F0 01 00 60 F0 -
20 : 01 00 67 F0 01 00 6B F0 01 00 67 F0 01 00 6D F0 -
30 : 01 00 50 F0 01 00 64 F0 01 00 56 F0 01 00 5F F0 -
40 : 01 00 61 F0 01 00 5A F0 01 00 66 F0 01 00 62 F0 -
50 : 01 00 5F F0 01 00 64 F0 01 00 67 F0 01 00 55 F0 -
60 : 01 00 5B F0 01 00 67 F0 01 00 65 F0 01 00 5B F0 -
70 : 01 00 6B F0 01 00 67 F0 01 00 59 F0 01 00 61 F0 -
80 : 01 00 69 F0 01 00 5C F0 01 00 5E F0 01 00 66 F0 -
90 : 01 00 5A F0 01 00 6E F0 01 00 6D F0 01 00 5E F0 -
A0 : 01 00 5B F0 01 00 5A F0 01 00 69 F0 01 00 65 F0 -
B0 : 01 00 66 F0 01 00 6E F0 01 00 63 F0 01 00 60 F0 -
C0 : 01 00 6A F0 01 00 67 F0 01 00 60 F0 01 00 56 F0 -
D0 : 01 00 74 F0 01 00 64 F0 01 00 69 F0 01 00 64 F0 -
E0 : 01 00 51 F0 01 00 65 F0 01 00 5C F0 01 00 53 F0 -
F0 : 01 00 65 F0 01 00 5A F0 01 00 6A F0 01 00 57 F0

I2C device found at address 0x56
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 00 00 00 02 00 00 00 00 00 00 00 00 00 00 00 00 -
10 : 00 00 00 00 99 95 10 02 99 94 10 03 94 00 99 95 -
20 : 99 05 99 95 99 05 28 03 06 93 19 CE 00 00 00 00 -
30 : 00 00 00 00 00 00 27 03 03 24 03 03 11 27 18 00 -
40 : 00 0D 16 24 18 14 24 24 24 24 24 24 24 24 24 24 -
50 : FF FF FF FF FF FF FF FF 00 00 BC 00 02 01 01 00 -
60 : 00 00 00 00 00 07 BE 02 8D 04 7D 07 93 02 9B 04 -
70 : D2 08 D9 04 7C 73 80 00 00 00 00 01 10 00 00 34 -
80 : 28 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
90 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FF -
D0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
E0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
F0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

I2C device found at address 0x57
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 0F 0E D0 3C 1F 8C 75 0F 89 3C 78 03 40 40 05 2A -
10 : 01 00 13 00 18 81 84 00 00 00 00 00 00 00 00 00 -
20 : 00 8F 00 00 02 39 40 D6 C0 10 2B 24 03 03 26 64 -
30 : F8 F0 04 2A 0F F4 19 19 96 09 80 01 96 09 80 01 -
40 : 00 00 80 01 12 74 53 27 03 03 70 FF FF FF FF FF -
50 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
60 : FF 4E 04 C6 02 38 18 27 11 24 03 03 D0 74 98 4E -
70 : 04 00 D7 66 00 00 74 20 09 00 00 00 00 00 00 00 -
80 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 49 -
90 : 10 04 F4 15 FF FF F4 15 FF FF F4 15 FF FF F4 15 -
A0 : FF FF F4 15 FF FF F4 15 FF FF F4 15 FF FF F4 15 -
B0 : FF FF F4 15 FF FF F4 15 FF FF FF FF FF FF FF FF -
C0 : FF FF 71 C0 FF FF FF FF FF FF FF FF FF FF FF FF -
D0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
E0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
F0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

Done.

Scanning...

I2C device found at address 0x50
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 6A F0 01 00 6F F0 01 00 6D F0 01 00 60 F0 -
10 : 01 00 6F F0 01 00 60 F0 01 00 7A F0 01 00 67 F0 -
20 : 01 00 5E F0 01 00 6A F0 01 00 6B F0 01 00 55 F0 -
30 : 01 00 5E F0 01 00 63 F0 01 00 60 F0 01 00 60 F0 -
40 : 01 00 61 F0 01 00 6E F0 01 00 5E F0 01 00 6C F0 -
50 : 01 00 65 F0 01 00 62 F0 01 00 6C F0 01 00 69 F0 -
60 : 01 00 72 F0 01 00 9C F0 01 00 87 F0 01 00 8F F0 -
70 : 01 00 9A F0 01 00 A4 F0 01 00 93 F0 01 00 91 F0 -
80 : 01 00 A2 F0 01 00 A9 F0 01 00 95 F0 01 00 7E F0 -
90 : 01 00 98 F0 01 00 93 F0 01 00 8F F0 01 00 8A F0 -
A0 : 01 00 AA F0 01 00 98 F0 01 00 7E F0 01 00 86 F0 -
B0 : 01 00 92 F0 01 00 A6 F0 01 00 83 F0 01 00 7C F0 -
C0 : 01 00 93 F0 01 00 81 F0 01 00 98 F0 01 00 89 F0 -
D0 : 01 00 90 F0 01 00 9B F0 01 00 96 F0 01 00 7D F0 -
E0 : 01 00 95 F0 01 00 A3 F0 01 00 93 F0 01 00 8F F0 -
F0 : 01 00 A3 F0 01 00 8D F0 01 00 96 F0 01 00 B4 F0

I2C device found at address 0x51
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 80 F0 01 00 8F F0 01 00 90 F0 01 00 7F F0 -
10 : 01 00 79 F0 01 00 9D F0 01 00 95 F0 01 00 AF F0 -
20 : 01 00 82 F0 01 00 97 F0 01 00 88 F0 01 00 A6 F0 -
30 : 01 00 95 F0 01 00 A7 F0 01 00 94 F0 01 00 81 F0 -
40 : 01 00 9F F0 01 00 7A F0 01 00 99 F0 01 00 90 F0 -
50 : 01 00 90 F0 01 00 87 F0 01 00 02 F0 01 00 00 E1 -
60 : 11 F0 00 01 00 E1 53 F0 01 00 00 E1 02 F0 00 01 -
70 : 00 E1 01 F0 01 00 00 E1 01 F0 00 01 00 E1 01 F0 -
80 : 01 00 00 E1 2F F0 01 00 15 F0 00 01 00 E1 01 F0 -
90 : 01 00 00 E1 01 F0 00 01 00 E1 01 F0 01 00 00 E1 -
A0 : 01 F0 00 01 00 E1 01 F0 01 00 00 E1 05 F0 00 01 -
B0 : 00 E1 21 F0 01 00 00 E1 4E F0 01 00 A4 F0 01 00 -
C0 : A7 F0 01 00 A1 F0 01 00 98 F0 01 00 8B F0 01 00 -
D0 : A9 F0 01 00 88 F0 01 00 93 F0 01 00 7B F0 06 04 -
E0 : 00 01 00 E9 40 00 00 E1 00 40 00 E1 85 F0 01 00 -
F0 : 6E F0 01 00 79 F0 01 00 84 F0 01 00 47 F0 06 04

I2C device found at address 0x52
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 00 E8 06 04 01 E8 40 00 02 E1 00 40 02 E1 40 00 -
10 : 03 E1 00 40 03 E1 40 00 03 E1 00 40 03 E1 40 00 -
20 : 03 E1 00 40 03 E1 05 F0 06 04 40 00 05 E9 00 40 -
30 : 05 E1 40 00 06 E1 00 40 06 E1 40 00 08 E1 00 40 -
40 : 08 E1 40 00 08 E1 06 04 08 E8 00 40 08 E1 02 04 -
50 : 00 10 00 49 09 EE 02 44 00 10 00 49 09 EE 02 44 -
60 : 00 10 00 49 09 EE 02 44 00 10 00 49 09 EE 02 44 -
70 : 00 10 00 49 09 EE 00 D7 66 FE FE FE 00 00 00 09 -
80 : 00 00 00 00 00 00 37 F0 01 00 3B F0 01 00 3E F0 -
90 : 01 00 2D F0 01 00 43 F0 01 00 47 F0 01 00 40 F0 -
A0 : 01 00 3C F0 01 00 45 F0 01 00 3E F0 01 00 3A F0 -
B0 : 01 00 44 F0 01 00 44 F0 01 00 41 F0 01 00 41 F0 -
C0 : 01 00 42 F0 01 00 3B F0 01 00 3E F0 01 00 42 F0 -
D0 : 01 00 3D F0 01 00 3C F0 01 00 32 F0 01 00 39 F0 -
E0 : 01 00 3D F0 01 00 41 F0 01 00 42 F0 01 00 39 F0 -
F0 : 01 00 35 F0 01 00 40 F0 01 00 3A F0 01 00 42 F0

I2C device found at address 0x53
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 3F F0 01 00 3C F0 01 00 3A F0 01 00 3F F0 -
10 : 01 00 37 F0 01 00 43 F0 01 00 3D F0 01 00 3D F0 -
20 : 01 00 35 F0 01 00 3C F0 01 00 39 F0 01 00 35 F0 -
30 : 01 00 44 F0 01 00 40 F0 01 00 39 F0 01 00 4A F0 -
40 : 01 00 40 F0 01 00 3E F0 01 00 40 F0 01 00 3C F0 -
50 : 01 00 37 F0 01 00 3B F0 01 00 3E F0 01 00 46 F0 -
60 : 01 00 37 F0 01 00 3E F0 01 00 40 F0 01 00 3B F0 -
70 : 01 00 3F F0 01 00 40 F0 01 00 39 F0 01 00 3C F0 -
80 : 01 00 3E F0 01 00 3C F0 01 00 3F F0 01 00 3B F0 -
90 : 01 00 42 F0 01 00 39 F0 01 00 3E F0 01 00 47 F0 -
A0 : 01 00 41 F0 01 00 39 F0 01 00 3F F0 01 00 40 F0 -
B0 : 01 00 37 F0 01 00 47 F0 01 00 34 F0 01 00 39 F0 -
C0 : 01 00 42 F0 01 00 3B F0 01 00 35 F0 01 00 3F F0 -
D0 : 01 00 47 F0 01 00 3C F0 01 00 3D F0 01 00 42 F0 -
E0 : 01 00 4C F0 01 00 3A F0 01 00 3F F0 01 00 3C F0 -
F0 : 01 00 3F F0 01 00 35 F0 01 00 36 F0 01 00 3C F0

I2C device found at address 0x54
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 3E F0 01 00 3C F0 01 00 41 F0 01 00 39 F0 -
10 : 01 00 40 F0 01 00 35 F0 01 00 3D F0 01 00 42 F0 -
20 : 01 00 37 F0 01 00 34 F0 01 00 3D F0 01 00 3F F0 -
30 : 01 00 37 F0 01 00 42 F0 01 00 3D F0 01 00 34 F0 -
40 : 01 00 3B F0 01 00 43 F0 01 00 3E F0 01 00 43 F0 -
50 : 01 00 40 F0 01 00 3F F0 01 00 3E F0 01 00 34 F0 -
60 : 01 00 33 F0 01 00 35 F0 01 00 42 F0 01 00 3D F0 -
70 : 01 00 45 F0 01 00 37 F0 01 00 3C F0 01 00 33 F0 -
80 : 01 00 39 F0 01 00 33 F0 01 00 41 F0 01 00 37 F0 -
90 : 01 00 3C F0 01 00 3F F0 01 00 3B F0 01 00 37 F0 -
A0 : 01 00 41 F0 01 00 3F F0 01 00 43 F0 01 00 36 F0 -
B0 : 01 00 35 F0 01 00 3E F0 01 00 49 F0 01 00 47 F0 -
C0 : 01 00 35 F0 01 00 43 F0 01 00 3F F0 01 00 33 F0 -
D0 : 01 00 41 F0 01 00 36 F0 01 00 38 F0 01 00 47 F0 -
E0 : 01 00 3C F0 01 00 46 F0 01 00 4C F0 01 00 38 F0 -
F0 : 01 00 3E F0 01 00 40 F0 01 00 47 F0 01 00 3C F0

I2C device found at address 0x55
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 01 00 49 F0 01 00 3D F0 01 00 36 F0 01 00 3A F0 -
10 : 01 00 43 F0 01 00 45 F0 01 00 4E F0 01 00 60 F0 -
20 : 01 00 67 F0 01 00 6B F0 01 00 67 F0 01 00 6D F0 -
30 : 01 00 50 F0 01 00 64 F0 01 00 56 F0 01 00 5F F0 -
40 : 01 00 61 F0 01 00 5A F0 01 00 66 F0 01 00 62 F0 -
50 : 01 00 5F F0 01 00 64 F0 01 00 67 F0 01 00 55 F0 -
60 : 01 00 5B F0 01 00 67 F0 01 00 65 F0 01 00 5B F0 -
70 : 01 00 6B F0 01 00 67 F0 01 00 59 F0 01 00 61 F0 -
80 : 01 00 69 F0 01 00 5C F0 01 00 5E F0 01 00 66 F0 -
90 : 01 00 5A F0 01 00 6E F0 01 00 6D F0 01 00 5E F0 -
A0 : 01 00 5B F0 01 00 5A F0 01 00 69 F0 01 00 65 F0 -
B0 : 01 00 66 F0 01 00 6E F0 01 00 63 F0 01 00 60 F0 -
C0 : 01 00 6A F0 01 00 67 F0 01 00 60 F0 01 00 56 F0 -
D0 : 01 00 74 F0 01 00 64 F0 01 00 69 F0 01 00 64 F0 -
E0 : 01 00 51 F0 01 00 65 F0 01 00 5C F0 01 00 53 F0 -
F0 : 01 00 65 F0 01 00 5A F0 01 00 6A F0 01 00 57 F0

I2C device found at address 0x56
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 00 00 00 02 00 00 00 00 00 00 00 00 00 00 00 00 -
10 : 00 00 00 00 99 95 10 02 99 94 10 03 94 00 99 95 -
20 : 99 05 99 95 99 05 28 03 06 93 19 CE 00 00 00 00 -
30 : 00 00 00 00 00 00 27 03 03 24 03 03 11 27 18 00 -
40 : 00 0D 16 24 18 14 24 24 24 24 24 24 24 24 24 24 -
50 : FF FF FF FF FF FF FF FF 00 00 BC 00 02 01 01 00 -
60 : 00 00 00 00 00 07 BE 02 8D 04 7D 07 93 02 9B 04 -
70 : D2 08 D9 04 7C 73 80 00 00 00 00 01 10 00 00 34 -
80 : 28 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
90 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
A0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
B0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 -
C0 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FF -
D0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
E0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
F0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

I2C device found at address 0x57
-- : 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
-
00 : 0F 0E D0 3C 1F 8C 75 0F 89 3C 78 03 40 40 05 2A -
10 : 01 00 13 00 18 81 84 00 00 00 00 00 00 00 00 00 -
20 : 00 8F 00 00 02 39 40 D6 C0 10 2B 24 03 03 26 64 -
30 : F8 F0 04 2A 0F F4 19 19 96 09 80 01 96 09 80 01 -
40 : 00 00 80 01 12 74 53 27 03 03 70 FF FF FF FF FF -
50 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
60 : FF 4E 04 C6 02 38 18 27 11 24 03 03 D0 74 98 4E -
70 : 04 00 D7 66 00 00 74 20 09 00 00 00 00 00 00 00 -
80 : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 49 -
90 : 10 04 F4 15 FF FF F4 15 FF FF F4 15 FF FF F4 15 -
A0 : FF FF F4 15 FF FF F4 15 FF FF F4 15 FF FF F4 15 -
B0 : FF FF F4 15 FF FF F4 15 FF FF FF FF FF FF FF FF -
C0 : FF FF 71 C0 FF FF FF FF FF FF FF FF FF FF FF FF -
D0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
E0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF -
F0 : FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
cu: Got hangup signal

Disconnected.

ahull
Tue Mar 13, 2018 11:08 pm
I re-dumped the “broken” device, then I had a crack at dumping the second “working” device.

The interesting thing is that some data has changed in the “broken” one, suggesting that it is doing *something”.

First the “broken” one, this has no display, and may be deliberately locked out. The display does appear to be functional, since occasionally I can “crash” the thing and it displays gibberish. This is the device dumped in the previous post.

Again I dumped the EEPROM multiple times, just to be sure I was getting valid dumps. so the pages of the EEPROM start with device 0x50 and so forth.
I have changed the dumps so they are a linear 2K bytes total starting at 0x0000 to avoid confusion.


$ cu -l /dev/ttyACM3
Connected.

SOR/T SOR/R Dosimeter 24C16 EEROM dumper and updater.
Waiting for Device to POST and i2c Bus to settle.
Scanning...

I2C device found at address 0x50

0x0000 : 0x01 0x00 0x6A 0x00 0x04 0xC6 0x02 0x38 0x18 0x27 0x11 0x24 0x03 0x03 0xFF 0xFF
0x0010 : 0xFF 0xFF 0x00 0x00 0x00 0xFE 0xFE 0xFE 0xF7 0xAD 0x5A 0x6D 0x2E 0x6F 0xC0 0xAD
0x0020 : 0xFF 0x0B 0x5E 0xF0 0x01 0x00 0x6A 0xF0 0x01 0x00 0x6B 0xF0 0x01 0x00 0x55 0xF0
0x0030 : 0x01 0x00 0x5E 0xF0 0x01 0x00 0x63 0xF0 0x01 0x00 0x60 0xF0 0x01 0x00 0x60 0xF0
0x0040 : 0x01 0x00 0x61 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x5E 0xF0 0x01 0x00 0x6C 0xF0
0x0050 : 0x01 0x00 0x65 0xF0 0x01 0x00 0x62 0xF0 0x01 0x00 0x6C 0xF0 0x01 0x00 0x69 0xF0
0x0060 : 0x01 0x00 0x72 0xF0 0x01 0x00 0x9C 0xF0 0x01 0x00 0x87 0xF0 0x01 0x00 0x8F 0xF0
0x0070 : 0x01 0x00 0x9A 0xF0 0x01 0x00 0xA4 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x91 0xF0
0x0080 : 0x01 0x00 0xA2 0xF0 0x01 0x00 0xA9 0xF0 0x01 0x00 0x95 0xF0 0x01 0x00 0x7E 0xF0
0x0090 : 0x01 0x00 0x98 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x8F 0xF0 0x01 0x00 0x8A 0xF0
0x00A0 : 0x01 0x00 0xAA 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x7E 0xF0 0x01 0x00 0x86 0xF0
0x00B0 : 0x01 0x00 0x92 0xF0 0x01 0x00 0xA6 0xF0 0x01 0x00 0x83 0xF0 0x01 0x00 0x7C 0xF0
0x00C0 : 0x01 0x00 0x93 0xF0 0x01 0x00 0x81 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x89 0xF0
0x00D0 : 0x01 0x00 0x90 0xF0 0x01 0x00 0x9B 0xF0 0x01 0x00 0x96 0xF0 0x01 0x00 0x7D 0xF0
0x00E0 : 0x01 0x00 0x95 0xF0 0x01 0x00 0xA3 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x8F 0xF0
0x00F0 : 0x01 0x00 0xA3 0xF0 0x01 0x00 0x8D 0xF0 0x01 0x00 0x96 0xF0 0x01 0x00 0xB4 0xF0

I2C device found at address 0x51

0x0100 : 0x01 0x00 0x80 0xF0 0x01 0x00 0x8F 0xF0 0x01 0x00 0x90 0xF0 0x01 0x00 0x7F 0xF0
0x0110 : 0x01 0x00 0x79 0xF0 0x01 0x00 0x9D 0xF0 0x01 0x00 0x95 0xF0 0x01 0x00 0xAF 0xF0
0x0120 : 0x01 0x00 0x82 0xF0 0x01 0x00 0x97 0xF0 0x01 0x00 0x88 0xF0 0x01 0x00 0xA6 0xF0
0x0130 : 0x01 0x00 0x95 0xF0 0x01 0x00 0xA7 0xF0 0x01 0x00 0x94 0xF0 0x01 0x00 0x81 0xF0
0x0140 : 0x01 0x00 0x9F 0xF0 0x01 0x00 0x7A 0xF0 0x01 0x00 0x99 0xF0 0x01 0x00 0x90 0xF0
0x0150 : 0x01 0x00 0x90 0xF0 0x01 0x00 0x87 0xF0 0x01 0x00 0x02 0xF0 0x01 0x00 0x00 0xE1
0x0160 : 0x11 0xF0 0x00 0x01 0x00 0xE1 0x53 0xF0 0x01 0x00 0x00 0xE1 0x02 0xF0 0x00 0x01
0x0170 : 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0
0x0180 : 0x01 0x00 0x00 0xE1 0x2F 0xF0 0x01 0x00 0x15 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0
0x0190 : 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1
0x01A0 : 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x05 0xF0 0x00 0x01
0x01B0 : 0x00 0xE1 0x21 0xF0 0x01 0x00 0x00 0xE1 0x4E 0xF0 0x01 0x00 0xA4 0xF0 0x01 0x00
0x01C0 : 0xA7 0xF0 0x01 0x00 0xA1 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x8B 0xF0 0x01 0x00
0x01D0 : 0xA9 0xF0 0x01 0x00 0x88 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x7B 0xF0 0x06 0x04
0x01E0 : 0x00 0x01 0x00 0xE9 0x40 0x00 0x00 0xE1 0x00 0x40 0x00 0xE1 0x85 0xF0 0x01 0x00
0x01F0 : 0x6E 0xF0 0x01 0x00 0x79 0xF0 0x01 0x00 0x84 0xF0 0x01 0x00 0x47 0xF0 0x06 0x04

I2C device found at address 0x52

0x0200 : 0x00 0xE8 0x06 0x04 0x01 0xE8 0x40 0x00 0x02 0xE1 0x00 0x40 0x02 0xE1 0x40 0x00
0x0210 : 0x03 0xE1 0x00 0x40 0x03 0xE1 0x40 0x00 0x03 0xE1 0x00 0x40 0x03 0xE1 0x40 0x00
0x0220 : 0x03 0xE1 0x00 0x40 0x03 0xE1 0x05 0xF0 0x06 0x04 0x40 0x00 0x05 0xE9 0x00 0x40
0x0230 : 0x05 0xE1 0x40 0x00 0x06 0xE1 0x00 0x40 0x06 0xE1 0x40 0x00 0x08 0xE1 0x00 0x40
0x0240 : 0x08 0xE1 0x40 0x00 0x08 0xE1 0x06 0x04 0x08 0xE8 0x00 0x40 0x08 0xE1 0x02 0x04
0x0250 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44
0x0260 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44
0x0270 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x00 0xD7 0x66 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x09
0x0280 : 0x00 0x00 0x00 0x00 0x00 0x00 0x37 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0
0x0290 : 0x01 0x00 0x2D 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x40 0xF0
0x02A0 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x45 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3A 0xF0
0x02B0 : 0x01 0x00 0x44 0xF0 0x01 0x00 0x44 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x41 0xF0
0x02C0 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x42 0xF0
0x02D0 : 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x32 0xF0 0x01 0x00 0x39 0xF0
0x02E0 : 0x01 0x00 0x3D 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x39 0xF0
0x02F0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x42 0xF0

I2C device found at address 0x53

0x0300 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x3F 0xF0
0x0310 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3D 0xF0
0x0320 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x35 0xF0
0x0330 : 0x01 0x00 0x44 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x4A 0xF0
0x0340 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3C 0xF0
0x0350 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x46 0xF0
0x0360 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3B 0xF0
0x0370 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3C 0xF0
0x0380 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3B 0xF0
0x0390 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x47 0xF0
0x03A0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x40 0xF0
0x03B0 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x34 0xF0 0x01 0x00 0x39 0xF0
0x03C0 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x3F 0xF0
0x03D0 : 0x01 0x00 0x47 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x42 0xF0
0x03E0 : 0x01 0x00 0x4C 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3C 0xF0
0x03F0 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x3C 0xF0

I2C device found at address 0x54

0x0400 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x39 0xF0
0x0410 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x42 0xF0
0x0420 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x34 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3F 0xF0
0x0430 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x34 0xF0
0x0440 : 0x01 0x00 0x3B 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x43 0xF0
0x0450 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x34 0xF0
0x0460 : 0x01 0x00 0x33 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x3D 0xF0
0x0470 : 0x01 0x00 0x45 0xF0 0x01 0x00 0x37 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x33 0xF0
0x0480 : 0x01 0x00 0x39 0xF0 0x01 0x00 0x33 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x37 0xF0
0x0490 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x37 0xF0
0x04A0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x36 0xF0
0x04B0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x49 0xF0 0x01 0x00 0x47 0xF0
0x04C0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x33 0xF0
0x04D0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x38 0xF0 0x01 0x00 0x47 0xF0
0x04E0 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x46 0xF0 0x01 0x00 0x4C 0xF0 0x01 0x00 0x38 0xF0
0x04F0 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x3C 0xF0

I2C device found at address 0x55

0x0500 : 0x01 0x00 0x49 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x3A 0xF0
0x0510 : 0x01 0x00 0x43 0xF0 0x01 0x00 0x45 0xF0 0x01 0x00 0x4E 0xF0 0x01 0x00 0x60 0xF0
0x0520 : 0x01 0x00 0x67 0xF0 0x01 0x00 0x6B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x6D 0xF0
0x0530 : 0x01 0x00 0x50 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x56 0xF0 0x01 0x00 0x5F 0xF0
0x0540 : 0x01 0x00 0x61 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x66 0xF0 0x01 0x00 0x62 0xF0
0x0550 : 0x01 0x00 0x5F 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x55 0xF0
0x0560 : 0x01 0x00 0x5B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x65 0xF0 0x01 0x00 0x5B 0xF0
0x0570 : 0x01 0x00 0x6B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x59 0xF0 0x01 0x00 0x61 0xF0
0x0580 : 0x01 0x00 0x69 0xF0 0x01 0x00 0x5C 0xF0 0x01 0x00 0x5E 0xF0 0x01 0x00 0x66 0xF0
0x0590 : 0x01 0x00 0x5A 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x6D 0xF0 0x01 0x00 0x5E 0xF0
0x05A0 : 0x01 0x00 0x5B 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x69 0xF0 0x01 0x00 0x65 0xF0
0x05B0 : 0x01 0x00 0x66 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x63 0xF0 0x01 0x00 0x60 0xF0
0x05C0 : 0x01 0x00 0x6A 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x60 0xF0 0x01 0x00 0x56 0xF0
0x05D0 : 0x01 0x00 0x74 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x69 0xF0 0x01 0x00 0x64 0xF0
0x05E0 : 0x01 0x00 0x51 0xF0 0x01 0x00 0x65 0xF0 0x01 0x00 0x5C 0xF0 0x01 0x00 0x53 0xF0
0x05F0 : 0x01 0x00 0x65 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x6A 0xF0 0x01 0x00 0x57 0xF0

I2C device found at address 0x56

0x0600 : 0x45 0x18 0xC8 0x53 0xE2 0xC4 0x89 0x26 0xEE 0xC4 0x88 0x66 0xE2 0xC4 0x00 0x00
0x0610 : 0x00 0x00 0x00 0x00 0x99 0x95 0x10 0x02 0x99 0x94 0x10 0x03 0x94 0x00 0x99 0x95
0x0620 : 0x99 0x05 0x99 0x95 0x99 0x05 0x28 0x03 0x06 0x93 0x19 0xCE 0x00 0x00 0x00 0x00
0x0630 : 0x00 0x00 0x00 0x00 0x00 0x00 0x27 0x03 0x03 0x24 0x03 0x03 0x11 0x27 0x18 0x00
0x0640 : 0x00 0x0D 0x16 0x24 0x18 0x14 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24
0x0650 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0x00 0x00 0xBC 0x00 0x02 0x01 0x01 0x00
0x0660 : 0x00 0x00 0x00 0x00 0x00 0x07 0xBE 0x02 0x8D 0x04 0x7D 0x07 0x93 0x02 0x9B 0x04
0x0670 : 0xD2 0x08 0xD9 0x04 0x7C 0x73 0x80 0x00 0x00 0x00 0x00 0x01 0x10 0x00 0x00 0x34
0x0680 : 0x28 0x18 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0690 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06A0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06B0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06C0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0xFF
0x06D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

I2C device found at address 0x57

0x0700 : 0x0F 0x0E 0xD0 0x3C 0x1F 0x8C 0x75 0x0F 0x89 0x3C 0x78 0x03 0x40 0x40 0x05 0x2A
0x0710 : 0x01 0x00 0x13 0x00 0x18 0x81 0x84 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0720 : 0x00 0x8F 0xEE 0xD8 0x62 0xC2 0xC4 0xD6 0xC0 0x10 0x2B 0x24 0x03 0x03 0x26 0x64
0x0730 : 0xF8 0xF0 0x04 0x2A 0x0F 0xF4 0x19 0x19 0x96 0x09 0x80 0x01 0x96 0x09 0x80 0x01
0x0740 : 0x00 0x00 0x80 0x01 0x12 0x74 0x53 0x27 0x03 0x03 0x70 0xFF 0xFF 0xFF 0xFF 0xFF
0x0750 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x0760 : 0xFF 0x12 0x00 0x12 0x00 0xD1 0x7E 0x62 0xAD 0x6B 0xAB 0xF7 0x8B 0x74 0x98 0x76
0x0770 : 0x04 0x00 0xD7 0x66 0x00 0x00 0x00 0x00 0x09 0x00 0x72 0x08 0x00 0xD7 0x66 0xFE
0x0780 : 0xFE 0xFE 0x00 0x00 0x00 0x09 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0790 : 0x00 0x00 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15
0x07A0 : 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15
0x07B0 : 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07C0 : 0xFF 0xFF 0x71 0xC0 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

Done.

Scanning...

I2C device found at address 0x50

0x0000 : 0x01 0x00 0x6A 0x00 0x04 0xC6 0x02 0x38 0x18 0x27 0x11 0x24 0x03 0x03 0xFF 0xFF
0x0010 : 0xFF 0xFF 0x00 0x00 0x00 0xFE 0xFE 0xFE 0xF7 0xAD 0x5A 0x6D 0x2E 0x6F 0xC0 0xAD
0x0020 : 0xFF 0x0B 0x5E 0xF0 0x01 0x00 0x6A 0xF0 0x01 0x00 0x6B 0xF0 0x01 0x00 0x55 0xF0
0x0030 : 0x01 0x00 0x5E 0xF0 0x01 0x00 0x63 0xF0 0x01 0x00 0x60 0xF0 0x01 0x00 0x60 0xF0
0x0040 : 0x01 0x00 0x61 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x5E 0xF0 0x01 0x00 0x6C 0xF0
0x0050 : 0x01 0x00 0x65 0xF0 0x01 0x00 0x62 0xF0 0x01 0x00 0x6C 0xF0 0x01 0x00 0x69 0xF0
0x0060 : 0x01 0x00 0x72 0xF0 0x01 0x00 0x9C 0xF0 0x01 0x00 0x87 0xF0 0x01 0x00 0x8F 0xF0
0x0070 : 0x01 0x00 0x9A 0xF0 0x01 0x00 0xA4 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x91 0xF0
0x0080 : 0x01 0x00 0xA2 0xF0 0x01 0x00 0xA9 0xF0 0x01 0x00 0x95 0xF0 0x01 0x00 0x7E 0xF0
0x0090 : 0x01 0x00 0x98 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x8F 0xF0 0x01 0x00 0x8A 0xF0
0x00A0 : 0x01 0x00 0xAA 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x7E 0xF0 0x01 0x00 0x86 0xF0
0x00B0 : 0x01 0x00 0x92 0xF0 0x01 0x00 0xA6 0xF0 0x01 0x00 0x83 0xF0 0x01 0x00 0x7C 0xF0
0x00C0 : 0x01 0x00 0x93 0xF0 0x01 0x00 0x81 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x89 0xF0
0x00D0 : 0x01 0x00 0x90 0xF0 0x01 0x00 0x9B 0xF0 0x01 0x00 0x96 0xF0 0x01 0x00 0x7D 0xF0
0x00E0 : 0x01 0x00 0x95 0xF0 0x01 0x00 0xA3 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x8F 0xF0
0x00F0 : 0x01 0x00 0xA3 0xF0 0x01 0x00 0x8D 0xF0 0x01 0x00 0x96 0xF0 0x01 0x00 0xB4 0xF0

I2C device found at address 0x51

0x0100 : 0x01 0x00 0x80 0xF0 0x01 0x00 0x8F 0xF0 0x01 0x00 0x90 0xF0 0x01 0x00 0x7F 0xF0
0x0110 : 0x01 0x00 0x79 0xF0 0x01 0x00 0x9D 0xF0 0x01 0x00 0x95 0xF0 0x01 0x00 0xAF 0xF0
0x0120 : 0x01 0x00 0x82 0xF0 0x01 0x00 0x97 0xF0 0x01 0x00 0x88 0xF0 0x01 0x00 0xA6 0xF0
0x0130 : 0x01 0x00 0x95 0xF0 0x01 0x00 0xA7 0xF0 0x01 0x00 0x94 0xF0 0x01 0x00 0x81 0xF0
0x0140 : 0x01 0x00 0x9F 0xF0 0x01 0x00 0x7A 0xF0 0x01 0x00 0x99 0xF0 0x01 0x00 0x90 0xF0
0x0150 : 0x01 0x00 0x90 0xF0 0x01 0x00 0x87 0xF0 0x01 0x00 0x02 0xF0 0x01 0x00 0x00 0xE1
0x0160 : 0x11 0xF0 0x00 0x01 0x00 0xE1 0x53 0xF0 0x01 0x00 0x00 0xE1 0x02 0xF0 0x00 0x01
0x0170 : 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0
0x0180 : 0x01 0x00 0x00 0xE1 0x2F 0xF0 0x01 0x00 0x15 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0
0x0190 : 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1
0x01A0 : 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x05 0xF0 0x00 0x01
0x01B0 : 0x00 0xE1 0x21 0xF0 0x01 0x00 0x00 0xE1 0x4E 0xF0 0x01 0x00 0xA4 0xF0 0x01 0x00
0x01C0 : 0xA7 0xF0 0x01 0x00 0xA1 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x8B 0xF0 0x01 0x00
0x01D0 : 0xA9 0xF0 0x01 0x00 0x88 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x7B 0xF0 0x06 0x04
0x01E0 : 0x00 0x01 0x00 0xE9 0x40 0x00 0x00 0xE1 0x00 0x40 0x00 0xE1 0x85 0xF0 0x01 0x00
0x01F0 : 0x6E 0xF0 0x01 0x00 0x79 0xF0 0x01 0x00 0x84 0xF0 0x01 0x00 0x47 0xF0 0x06 0x04

I2C device found at address 0x52

0x0200 : 0x00 0xE8 0x06 0x04 0x01 0xE8 0x40 0x00 0x02 0xE1 0x00 0x40 0x02 0xE1 0x40 0x00
0x0210 : 0x03 0xE1 0x00 0x40 0x03 0xE1 0x40 0x00 0x03 0xE1 0x00 0x40 0x03 0xE1 0x40 0x00
0x0220 : 0x03 0xE1 0x00 0x40 0x03 0xE1 0x05 0xF0 0x06 0x04 0x40 0x00 0x05 0xE9 0x00 0x40
0x0230 : 0x05 0xE1 0x40 0x00 0x06 0xE1 0x00 0x40 0x06 0xE1 0x40 0x00 0x08 0xE1 0x00 0x40
0x0240 : 0x08 0xE1 0x40 0x00 0x08 0xE1 0x06 0x04 0x08 0xE8 0x00 0x40 0x08 0xE1 0x02 0x04
0x0250 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44
0x0260 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44
0x0270 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x00 0xD7 0x66 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x09
0x0280 : 0x00 0x00 0x00 0x00 0x00 0x00 0x37 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0
0x0290 : 0x01 0x00 0x2D 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x40 0xF0
0x02A0 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x45 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3A 0xF0
0x02B0 : 0x01 0x00 0x44 0xF0 0x01 0x00 0x44 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x41 0xF0
0x02C0 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x42 0xF0
0x02D0 : 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x32 0xF0 0x01 0x00 0x39 0xF0
0x02E0 : 0x01 0x00 0x3D 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x39 0xF0
0x02F0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x42 0xF0

I2C device found at address 0x53

0x0300 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x3F 0xF0
0x0310 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3D 0xF0
0x0320 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x35 0xF0
0x0330 : 0x01 0x00 0x44 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x4A 0xF0
0x0340 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3C 0xF0
0x0350 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x46 0xF0
0x0360 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3B 0xF0
0x0370 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3C 0xF0
0x0380 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3B 0xF0
0x0390 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x47 0xF0
0x03A0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x40 0xF0
0x03B0 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x34 0xF0 0x01 0x00 0x39 0xF0
0x03C0 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x3F 0xF0
0x03D0 : 0x01 0x00 0x47 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x42 0xF0
0x03E0 : 0x01 0x00 0x4C 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3C 0xF0
0x03F0 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x3C 0xF0

I2C device found at address 0x54

0x0400 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x39 0xF0
0x0410 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x42 0xF0
0x0420 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x34 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3F 0xF0
0x0430 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x34 0xF0
0x0440 : 0x01 0x00 0x3B 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x43 0xF0
0x0450 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x34 0xF0
0x0460 : 0x01 0x00 0x33 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x3D 0xF0
0x0470 : 0x01 0x00 0x45 0xF0 0x01 0x00 0x37 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x33 0xF0
0x0480 : 0x01 0x00 0x39 0xF0 0x01 0x00 0x33 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x37 0xF0
0x0490 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x37 0xF0
0x04A0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x36 0xF0
0x04B0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x49 0xF0 0x01 0x00 0x47 0xF0
0x04C0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x33 0xF0
0x04D0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x38 0xF0 0x01 0x00 0x47 0xF0
0x04E0 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x46 0xF0 0x01 0x00 0x4C 0xF0 0x01 0x00 0x38 0xF0
0x04F0 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x3C 0xF0

I2C device found at address 0x55

0x0500 : 0x01 0x00 0x49 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x3A 0xF0
0x0510 : 0x01 0x00 0x43 0xF0 0x01 0x00 0x45 0xF0 0x01 0x00 0x4E 0xF0 0x01 0x00 0x60 0xF0
0x0520 : 0x01 0x00 0x67 0xF0 0x01 0x00 0x6B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x6D 0xF0
0x0530 : 0x01 0x00 0x50 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x56 0xF0 0x01 0x00 0x5F 0xF0
0x0540 : 0x01 0x00 0x61 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x66 0xF0 0x01 0x00 0x62 0xF0
0x0550 : 0x01 0x00 0x5F 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x55 0xF0
0x0560 : 0x01 0x00 0x5B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x65 0xF0 0x01 0x00 0x5B 0xF0
0x0570 : 0x01 0x00 0x6B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x59 0xF0 0x01 0x00 0x61 0xF0
0x0580 : 0x01 0x00 0x69 0xF0 0x01 0x00 0x5C 0xF0 0x01 0x00 0x5E 0xF0 0x01 0x00 0x66 0xF0
0x0590 : 0x01 0x00 0x5A 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x6D 0xF0 0x01 0x00 0x5E 0xF0
0x05A0 : 0x01 0x00 0x5B 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x69 0xF0 0x01 0x00 0x65 0xF0
0x05B0 : 0x01 0x00 0x66 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x63 0xF0 0x01 0x00 0x60 0xF0
0x05C0 : 0x01 0x00 0x6A 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x60 0xF0 0x01 0x00 0x56 0xF0
0x05D0 : 0x01 0x00 0x74 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x69 0xF0 0x01 0x00 0x64 0xF0
0x05E0 : 0x01 0x00 0x51 0xF0 0x01 0x00 0x65 0xF0 0x01 0x00 0x5C 0xF0 0x01 0x00 0x53 0xF0
0x05F0 : 0x01 0x00 0x65 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x6A 0xF0 0x01 0x00 0x57 0xF0

I2C device found at address 0x56

0x0600 : 0x45 0x18 0xC8 0x53 0xE2 0xC4 0x89 0x26 0xEE 0xC4 0x88 0x66 0xE2 0xC4 0x00 0x00
0x0610 : 0x00 0x00 0x00 0x00 0x99 0x95 0x10 0x02 0x99 0x94 0x10 0x03 0x94 0x00 0x99 0x95
0x0620 : 0x99 0x05 0x99 0x95 0x99 0x05 0x28 0x03 0x06 0x93 0x19 0xCE 0x00 0x00 0x00 0x00
0x0630 : 0x00 0x00 0x00 0x00 0x00 0x00 0x27 0x03 0x03 0x24 0x03 0x03 0x11 0x27 0x18 0x00
0x0640 : 0x00 0x0D 0x16 0x24 0x18 0x14 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24
0x0650 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0x00 0x00 0xBC 0x00 0x02 0x01 0x01 0x00
0x0660 : 0x00 0x00 0x00 0x00 0x00 0x07 0xBE 0x02 0x8D 0x04 0x7D 0x07 0x93 0x02 0x9B 0x04
0x0670 : 0xD2 0x08 0xD9 0x04 0x7C 0x73 0x80 0x00 0x00 0x00 0x00 0x01 0x10 0x00 0x00 0x34
0x0680 : 0x28 0x18 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0690 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06A0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06B0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06C0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0xFF
0x06D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

I2C device found at address 0x57

0x0700 : 0x0F 0x0E 0xD0 0x3C 0x1F 0x8C 0x75 0x0F 0x89 0x3C 0x78 0x03 0x40 0x40 0x05 0x2A
0x0710 : 0x01 0x00 0x13 0x00 0x18 0x81 0x84 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0720 : 0x00 0x8F 0xEE 0xD8 0x62 0xC2 0xC4 0xD6 0xC0 0x10 0x2B 0x24 0x03 0x03 0x26 0x64
0x0730 : 0xF8 0xF0 0x04 0x2A 0x0F 0xF4 0x19 0x19 0x96 0x09 0x80 0x01 0x96 0x09 0x80 0x01
0x0740 : 0x00 0x00 0x80 0x01 0x12 0x74 0x53 0x27 0x03 0x03 0x70 0xFF 0xFF 0xFF 0xFF 0xFF
0x0750 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x0760 : 0xFF 0x12 0x00 0x12 0x00 0xD1 0x7E 0x62 0xAD 0x6B 0xAB 0xF7 0x8B 0x74 0x98 0x76
0x0770 : 0x04 0x00 0xD7 0x66 0x00 0x00 0x00 0x00 0x09 0x00 0x72 0x08 0x00 0xD7 0x66 0xFE
0x0780 : 0xFE 0xFE 0x00 0x00 0x00 0x09 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0790 : 0x00 0x00 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15
0x07A0 : 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15
0x07B0 : 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07C0 : 0xFF 0xFF 0x71 0xC0 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

Done.

Scanning...

I2C device found at address 0x50

0x0000 : 0x01 0x00 0x6A 0x00 0x04 0xC6 0x02 0x38 0x18 0x27 0x11 0x24 0x03 0x03 0xFF 0xFF
0x0010 : 0xFF 0xFF 0x00 0x00 0x00 0xFE 0xFE 0xFE 0xF7 0xAD 0x5A 0x6D 0x2E 0x6F 0xC0 0xAD
0x0020 : 0xFF 0x0B 0x5E 0xF0 0x01 0x00 0x6A 0xF0 0x01 0x00 0x6B 0xF0 0x01 0x00 0x55 0xF0
0x0030 : 0x01 0x00 0x5E 0xF0 0x01 0x00 0x63 0xF0 0x01 0x00 0x60 0xF0 0x01 0x00 0x60 0xF0
0x0040 : 0x01 0x00 0x61 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x5E 0xF0 0x01 0x00 0x6C 0xF0
0x0050 : 0x01 0x00 0x65 0xF0 0x01 0x00 0x62 0xF0 0x01 0x00 0x6C 0xF0 0x01 0x00 0x69 0xF0
0x0060 : 0x01 0x00 0x72 0xF0 0x01 0x00 0x9C 0xF0 0x01 0x00 0x87 0xF0 0x01 0x00 0x8F 0xF0
0x0070 : 0x01 0x00 0x9A 0xF0 0x01 0x00 0xA4 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x91 0xF0
0x0080 : 0x01 0x00 0xA2 0xF0 0x01 0x00 0xA9 0xF0 0x01 0x00 0x95 0xF0 0x01 0x00 0x7E 0xF0
0x0090 : 0x01 0x00 0x98 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x8F 0xF0 0x01 0x00 0x8A 0xF0
0x00A0 : 0x01 0x00 0xAA 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x7E 0xF0 0x01 0x00 0x86 0xF0
0x00B0 : 0x01 0x00 0x92 0xF0 0x01 0x00 0xA6 0xF0 0x01 0x00 0x83 0xF0 0x01 0x00 0x7C 0xF0
0x00C0 : 0x01 0x00 0x93 0xF0 0x01 0x00 0x81 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x89 0xF0
0x00D0 : 0x01 0x00 0x90 0xF0 0x01 0x00 0x9B 0xF0 0x01 0x00 0x96 0xF0 0x01 0x00 0x7D 0xF0
0x00E0 : 0x01 0x00 0x95 0xF0 0x01 0x00 0xA3 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x8F 0xF0
0x00F0 : 0x01 0x00 0xA3 0xF0 0x01 0x00 0x8D 0xF0 0x01 0x00 0x96 0xF0 0x01 0x00 0xB4 0xF0

I2C device found at address 0x51

0x0100 : 0x01 0x00 0x80 0xF0 0x01 0x00 0x8F 0xF0 0x01 0x00 0x90 0xF0 0x01 0x00 0x7F 0xF0
0x0110 : 0x01 0x00 0x79 0xF0 0x01 0x00 0x9D 0xF0 0x01 0x00 0x95 0xF0 0x01 0x00 0xAF 0xF0
0x0120 : 0x01 0x00 0x82 0xF0 0x01 0x00 0x97 0xF0 0x01 0x00 0x88 0xF0 0x01 0x00 0xA6 0xF0
0x0130 : 0x01 0x00 0x95 0xF0 0x01 0x00 0xA7 0xF0 0x01 0x00 0x94 0xF0 0x01 0x00 0x81 0xF0
0x0140 : 0x01 0x00 0x9F 0xF0 0x01 0x00 0x7A 0xF0 0x01 0x00 0x99 0xF0 0x01 0x00 0x90 0xF0
0x0150 : 0x01 0x00 0x90 0xF0 0x01 0x00 0x87 0xF0 0x01 0x00 0x02 0xF0 0x01 0x00 0x00 0xE1
0x0160 : 0x11 0xF0 0x00 0x01 0x00 0xE1 0x53 0xF0 0x01 0x00 0x00 0xE1 0x02 0xF0 0x00 0x01
0x0170 : 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0
0x0180 : 0x01 0x00 0x00 0xE1 0x2F 0xF0 0x01 0x00 0x15 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0
0x0190 : 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1
0x01A0 : 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x05 0xF0 0x00 0x01
0x01B0 : 0x00 0xE1 0x21 0xF0 0x01 0x00 0x00 0xE1 0x4E 0xF0 0x01 0x00 0xA4 0xF0 0x01 0x00
0x01C0 : 0xA7 0xF0 0x01 0x00 0xA1 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x8B 0xF0 0x01 0x00
0x01D0 : 0xA9 0xF0 0x01 0x00 0x88 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x7B 0xF0 0x06 0x04
0x01E0 : 0x00 0x01 0x00 0xE9 0x40 0x00 0x00 0xE1 0x00 0x40 0x00 0xE1 0x85 0xF0 0x01 0x00
0x01F0 : 0x6E 0xF0 0x01 0x00 0x79 0xF0 0x01 0x00 0x84 0xF0 0x01 0x00 0x47 0xF0 0x06 0x04

I2C device found at address 0x52

0x0200 : 0x00 0xE8 0x06 0x04 0x01 0xE8 0x40 0x00 0x02 0xE1 0x00 0x40 0x02 0xE1 0x40 0x00
0x0210 : 0x03 0xE1 0x00 0x40 0x03 0xE1 0x40 0x00 0x03 0xE1 0x00 0x40 0x03 0xE1 0x40 0x00
0x0220 : 0x03 0xE1 0x00 0x40 0x03 0xE1 0x05 0xF0 0x06 0x04 0x40 0x00 0x05 0xE9 0x00 0x40
0x0230 : 0x05 0xE1 0x40 0x00 0x06 0xE1 0x00 0x40 0x06 0xE1 0x40 0x00 0x08 0xE1 0x00 0x40
0x0240 : 0x08 0xE1 0x40 0x00 0x08 0xE1 0x06 0x04 0x08 0xE8 0x00 0x40 0x08 0xE1 0x02 0x04
0x0250 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44
0x0260 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44
0x0270 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x00 0xD7 0x66 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x09
0x0280 : 0x00 0x00 0x00 0x00 0x00 0x00 0x37 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0
0x0290 : 0x01 0x00 0x2D 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x40 0xF0
0x02A0 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x45 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3A 0xF0
0x02B0 : 0x01 0x00 0x44 0xF0 0x01 0x00 0x44 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x41 0xF0
0x02C0 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x42 0xF0
0x02D0 : 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x32 0xF0 0x01 0x00 0x39 0xF0
0x02E0 : 0x01 0x00 0x3D 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x39 0xF0
0x02F0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x42 0xF0

I2C device found at address 0x53

0x0300 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x3F 0xF0
0x0310 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3D 0xF0
0x0320 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x35 0xF0
0x0330 : 0x01 0x00 0x44 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x4A 0xF0
0x0340 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3C 0xF0
0x0350 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x46 0xF0
0x0360 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3B 0xF0
0x0370 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3C 0xF0
0x0380 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3B 0xF0
0x0390 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x47 0xF0
0x03A0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x40 0xF0
0x03B0 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x34 0xF0 0x01 0x00 0x39 0xF0
0x03C0 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x3F 0xF0
0x03D0 : 0x01 0x00 0x47 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x42 0xF0
0x03E0 : 0x01 0x00 0x4C 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3C 0xF0
0x03F0 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x3C 0xF0

I2C device found at address 0x54

0x0400 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x39 0xF0
0x0410 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x42 0xF0
0x0420 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x34 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3F 0xF0
0x0430 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x34 0xF0
0x0440 : 0x01 0x00 0x3B 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x43 0xF0
0x0450 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x34 0xF0
0x0460 : 0x01 0x00 0x33 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x3D 0xF0
0x0470 : 0x01 0x00 0x45 0xF0 0x01 0x00 0x37 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x33 0xF0
0x0480 : 0x01 0x00 0x39 0xF0 0x01 0x00 0x33 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x37 0xF0
0x0490 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x37 0xF0
0x04A0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x36 0xF0
0x04B0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x49 0xF0 0x01 0x00 0x47 0xF0
0x04C0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x33 0xF0
0x04D0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x38 0xF0 0x01 0x00 0x47 0xF0
0x04E0 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x46 0xF0 0x01 0x00 0x4C 0xF0 0x01 0x00 0x38 0xF0
0x04F0 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x3C 0xF0

I2C device found at address 0x55

0x0500 : 0x01 0x00 0x49 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x3A 0xF0
0x0510 : 0x01 0x00 0x43 0xF0 0x01 0x00 0x45 0xF0 0x01 0x00 0x4E 0xF0 0x01 0x00 0x60 0xF0
0x0520 : 0x01 0x00 0x67 0xF0 0x01 0x00 0x6B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x6D 0xF0
0x0530 : 0x01 0x00 0x50 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x56 0xF0 0x01 0x00 0x5F 0xF0
0x0540 : 0x01 0x00 0x61 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x66 0xF0 0x01 0x00 0x62 0xF0
0x0550 : 0x01 0x00 0x5F 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x55 0xF0
0x0560 : 0x01 0x00 0x5B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x65 0xF0 0x01 0x00 0x5B 0xF0
0x0570 : 0x01 0x00 0x6B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x59 0xF0 0x01 0x00 0x61 0xF0
0x0580 : 0x01 0x00 0x69 0xF0 0x01 0x00 0x5C 0xF0 0x01 0x00 0x5E 0xF0 0x01 0x00 0x66 0xF0
0x0590 : 0x01 0x00 0x5A 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x6D 0xF0 0x01 0x00 0x5E 0xF0
0x05A0 : 0x01 0x00 0x5B 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x69 0xF0 0x01 0x00 0x65 0xF0
0x05B0 : 0x01 0x00 0x66 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x63 0xF0 0x01 0x00 0x60 0xF0
0x05C0 : 0x01 0x00 0x6A 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x60 0xF0 0x01 0x00 0x56 0xF0
0x05D0 : 0x01 0x00 0x74 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x69 0xF0 0x01 0x00 0x64 0xF0
0x05E0 : 0x01 0x00 0x51 0xF0 0x01 0x00 0x65 0xF0 0x01 0x00 0x5C 0xF0 0x01 0x00 0x53 0xF0
0x05F0 : 0x01 0x00 0x65 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x6A 0xF0 0x01 0x00 0x57 0xF0

I2C device found at address 0x56

0x0600 : 0x45 0x18 0xC8 0x53 0xE2 0xC4 0x89 0x26 0xEE 0xC4 0x88 0x66 0xE2 0xC4 0x00 0x00
0x0610 : 0x00 0x00 0x00 0x00 0x99 0x95 0x10 0x02 0x99 0x94 0x10 0x03 0x94 0x00 0x99 0x95
0x0620 : 0x99 0x05 0x99 0x95 0x99 0x05 0x28 0x03 0x06 0x93 0x19 0xCE 0x00 0x00 0x00 0x00
0x0630 : 0x00 0x00 0x00 0x00 0x00 0x00 0x27 0x03 0x03 0x24 0x03 0x03 0x11 0x27 0x18 0x00
0x0640 : 0x00 0x0D 0x16 0x24 0x18 0x14 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24
0x0650 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0x00 0x00 0xBC 0x00 0x02 0x01 0x01 0x00
0x0660 : 0x00 0x00 0x00 0x00 0x00 0x07 0xBE 0x02 0x8D 0x04 0x7D 0x07 0x93 0x02 0x9B 0x04
0x0670 : 0xD2 0x08 0xD9 0x04 0x7C 0x73 0x80 0x00 0x00 0x00 0x00 0x01 0x10 0x00 0x00 0x34
0x0680 : 0x28 0x18 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0690 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06A0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06B0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06C0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0xFF
0x06D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

I2C device found at address 0x57

0x0700 : 0x0F 0x0E 0xD0 0x3C 0x1F 0x8C 0x75 0x0F 0x89 0x3C 0x78 0x03 0x40 0x40 0x05 0x2A
0x0710 : 0x01 0x00 0x13 0x00 0x18 0x81 0x84 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0720 : 0x00 0x8F 0xEE 0xD8 0x62 0xC2 0xC4 0xD6 0xC0 0x10 0x2B 0x24 0x03 0x03 0x26 0x64
0x0730 : 0xF8 0xF0 0x04 0x2A 0x0F 0xF4 0x19 0x19 0x96 0x09 0x80 0x01 0x96 0x09 0x80 0x01
0x0740 : 0x00 0x00 0x80 0x01 0x12 0x74 0x53 0x27 0x03 0x03 0x70 0xFF 0xFF 0xFF 0xFF 0xFF
0x0750 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x0760 : 0xFF 0x12 0x00 0x12 0x00 0xD1 0x7E 0x62 0xAD 0x6B 0xAB 0xF7 0x8B 0x74 0x98 0x76
0x0770 : 0x04 0x00 0xD7 0x66 0x00 0x00 0x00 0x00 0x09 0x00 0x72 0x08 0x00 0xD7 0x66 0xFE
0x0780 : 0xFE 0xFE 0x00 0x00 0x00 0x09 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0790 : 0x00 0x00 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15
0x07A0 : 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15
0x07B0 : 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07C0 : 0xFF 0xFF 0x71 0xC0 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

Done.

cu: Got hangup signal

Disconnected.

ahull
Tue Mar 13, 2018 11:08 pm
And now the “working” one.


$ cu -l /dev/ttyACM3
Connected.

SOR/T SOR/R Dosimeter 24C16 EEROM dumper and updater.
Waiting for Device to POST and i2c Bus to settle.
Scanning...

I2C device found at address 0x50

0x0000 : 0x00 0xE1 0xFF 0xF0 0xB6 0xF0 0x06 0x04 0x40 0x01 0x00 0xE9 0x00 0x40 0x00 0xE1
0x0010 : 0x58 0x48 0x03 0xE2 0x06 0x04 0x04 0xE8 0x15 0x14 0x59 0x58 0x10 0x00 0x05 0xE7
0x0020 : 0x58 0x59 0x05 0xE2 0x50 0x10 0x06 0xE1 0x10 0x50 0x06 0xE1 0x06 0x04 0x50 0x10
0x0030 : 0x06 0xE9 0x10 0x50 0x06 0xE1 0x78 0xF0 0x00 0x15 0x51 0x58 0x00 0x10 0x06 0xE7
0x0040 : 0x59 0x51 0x06 0xE2 0x58 0x59 0x07 0xE2 0x51 0x58 0x07 0xE2 0x59 0x51 0x07 0xE2
0x0050 : 0x58 0x59 0x08 0xE2 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x01 0xBA 0x68 0x5C
0x0060 : 0x00 0x58 0x02 0x3C 0x56 0x15 0x03 0x24 0x01 0x03 0xFF 0xFF 0xFF 0xFF 0x51 0x58
0x0070 : 0x00 0xE2 0x59 0x51 0x00 0xE2 0x58 0x59 0x08 0xE2 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0080 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0090 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00A0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00B0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00D0 : 0x0F 0xF0 0x06 0x04 0x00 0xE8 0x00 0x2A 0xE4 0xD6 0x00 0x6E 0x00 0x3C 0x10 0x53
0x00E0 : 0x08 0x04 0x12 0x09 0xFF 0xFF 0xFF 0xFF 0x41 0x19 0x0E 0x43 0x01 0xFB 0x51 0x58
0x00F0 : 0x01 0xE2 0x59 0x51 0x02 0xE2 0x26 0xF0 0x58 0x59 0x07 0xE2 0x40 0x00 0x08 0xE1

I2C device found at address 0x51

0x0100 : 0x00 0x40 0x09 0xE1 0x00 0x00 0x26 0x04 0x02 0xE8 0x00 0x1E 0x04 0x17 0x05 0x05
0x0110 : 0x06 0x97 0xFF 0xFF 0xFF 0xFF 0x51 0x58 0x01 0xE2 0x59 0x51 0x02 0xE2 0xFF 0xF0
0x0120 : 0xDC 0xF0 0x06 0x04 0x01 0xE8 0x06 0x04 0x06 0xE8 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0130 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0140 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x64 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0
0x0150 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x9F 0xF0 0x01 0x00
0x0160 : 0x02 0xE1 0x0F 0xF0 0x06 0x04 0x00 0x01 0x00 0xE9 0x01 0xF0 0x40 0x00 0x01 0xE1
0x0170 : 0x00 0x40 0x02 0xE1 0x23 0xF0 0x40 0x00 0x08 0xE1 0x00 0x40 0x09 0xE1 0x01 0xF0
0x0180 : 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0x1E 0xF0 0x40 0x00 0x05 0xE1 0x00 0x40
0x0190 : 0x06 0xE1 0x37 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x27 0xF0 0x40 0x00
0x01A0 : 0x00 0xE1 0x00 0x40 0x01 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x14 0xF0
0x01B0 : 0x40 0x00 0x05 0xE1 0x00 0x40 0x06 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x01C0 : 0xFF 0xF0 0x9F 0xF0 0x40 0x00 0x01 0xE1 0x00 0x40 0x02 0xE1 0xFF 0xF0 0xFF 0xF0
0x01D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x01E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xA7 0xF0 0x01 0x00 0xFF 0xF0
0x01F0 : 0xFF 0xF0 0xFF 0xF0 0x4C 0xF0 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0xFF 0xF0

I2C device found at address 0x52

0x0200 : 0xCE 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x04 0xF0 0x40 0x00 0x08 0xE1
0x0210 : 0x00 0x40 0x09 0xE1 0x09 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x40 0xF0
0x0220 : 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0x01 0xF0 0x40 0x00 0x06 0xE1 0x00 0x40
0x0230 : 0x07 0xE1 0x22 0xF0 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0xFF 0xF0 0xFF 0xF0
0x0240 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0250 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0260 : 0xFF 0xF0 0x5F 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0270 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0280 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xF2 0xF0
0x0290 : 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x6F 0xF0
0x02A0 : 0x40 0x00 0x03 0xE1 0x00 0x40 0x04 0xE1 0x05 0xF0 0x40 0x00 0x05 0xE1 0x00 0x40
0x02B0 : 0x06 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x02C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x02D0 : 0x18 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x02E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x58 0xF0
0x02F0 : 0x04 0x00 0x00 0xE4 0x03 0xF0 0x40 0x00 0x08 0xE1 0x00 0x40 0x09 0xE1 0x04 0xF0

I2C device found at address 0x53

0x0300 : 0x40 0x00 0x06 0xE1 0x00 0x40 0x07 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0310 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x71 0xF0 0x14 0x04 0x00 0xE4 0xFF 0xF0
0x0320 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0330 : 0xFF 0xF0 0xB1 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0340 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0350 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xC8 0xF0
0x0360 : 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0370 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0380 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x47 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0390 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03A0 : 0xFF 0xF0 0xFF 0xF0 0x83 0xF0 0x06 0x04 0x02 0xE8 0x02 0xF0 0x06 0x04 0x01 0x00
0x03B0 : 0x04 0xE9 0x06 0x44 0x04 0xE8 0x00 0xCB 0xAB 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x89
0x03C0 : 0x23 0x00 0x55 0x49 0x44 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03F0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0

I2C device found at address 0x54

0x0400 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0410 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0420 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0430 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0440 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0450 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0460 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0470 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0480 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0490 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04A0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04B0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04F0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0

I2C device found at address 0x55

0x0500 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0510 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0520 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0530 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0540 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0550 : 0x6A 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x0E 0xF0 0x01 0x00
0x0560 : 0x00 0xE1 0x03 0xF0 0x00 0x01 0x00 0xE1 0x04 0xF0 0x01 0x00 0x00 0xE1 0x9A 0xF0
0x0570 : 0x00 0x01 0x00 0xE1 0x96 0xF0 0x01 0x00 0x00 0xE1 0x08 0xF0 0x00 0x01 0x00 0xE1
0x0580 : 0x67 0xF0 0x01 0x00 0x00 0xE1 0x4C 0xF0 0x00 0x01 0x00 0xE1 0x3F 0xF0 0x01 0x00
0x0590 : 0x00 0xE1 0x55 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0
0x05A0 : 0x00 0x01 0x00 0xE1 0x1E 0xF0 0x01 0x00 0x00 0xE1 0x03 0xF0 0x00 0x01 0x00 0xE1
0x05B0 : 0x02 0xF0 0x01 0x00 0x00 0xE1 0x60 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00
0x05C0 : 0x00 0xE1 0x02 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x02 0xF0
0x05D0 : 0x00 0x01 0x00 0xE1 0x38 0xF0 0x01 0x00 0x00 0xE1 0xFF 0xF0 0x62 0xF0 0x00 0x01
0x05E0 : 0x00 0xE1 0x57 0xF0 0x01 0x00 0x00 0xE1 0x48 0xF0 0x00 0x01 0x00 0xE1 0x2A 0xF0
0x05F0 : 0x01 0x00 0x00 0xE1 0xFF 0xF0 0x04 0xF0 0x00 0x01 0x00 0xE1 0x17 0xF0 0x01 0x00

I2C device found at address 0x56

0x0600 : 0x40 0x59 0x14 0x06 0x00 0x00 0x00 0x00 0x80 0x23 0x00 0x44 0x50 0x44 0x00 0x00
0x0610 : 0x00 0x00 0x00 0x00 0x60 0x02 0x60 0x02 0x10 0x02 0x10 0x02 0x94 0x00 0x20 0x05
0x0620 : 0x10 0x05 0x20 0x04 0x10 0x04 0x0E 0x03 0x43 0x0E 0x19 0x41 0x00 0x00 0x00 0x00
0x0630 : 0x00 0x00 0x00 0x00 0x00 0x00 0x05 0x06 0x97 0x05 0x06 0x97 0x05 0x24 0x36 0x00
0x0640 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0650 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0x01 0x00 0x00 0xDE 0xAA 0x02 0x01 0x01 0x00
0x0660 : 0x00 0x00 0x00 0x00 0x00 0x07 0x87 0x02 0xE9 0x04 0x83 0x07 0x33 0x02 0xEB 0x04
0x0670 : 0xBF 0x08 0xA8 0x04 0x83 0x80 0x80 0x00 0x05 0x00 0x00 0x05 0x06 0x97 0x00 0x44
0x0680 : 0x02 0x73 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0690 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06A0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06B0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06C0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0xFF
0x06D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

I2C device found at address 0x57

0x0700 : 0xDF 0x0E 0xD0 0x3C 0x1F 0x8C 0x75 0x0F 0x89 0x0A 0x78 0x03 0x40 0x40 0x05 0x2A
0x0710 : 0x21 0x00 0x12 0x00 0xB8 0x81 0x4A 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0720 : 0x00 0x0F 0x00 0x00 0x02 0x92 0x10 0xD6 0x5B 0xA0 0x93 0x26 0x11 0x09 0x26 0x64
0x0730 : 0xF8 0xF0 0x05 0x2A 0x0F 0xF6 0x19 0x19 0x96 0x09 0x80 0x01 0x96 0x09 0x80 0x01
0x0740 : 0x00 0x00 0x80 0x01 0xFF 0xFF 0xFF 0x24 0x01 0x03 0x70 0xFF 0xFF 0xFF 0xFF 0xFF
0x0750 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x0760 : 0xFF 0xB6 0x06 0x16 0x02 0x1E 0x36 0x24 0x05 0x05 0x06 0x97 0xD0 0xC0 0xBA 0xB6
0x0770 : 0x06 0x00 0xCB 0xAB 0x00 0x00 0x00 0x80 0x04 0x05 0x00 0x00 0x00 0x00 0x00 0x00
0x0780 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x59
0x0790 : 0x14 0x04 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07A0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07B0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07C0 : 0xFF 0xA0 0xEB 0x7F 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

Done.

Scanning...

I2C device found at address 0x50

0x0000 : 0x00 0xE1 0xFF 0xF0 0xB6 0xF0 0x06 0x04 0x40 0x01 0x00 0xE9 0x00 0x40 0x00 0xE1
0x0010 : 0x58 0x48 0x03 0xE2 0x06 0x04 0x04 0xE8 0x15 0x14 0x59 0x58 0x10 0x00 0x05 0xE7
0x0020 : 0x58 0x59 0x05 0xE2 0x50 0x10 0x06 0xE1 0x10 0x50 0x06 0xE1 0x06 0x04 0x50 0x10
0x0030 : 0x06 0xE9 0x10 0x50 0x06 0xE1 0x78 0xF0 0x00 0x15 0x51 0x58 0x00 0x10 0x06 0xE7
0x0040 : 0x59 0x51 0x06 0xE2 0x58 0x59 0x07 0xE2 0x51 0x58 0x07 0xE2 0x59 0x51 0x07 0xE2
0x0050 : 0x58 0x59 0x08 0xE2 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x01 0xBA 0x68 0x5C
0x0060 : 0x00 0x58 0x02 0x3C 0x56 0x15 0x03 0x24 0x01 0x03 0xFF 0xFF 0xFF 0xFF 0x51 0x58
0x0070 : 0x00 0xE2 0x59 0x51 0x00 0xE2 0x58 0x59 0x08 0xE2 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0080 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0090 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00A0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00B0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00D0 : 0x0F 0xF0 0x06 0x04 0x00 0xE8 0x00 0x2A 0xE4 0xD6 0x00 0x6E 0x00 0x3C 0x10 0x53
0x00E0 : 0x08 0x04 0x12 0x09 0xFF 0xFF 0xFF 0xFF 0x41 0x19 0x0E 0x43 0x01 0xFB 0x51 0x58
0x00F0 : 0x01 0xE2 0x59 0x51 0x02 0xE2 0x26 0xF0 0x58 0x59 0x07 0xE2 0x40 0x00 0x08 0xE1

I2C device found at address 0x51

0x0100 : 0x00 0x40 0x09 0xE1 0x00 0x00 0x26 0x04 0x02 0xE8 0x00 0x1E 0x04 0x17 0x05 0x05
0x0110 : 0x06 0x97 0xFF 0xFF 0xFF 0xFF 0x51 0x58 0x01 0xE2 0x59 0x51 0x02 0xE2 0xFF 0xF0
0x0120 : 0xDC 0xF0 0x06 0x04 0x01 0xE8 0x06 0x04 0x06 0xE8 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0130 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0140 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x64 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0
0x0150 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x9F 0xF0 0x01 0x00
0x0160 : 0x02 0xE1 0x0F 0xF0 0x06 0x04 0x00 0x01 0x00 0xE9 0x01 0xF0 0x40 0x00 0x01 0xE1
0x0170 : 0x00 0x40 0x02 0xE1 0x23 0xF0 0x40 0x00 0x08 0xE1 0x00 0x40 0x09 0xE1 0x01 0xF0
0x0180 : 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0x1E 0xF0 0x40 0x00 0x05 0xE1 0x00 0x40
0x0190 : 0x06 0xE1 0x37 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x27 0xF0 0x40 0x00
0x01A0 : 0x00 0xE1 0x00 0x40 0x01 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x14 0xF0
0x01B0 : 0x40 0x00 0x05 0xE1 0x00 0x40 0x06 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x01C0 : 0xFF 0xF0 0x9F 0xF0 0x40 0x00 0x01 0xE1 0x00 0x40 0x02 0xE1 0xFF 0xF0 0xFF 0xF0
0x01D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x01E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xA7 0xF0 0x01 0x00 0xFF 0xF0
0x01F0 : 0xFF 0xF0 0xFF 0xF0 0x4C 0xF0 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0xFF 0xF0

I2C device found at address 0x52

0x0200 : 0xCE 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x04 0xF0 0x40 0x00 0x08 0xE1
0x0210 : 0x00 0x40 0x09 0xE1 0x09 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x40 0xF0
0x0220 : 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0x01 0xF0 0x40 0x00 0x06 0xE1 0x00 0x40
0x0230 : 0x07 0xE1 0x22 0xF0 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0xFF 0xF0 0xFF 0xF0
0x0240 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0250 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0260 : 0xFF 0xF0 0x5F 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0270 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0280 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xF2 0xF0
0x0290 : 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x6F 0xF0
0x02A0 : 0x40 0x00 0x03 0xE1 0x00 0x40 0x04 0xE1 0x05 0xF0 0x40 0x00 0x05 0xE1 0x00 0x40
0x02B0 : 0x06 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x02C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x02D0 : 0x18 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x02E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x58 0xF0
0x02F0 : 0x04 0x00 0x00 0xE4 0x03 0xF0 0x40 0x00 0x08 0xE1 0x00 0x40 0x09 0xE1 0x04 0xF0

I2C device found at address 0x53

0x0300 : 0x40 0x00 0x06 0xE1 0x00 0x40 0x07 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0310 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x71 0xF0 0x14 0x04 0x00 0xE4 0xFF 0xF0
0x0320 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0330 : 0xFF 0xF0 0xB1 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0340 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0350 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xC8 0xF0
0x0360 : 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0370 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0380 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x47 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0390 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03A0 : 0xFF 0xF0 0xFF 0xF0 0x83 0xF0 0x06 0x04 0x02 0xE8 0x02 0xF0 0x06 0x04 0x01 0x00
0x03B0 : 0x04 0xE9 0x06 0x44 0x04 0xE8 0x00 0xCB 0xAB 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x89
0x03C0 : 0x23 0x00 0x55 0x49 0x44 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03F0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0

I2C device found at address 0x54

0x0400 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0410 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0420 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0430 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0440 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0450 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0460 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0470 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0480 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0490 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04A0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04B0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04F0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0

I2C device found at address 0x55

0x0500 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0510 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0520 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0530 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0540 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0550 : 0x6A 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x0E 0xF0 0x01 0x00
0x0560 : 0x00 0xE1 0x03 0xF0 0x00 0x01 0x00 0xE1 0x04 0xF0 0x01 0x00 0x00 0xE1 0x9A 0xF0
0x0570 : 0x00 0x01 0x00 0xE1 0x96 0xF0 0x01 0x00 0x00 0xE1 0x08 0xF0 0x00 0x01 0x00 0xE1
0x0580 : 0x67 0xF0 0x01 0x00 0x00 0xE1 0x4C 0xF0 0x00 0x01 0x00 0xE1 0x3F 0xF0 0x01 0x00
0x0590 : 0x00 0xE1 0x55 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0
0x05A0 : 0x00 0x01 0x00 0xE1 0x1E 0xF0 0x01 0x00 0x00 0xE1 0x03 0xF0 0x00 0x01 0x00 0xE1
0x05B0 : 0x02 0xF0 0x01 0x00 0x00 0xE1 0x60 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00
0x05C0 : 0x00 0xE1 0x02 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x02 0xF0
0x05D0 : 0x00 0x01 0x00 0xE1 0x38 0xF0 0x01 0x00 0x00 0xE1 0xFF 0xF0 0x62 0xF0 0x00 0x01
0x05E0 : 0x00 0xE1 0x57 0xF0 0x01 0x00 0x00 0xE1 0x48 0xF0 0x00 0x01 0x00 0xE1 0x2A 0xF0
0x05F0 : 0x01 0x00 0x00 0xE1 0xFF 0xF0 0x04 0xF0 0x00 0x01 0x00 0xE1 0x17 0xF0 0x01 0x00

I2C device found at address 0x56

0x0600 : 0x40 0x59 0x14 0x06 0x00 0x00 0x00 0x00 0x80 0x23 0x00 0x44 0x50 0x44 0x00 0x00
0x0610 : 0x00 0x00 0x00 0x00 0x60 0x02 0x60 0x02 0x10 0x02 0x10 0x02 0x94 0x00 0x20 0x05
0x0620 : 0x10 0x05 0x20 0x04 0x10 0x04 0x0E 0x03 0x43 0x0E 0x19 0x41 0x00 0x00 0x00 0x00
0x0630 : 0x00 0x00 0x00 0x00 0x00 0x00 0x05 0x06 0x97 0x05 0x06 0x97 0x05 0x24 0x36 0x00
0x0640 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0650 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0x01 0x00 0x00 0xDE 0xAA 0x02 0x01 0x01 0x00
0x0660 : 0x00 0x00 0x00 0x00 0x00 0x07 0x87 0x02 0xE9 0x04 0x83 0x07 0x33 0x02 0xEB 0x04
0x0670 : 0xBF 0x08 0xA8 0x04 0x83 0x80 0x80 0x00 0x05 0x00 0x00 0x05 0x06 0x97 0x00 0x44
0x0680 : 0x02 0x73 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0690 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06A0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06B0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06C0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0xFF
0x06D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

I2C device found at address 0x57

0x0700 : 0xDF 0x0E 0xD0 0x3C 0x1F 0x8C 0x75 0x0F 0x89 0x0A 0x78 0x03 0x40 0x40 0x05 0x2A
0x0710 : 0x21 0x00 0x12 0x00 0xB8 0x81 0x4A 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0720 : 0x00 0x0F 0x00 0x00 0x02 0x92 0x10 0xD6 0x5B 0xA0 0x93 0x26 0x11 0x09 0x26 0x64
0x0730 : 0xF8 0xF0 0x05 0x2A 0x0F 0xF6 0x19 0x19 0x96 0x09 0x80 0x01 0x96 0x09 0x80 0x01
0x0740 : 0x00 0x00 0x80 0x01 0xFF 0xFF 0xFF 0x24 0x01 0x03 0x70 0xFF 0xFF 0xFF 0xFF 0xFF
0x0750 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x0760 : 0xFF 0xB6 0x06 0x16 0x02 0x1E 0x36 0x24 0x05 0x05 0x06 0x97 0xD0 0xC0 0xBA 0xB6
0x0770 : 0x06 0x00 0xCB 0xAB 0x00 0x00 0x00 0x80 0x04 0x05 0x00 0x00 0x00 0x00 0x00 0x00
0x0780 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x59
0x0790 : 0x14 0x04 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07A0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07B0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07C0 : 0xFF 0xA0 0xEB 0x7F 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

Done.

Scanning...

I2C device found at address 0x50

0x0000 : 0x00 0xE1 0xFF 0xF0 0xB6 0xF0 0x06 0x04 0x40 0x01 0x00 0xE9 0x00 0x40 0x00 0xE1
0x0010 : 0x58 0x48 0x03 0xE2 0x06 0x04 0x04 0xE8 0x15 0x14 0x59 0x58 0x10 0x00 0x05 0xE7
0x0020 : 0x58 0x59 0x05 0xE2 0x50 0x10 0x06 0xE1 0x10 0x50 0x06 0xE1 0x06 0x04 0x50 0x10
0x0030 : 0x06 0xE9 0x10 0x50 0x06 0xE1 0x78 0xF0 0x00 0x15 0x51 0x58 0x00 0x10 0x06 0xE7
0x0040 : 0x59 0x51 0x06 0xE2 0x58 0x59 0x07 0xE2 0x51 0x58 0x07 0xE2 0x59 0x51 0x07 0xE2
0x0050 : 0x58 0x59 0x08 0xE2 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x01 0xBA 0x68 0x5C
0x0060 : 0x00 0x58 0x02 0x3C 0x56 0x15 0x03 0x24 0x01 0x03 0xFF 0xFF 0xFF 0xFF 0x51 0x58
0x0070 : 0x00 0xE2 0x59 0x51 0x00 0xE2 0x58 0x59 0x08 0xE2 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0080 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0090 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00A0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00B0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x00D0 : 0x0F 0xF0 0x06 0x04 0x00 0xE8 0x00 0x2A 0xE4 0xD6 0x00 0x6E 0x00 0x3C 0x10 0x53
0x00E0 : 0x08 0x04 0x12 0x09 0xFF 0xFF 0xFF 0xFF 0x41 0x19 0x0E 0x43 0x01 0xFB 0x51 0x58
0x00F0 : 0x01 0xE2 0x59 0x51 0x02 0xE2 0x26 0xF0 0x58 0x59 0x07 0xE2 0x40 0x00 0x08 0xE1

I2C device found at address 0x51

0x0100 : 0x00 0x40 0x09 0xE1 0x00 0x00 0x26 0x04 0x02 0xE8 0x00 0x1E 0x04 0x17 0x05 0x05
0x0110 : 0x06 0x97 0xFF 0xFF 0xFF 0xFF 0x51 0x58 0x01 0xE2 0x59 0x51 0x02 0xE2 0xFF 0xF0
0x0120 : 0xDC 0xF0 0x06 0x04 0x01 0xE8 0x06 0x04 0x06 0xE8 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0130 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0140 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x64 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0
0x0150 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x9F 0xF0 0x01 0x00
0x0160 : 0x02 0xE1 0x0F 0xF0 0x06 0x04 0x00 0x01 0x00 0xE9 0x01 0xF0 0x40 0x00 0x01 0xE1
0x0170 : 0x00 0x40 0x02 0xE1 0x23 0xF0 0x40 0x00 0x08 0xE1 0x00 0x40 0x09 0xE1 0x01 0xF0
0x0180 : 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0x1E 0xF0 0x40 0x00 0x05 0xE1 0x00 0x40
0x0190 : 0x06 0xE1 0x37 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x27 0xF0 0x40 0x00
0x01A0 : 0x00 0xE1 0x00 0x40 0x01 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x14 0xF0
0x01B0 : 0x40 0x00 0x05 0xE1 0x00 0x40 0x06 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x01C0 : 0xFF 0xF0 0x9F 0xF0 0x40 0x00 0x01 0xE1 0x00 0x40 0x02 0xE1 0xFF 0xF0 0xFF 0xF0
0x01D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x01E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xA7 0xF0 0x01 0x00 0xFF 0xF0
0x01F0 : 0xFF 0xF0 0xFF 0xF0 0x4C 0xF0 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0xFF 0xF0

I2C device found at address 0x52

0x0200 : 0xCE 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x04 0xF0 0x40 0x00 0x08 0xE1
0x0210 : 0x00 0x40 0x09 0xE1 0x09 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x40 0xF0
0x0220 : 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0x01 0xF0 0x40 0x00 0x06 0xE1 0x00 0x40
0x0230 : 0x07 0xE1 0x22 0xF0 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0xFF 0xF0 0xFF 0xF0
0x0240 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0250 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0260 : 0xFF 0xF0 0x5F 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0270 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0280 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xF2 0xF0
0x0290 : 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x6F 0xF0
0x02A0 : 0x40 0x00 0x03 0xE1 0x00 0x40 0x04 0xE1 0x05 0xF0 0x40 0x00 0x05 0xE1 0x00 0x40
0x02B0 : 0x06 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x02C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x02D0 : 0x18 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x02E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x58 0xF0
0x02F0 : 0x04 0x00 0x00 0xE4 0x03 0xF0 0x40 0x00 0x08 0xE1 0x00 0x40 0x09 0xE1 0x04 0xF0

I2C device found at address 0x53

0x0300 : 0x40 0x00 0x06 0xE1 0x00 0x40 0x07 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0310 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x71 0xF0 0x14 0x04 0x00 0xE4 0xFF 0xF0
0x0320 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0330 : 0xFF 0xF0 0xB1 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0340 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0350 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xC8 0xF0
0x0360 : 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0370 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0380 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x47 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0390 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03A0 : 0xFF 0xF0 0xFF 0xF0 0x83 0xF0 0x06 0x04 0x02 0xE8 0x02 0xF0 0x06 0x04 0x01 0x00
0x03B0 : 0x04 0xE9 0x06 0x44 0x04 0xE8 0x00 0xCB 0xAB 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x89
0x03C0 : 0x23 0x00 0x55 0x49 0x44 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x03F0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0

I2C device found at address 0x54

0x0400 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0410 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0420 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0430 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0440 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0450 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0460 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0470 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0480 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0490 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04A0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04B0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x04F0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0

I2C device found at address 0x55

0x0500 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0510 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0520 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0530 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0540 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
0x0550 : 0x6A 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x0E 0xF0 0x01 0x00
0x0560 : 0x00 0xE1 0x03 0xF0 0x00 0x01 0x00 0xE1 0x04 0xF0 0x01 0x00 0x00 0xE1 0x9A 0xF0
0x0570 : 0x00 0x01 0x00 0xE1 0x96 0xF0 0x01 0x00 0x00 0xE1 0x08 0xF0 0x00 0x01 0x00 0xE1
0x0580 : 0x67 0xF0 0x01 0x00 0x00 0xE1 0x4C 0xF0 0x00 0x01 0x00 0xE1 0x3F 0xF0 0x01 0x00
0x0590 : 0x00 0xE1 0x55 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0
0x05A0 : 0x00 0x01 0x00 0xE1 0x1E 0xF0 0x01 0x00 0x00 0xE1 0x03 0xF0 0x00 0x01 0x00 0xE1
0x05B0 : 0x02 0xF0 0x01 0x00 0x00 0xE1 0x60 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00
0x05C0 : 0x00 0xE1 0x02 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x02 0xF0
0x05D0 : 0x00 0x01 0x00 0xE1 0x38 0xF0 0x01 0x00 0x00 0xE1 0xFF 0xF0 0x62 0xF0 0x00 0x01
0x05E0 : 0x00 0xE1 0x57 0xF0 0x01 0x00 0x00 0xE1 0x48 0xF0 0x00 0x01 0x00 0xE1 0x2A 0xF0
0x05F0 : 0x01 0x00 0x00 0xE1 0xFF 0xF0 0x04 0xF0 0x00 0x01 0x00 0xE1 0x17 0xF0 0x01 0x00

I2C device found at address 0x56

0x0600 : 0x40 0x59 0x14 0x06 0x00 0x00 0x00 0x00 0x80 0x23 0x00 0x44 0x50 0x44 0x00 0x00
0x0610 : 0x00 0x00 0x00 0x00 0x60 0x02 0x60 0x02 0x10 0x02 0x10 0x02 0x94 0x00 0x20 0x05
0x0620 : 0x10 0x05 0x20 0x04 0x10 0x04 0x0E 0x03 0x43 0x0E 0x19 0x41 0x00 0x00 0x00 0x00
0x0630 : 0x00 0x00 0x00 0x00 0x00 0x00 0x05 0x06 0x97 0x05 0x06 0x97 0x05 0x24 0x36 0x00
0x0640 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0650 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0x01 0x00 0x00 0xDE 0xAA 0x02 0x01 0x01 0x00
0x0660 : 0x00 0x00 0x00 0x00 0x00 0x07 0x87 0x02 0xE9 0x04 0x83 0x07 0x33 0x02 0xEB 0x04
0x0670 : 0xBF 0x08 0xA8 0x04 0x83 0x80 0x80 0x00 0x05 0x00 0x00 0x05 0x06 0x97 0x00 0x44
0x0680 : 0x02 0x73 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0690 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06A0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06B0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06C0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0xFF
0x06D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

I2C device found at address 0x57

0x0700 : 0xDF 0x0E 0xD0 0x3C 0x1F 0x8C 0x75 0x0F 0x89 0x0A 0x78 0x03 0x40 0x40 0x05 0x2A
0x0710 : 0x21 0x00 0x12 0x00 0xB8 0x81 0x4A 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x0720 : 0x00 0x0F 0x00 0x00 0x02 0x92 0x10 0xD6 0x5B 0xA0 0x93 0x26 0x11 0x09 0x26 0x64
0x0730 : 0xF8 0xF0 0x05 0x2A 0x0F 0xF6 0x19 0x19 0x96 0x09 0x80 0x01 0x96 0x09 0x80 0x01
0x0740 : 0x00 0x00 0x80 0x01 0xFF 0xFF 0xFF 0x24 0x01 0x03 0x70 0xFF 0xFF 0xFF 0xFF 0xFF
0x0750 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x0760 : 0xFF 0xB6 0x06 0x16 0x02 0x1E 0x36 0x24 0x05 0x05 0x06 0x97 0xD0 0xC0 0xBA 0xB6
0x0770 : 0x06 0x00 0xCB 0xAB 0x00 0x00 0x00 0x80 0x04 0x05 0x00 0x00 0x00 0x00 0x00 0x00
0x0780 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x59
0x0790 : 0x14 0x04 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07A0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07B0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07C0 : 0xFF 0xA0 0xEB 0x7F 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

Done.

cu: Got hangup signal

Disconnected.

ahull
Tue Mar 13, 2018 11:57 pm
Here is what is common between the two devices.

0x0690 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06A0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06B0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x06C0 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0xFF
0x06D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x06F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x0750 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07D0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07E0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
0x07F0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

ahull
Wed Mar 14, 2018 12:02 am
… and for completeness here is the diff.

$ diff Device1Scan1.txt Device2Scan1.txt
3,18c3,18
< 0x0000 : 0x00 0xE1 0xFF 0xF0 0xB6 0xF0 0x06 0x04 0x40 0x01 0x00 0xE9 0x00 0x40 0x00 0xE1
< 0x0010 : 0x58 0x48 0x03 0xE2 0x06 0x04 0x04 0xE8 0x15 0x14 0x59 0x58 0x10 0x00 0x05 0xE7
< 0x0020 : 0x58 0x59 0x05 0xE2 0x50 0x10 0x06 0xE1 0x10 0x50 0x06 0xE1 0x06 0x04 0x50 0x10
< 0x0030 : 0x06 0xE9 0x10 0x50 0x06 0xE1 0x78 0xF0 0x00 0x15 0x51 0x58 0x00 0x10 0x06 0xE7
< 0x0040 : 0x59 0x51 0x06 0xE2 0x58 0x59 0x07 0xE2 0x51 0x58 0x07 0xE2 0x59 0x51 0x07 0xE2
< 0x0050 : 0x58 0x59 0x08 0xE2 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x01 0xBA 0x68 0x5C
< 0x0060 : 0x00 0x58 0x02 0x3C 0x56 0x15 0x03 0x24 0x01 0x03 0xFF 0xFF 0xFF 0xFF 0x51 0x58
< 0x0070 : 0x00 0xE2 0x59 0x51 0x00 0xE2 0x58 0x59 0x08 0xE2 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0080 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0090 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x00A0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x00B0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x00C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x00D0 : 0x0F 0xF0 0x06 0x04 0x00 0xE8 0x00 0x2A 0xE4 0xD6 0x00 0x6E 0x00 0x3C 0x10 0x53
< 0x00E0 : 0x08 0x04 0x12 0x09 0xFF 0xFF 0xFF 0xFF 0x41 0x19 0x0E 0x43 0x01 0xFB 0x51 0x58
< 0x00F0 : 0x01 0xE2 0x59 0x51 0x02 0xE2 0x26 0xF0 0x58 0x59 0x07 0xE2 0x40 0x00 0x08 0xE1
---
> 0x0000 : 0x01 0x00 0x6A 0x00 0x04 0xC6 0x02 0x38 0x18 0x27 0x11 0x24 0x03 0x03 0xFF 0xFF
> 0x0010 : 0xFF 0xFF 0x00 0x00 0x00 0xFE 0xFE 0xFE 0xF7 0xAD 0x5A 0x6D 0x2E 0x6F 0xC0 0xAD
> 0x0020 : 0xFF 0x0B 0x5E 0xF0 0x01 0x00 0x6A 0xF0 0x01 0x00 0x6B 0xF0 0x01 0x00 0x55 0xF0
> 0x0030 : 0x01 0x00 0x5E 0xF0 0x01 0x00 0x63 0xF0 0x01 0x00 0x60 0xF0 0x01 0x00 0x60 0xF0
> 0x0040 : 0x01 0x00 0x61 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x5E 0xF0 0x01 0x00 0x6C 0xF0
> 0x0050 : 0x01 0x00 0x65 0xF0 0x01 0x00 0x62 0xF0 0x01 0x00 0x6C 0xF0 0x01 0x00 0x69 0xF0
> 0x0060 : 0x01 0x00 0x72 0xF0 0x01 0x00 0x9C 0xF0 0x01 0x00 0x87 0xF0 0x01 0x00 0x8F 0xF0
> 0x0070 : 0x01 0x00 0x9A 0xF0 0x01 0x00 0xA4 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x91 0xF0
> 0x0080 : 0x01 0x00 0xA2 0xF0 0x01 0x00 0xA9 0xF0 0x01 0x00 0x95 0xF0 0x01 0x00 0x7E 0xF0
> 0x0090 : 0x01 0x00 0x98 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x8F 0xF0 0x01 0x00 0x8A 0xF0
> 0x00A0 : 0x01 0x00 0xAA 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x7E 0xF0 0x01 0x00 0x86 0xF0
> 0x00B0 : 0x01 0x00 0x92 0xF0 0x01 0x00 0xA6 0xF0 0x01 0x00 0x83 0xF0 0x01 0x00 0x7C 0xF0
> 0x00C0 : 0x01 0x00 0x93 0xF0 0x01 0x00 0x81 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x89 0xF0
> 0x00D0 : 0x01 0x00 0x90 0xF0 0x01 0x00 0x9B 0xF0 0x01 0x00 0x96 0xF0 0x01 0x00 0x7D 0xF0
> 0x00E0 : 0x01 0x00 0x95 0xF0 0x01 0x00 0xA3 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x8F 0xF0
> 0x00F0 : 0x01 0x00 0xA3 0xF0 0x01 0x00 0x8D 0xF0 0x01 0x00 0x96 0xF0 0x01 0x00 0xB4 0xF0
22,37c22,37
< 0x0100 : 0x00 0x40 0x09 0xE1 0x00 0x00 0x26 0x04 0x02 0xE8 0x00 0x1E 0x04 0x17 0x05 0x05
< 0x0110 : 0x06 0x97 0xFF 0xFF 0xFF 0xFF 0x51 0x58 0x01 0xE2 0x59 0x51 0x02 0xE2 0xFF 0xF0
< 0x0120 : 0xDC 0xF0 0x06 0x04 0x01 0xE8 0x06 0x04 0x06 0xE8 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0130 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0140 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x64 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0
< 0x0150 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x9F 0xF0 0x01 0x00
< 0x0160 : 0x02 0xE1 0x0F 0xF0 0x06 0x04 0x00 0x01 0x00 0xE9 0x01 0xF0 0x40 0x00 0x01 0xE1
< 0x0170 : 0x00 0x40 0x02 0xE1 0x23 0xF0 0x40 0x00 0x08 0xE1 0x00 0x40 0x09 0xE1 0x01 0xF0
< 0x0180 : 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0x1E 0xF0 0x40 0x00 0x05 0xE1 0x00 0x40
< 0x0190 : 0x06 0xE1 0x37 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x27 0xF0 0x40 0x00
< 0x01A0 : 0x00 0xE1 0x00 0x40 0x01 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x14 0xF0
< 0x01B0 : 0x40 0x00 0x05 0xE1 0x00 0x40 0x06 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x01C0 : 0xFF 0xF0 0x9F 0xF0 0x40 0x00 0x01 0xE1 0x00 0x40 0x02 0xE1 0xFF 0xF0 0xFF 0xF0
< 0x01D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x01E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xA7 0xF0 0x01 0x00 0xFF 0xF0
< 0x01F0 : 0xFF 0xF0 0xFF 0xF0 0x4C 0xF0 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0xFF 0xF0
---
> 0x0100 : 0x01 0x00 0x80 0xF0 0x01 0x00 0x8F 0xF0 0x01 0x00 0x90 0xF0 0x01 0x00 0x7F 0xF0
> 0x0110 : 0x01 0x00 0x79 0xF0 0x01 0x00 0x9D 0xF0 0x01 0x00 0x95 0xF0 0x01 0x00 0xAF 0xF0
> 0x0120 : 0x01 0x00 0x82 0xF0 0x01 0x00 0x97 0xF0 0x01 0x00 0x88 0xF0 0x01 0x00 0xA6 0xF0
> 0x0130 : 0x01 0x00 0x95 0xF0 0x01 0x00 0xA7 0xF0 0x01 0x00 0x94 0xF0 0x01 0x00 0x81 0xF0
> 0x0140 : 0x01 0x00 0x9F 0xF0 0x01 0x00 0x7A 0xF0 0x01 0x00 0x99 0xF0 0x01 0x00 0x90 0xF0
> 0x0150 : 0x01 0x00 0x90 0xF0 0x01 0x00 0x87 0xF0 0x01 0x00 0x02 0xF0 0x01 0x00 0x00 0xE1
> 0x0160 : 0x11 0xF0 0x00 0x01 0x00 0xE1 0x53 0xF0 0x01 0x00 0x00 0xE1 0x02 0xF0 0x00 0x01
> 0x0170 : 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0
> 0x0180 : 0x01 0x00 0x00 0xE1 0x2F 0xF0 0x01 0x00 0x15 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0
> 0x0190 : 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1
> 0x01A0 : 0x01 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x05 0xF0 0x00 0x01
> 0x01B0 : 0x00 0xE1 0x21 0xF0 0x01 0x00 0x00 0xE1 0x4E 0xF0 0x01 0x00 0xA4 0xF0 0x01 0x00
> 0x01C0 : 0xA7 0xF0 0x01 0x00 0xA1 0xF0 0x01 0x00 0x98 0xF0 0x01 0x00 0x8B 0xF0 0x01 0x00
> 0x01D0 : 0xA9 0xF0 0x01 0x00 0x88 0xF0 0x01 0x00 0x93 0xF0 0x01 0x00 0x7B 0xF0 0x06 0x04
> 0x01E0 : 0x00 0x01 0x00 0xE9 0x40 0x00 0x00 0xE1 0x00 0x40 0x00 0xE1 0x85 0xF0 0x01 0x00
> 0x01F0 : 0x6E 0xF0 0x01 0x00 0x79 0xF0 0x01 0x00 0x84 0xF0 0x01 0x00 0x47 0xF0 0x06 0x04
41,56c41,56
< 0x0200 : 0xCE 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x04 0xF0 0x40 0x00 0x08 0xE1
< 0x0210 : 0x00 0x40 0x09 0xE1 0x09 0xF0 0x40 0x00 0x04 0xE1 0x00 0x40 0x05 0xE1 0x40 0xF0
< 0x0220 : 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0x01 0xF0 0x40 0x00 0x06 0xE1 0x00 0x40
< 0x0230 : 0x07 0xE1 0x22 0xF0 0x40 0x00 0x07 0xE1 0x00 0x40 0x08 0xE1 0xFF 0xF0 0xFF 0xF0
< 0x0240 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0250 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0260 : 0xFF 0xF0 0x5F 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0270 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0280 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xF2 0xF0
< 0x0290 : 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x6F 0xF0
< 0x02A0 : 0x40 0x00 0x03 0xE1 0x00 0x40 0x04 0xE1 0x05 0xF0 0x40 0x00 0x05 0xE1 0x00 0x40
< 0x02B0 : 0x06 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x02C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x02D0 : 0x18 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x02E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x58 0xF0
< 0x02F0 : 0x04 0x00 0x00 0xE4 0x03 0xF0 0x40 0x00 0x08 0xE1 0x00 0x40 0x09 0xE1 0x04 0xF0
---
> 0x0200 : 0x00 0xE8 0x06 0x04 0x01 0xE8 0x40 0x00 0x02 0xE1 0x00 0x40 0x02 0xE1 0x40 0x00
> 0x0210 : 0x03 0xE1 0x00 0x40 0x03 0xE1 0x40 0x00 0x03 0xE1 0x00 0x40 0x03 0xE1 0x40 0x00
> 0x0220 : 0x03 0xE1 0x00 0x40 0x03 0xE1 0x05 0xF0 0x06 0x04 0x40 0x00 0x05 0xE9 0x00 0x40
> 0x0230 : 0x05 0xE1 0x40 0x00 0x06 0xE1 0x00 0x40 0x06 0xE1 0x40 0x00 0x08 0xE1 0x00 0x40
> 0x0240 : 0x08 0xE1 0x40 0x00 0x08 0xE1 0x06 0x04 0x08 0xE8 0x00 0x40 0x08 0xE1 0x02 0x04
> 0x0250 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44
> 0x0260 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44 0x00 0x10 0x00 0x49 0x09 0xEE 0x02 0x44
> 0x0270 : 0x00 0x10 0x00 0x49 0x09 0xEE 0x00 0xD7 0x66 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x09
> 0x0280 : 0x00 0x00 0x00 0x00 0x00 0x00 0x37 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0
> 0x0290 : 0x01 0x00 0x2D 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x40 0xF0
> 0x02A0 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x45 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3A 0xF0
> 0x02B0 : 0x01 0x00 0x44 0xF0 0x01 0x00 0x44 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x41 0xF0
> 0x02C0 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x42 0xF0
> 0x02D0 : 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x32 0xF0 0x01 0x00 0x39 0xF0
> 0x02E0 : 0x01 0x00 0x3D 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x39 0xF0
> 0x02F0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x42 0xF0
60,75c60,75
< 0x0300 : 0x40 0x00 0x06 0xE1 0x00 0x40 0x07 0xE1 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0310 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x71 0xF0 0x14 0x04 0x00 0xE4 0xFF 0xF0
< 0x0320 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0330 : 0xFF 0xF0 0xB1 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0340 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0350 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xC8 0xF0
< 0x0360 : 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0370 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0380 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0x47 0xF0 0x01 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0390 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x03A0 : 0xFF 0xF0 0xFF 0xF0 0x83 0xF0 0x06 0x04 0x02 0xE8 0x02 0xF0 0x06 0x04 0x01 0x00
< 0x03B0 : 0x04 0xE9 0x06 0x44 0x04 0xE8 0x00 0xCB 0xAB 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x89
< 0x03C0 : 0x23 0x00 0x55 0x49 0x44 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x03D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x03E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x03F0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
---
> 0x0300 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x3F 0xF0
> 0x0310 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3D 0xF0
> 0x0320 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x35 0xF0
> 0x0330 : 0x01 0x00 0x44 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x4A 0xF0
> 0x0340 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3C 0xF0
> 0x0350 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x46 0xF0
> 0x0360 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x3B 0xF0
> 0x0370 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3C 0xF0
> 0x0380 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3B 0xF0
> 0x0390 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x47 0xF0
> 0x03A0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x39 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x40 0xF0
> 0x03B0 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x34 0xF0 0x01 0x00 0x39 0xF0
> 0x03C0 : 0x01 0x00 0x42 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x3F 0xF0
> 0x03D0 : 0x01 0x00 0x47 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x42 0xF0
> 0x03E0 : 0x01 0x00 0x4C 0xF0 0x01 0x00 0x3A 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3C 0xF0
> 0x03F0 : 0x01 0x00 0x3F 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x3C 0xF0
79,94c79,94
< 0x0400 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0410 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0420 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0430 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0440 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0450 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0460 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0470 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0480 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0490 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x04A0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x04B0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x04C0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x04D0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x04E0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x04F0 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
---
> 0x0400 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x39 0xF0
> 0x0410 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x42 0xF0
> 0x0420 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x34 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x3F 0xF0
> 0x0430 : 0x01 0x00 0x37 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x34 0xF0
> 0x0440 : 0x01 0x00 0x3B 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x43 0xF0
> 0x0450 : 0x01 0x00 0x40 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x34 0xF0
> 0x0460 : 0x01 0x00 0x33 0xF0 0x01 0x00 0x35 0xF0 0x01 0x00 0x42 0xF0 0x01 0x00 0x3D 0xF0
> 0x0470 : 0x01 0x00 0x45 0xF0 0x01 0x00 0x37 0xF0 0x01 0x00 0x3C 0xF0 0x01 0x00 0x33 0xF0
> 0x0480 : 0x01 0x00 0x39 0xF0 0x01 0x00 0x33 0xF0 0x01 0x00 0x41 0xF0 0x01 0x00 0x37 0xF0
> 0x0490 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x3B 0xF0 0x01 0x00 0x37 0xF0
> 0x04A0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x36 0xF0
> 0x04B0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x3E 0xF0 0x01 0x00 0x49 0xF0 0x01 0x00 0x47 0xF0
> 0x04C0 : 0x01 0x00 0x35 0xF0 0x01 0x00 0x43 0xF0 0x01 0x00 0x3F 0xF0 0x01 0x00 0x33 0xF0
> 0x04D0 : 0x01 0x00 0x41 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x38 0xF0 0x01 0x00 0x47 0xF0
> 0x04E0 : 0x01 0x00 0x3C 0xF0 0x01 0x00 0x46 0xF0 0x01 0x00 0x4C 0xF0 0x01 0x00 0x38 0xF0
> 0x04F0 : 0x01 0x00 0x3E 0xF0 0x01 0x00 0x40 0xF0 0x01 0x00 0x47 0xF0 0x01 0x00 0x3C 0xF0
98,113c98,113
< 0x0500 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0510 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0520 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0530 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0540 : 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
< 0x0550 : 0x6A 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0 0x00 0x01 0x00 0xE1 0x0E 0xF0 0x01 0x00
< 0x0560 : 0x00 0xE1 0x03 0xF0 0x00 0x01 0x00 0xE1 0x04 0xF0 0x01 0x00 0x00 0xE1 0x9A 0xF0
< 0x0570 : 0x00 0x01 0x00 0xE1 0x96 0xF0 0x01 0x00 0x00 0xE1 0x08 0xF0 0x00 0x01 0x00 0xE1
< 0x0580 : 0x67 0xF0 0x01 0x00 0x00 0xE1 0x4C 0xF0 0x00 0x01 0x00 0xE1 0x3F 0xF0 0x01 0x00
< 0x0590 : 0x00 0xE1 0x55 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x01 0xF0
< 0x05A0 : 0x00 0x01 0x00 0xE1 0x1E 0xF0 0x01 0x00 0x00 0xE1 0x03 0xF0 0x00 0x01 0x00 0xE1
< 0x05B0 : 0x02 0xF0 0x01 0x00 0x00 0xE1 0x60 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00
< 0x05C0 : 0x00 0xE1 0x02 0xF0 0x00 0x01 0x00 0xE1 0x01 0xF0 0x01 0x00 0x00 0xE1 0x02 0xF0
< 0x05D0 : 0x00 0x01 0x00 0xE1 0x38 0xF0 0x01 0x00 0x00 0xE1 0xFF 0xF0 0x62 0xF0 0x00 0x01
< 0x05E0 : 0x00 0xE1 0x57 0xF0 0x01 0x00 0x00 0xE1 0x48 0xF0 0x00 0x01 0x00 0xE1 0x2A 0xF0
< 0x05F0 : 0x01 0x00 0x00 0xE1 0xFF 0xF0 0x04 0xF0 0x00 0x01 0x00 0xE1 0x17 0xF0 0x01 0x00
---
> 0x0500 : 0x01 0x00 0x49 0xF0 0x01 0x00 0x3D 0xF0 0x01 0x00 0x36 0xF0 0x01 0x00 0x3A 0xF0
> 0x0510 : 0x01 0x00 0x43 0xF0 0x01 0x00 0x45 0xF0 0x01 0x00 0x4E 0xF0 0x01 0x00 0x60 0xF0
> 0x0520 : 0x01 0x00 0x67 0xF0 0x01 0x00 0x6B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x6D 0xF0
> 0x0530 : 0x01 0x00 0x50 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x56 0xF0 0x01 0x00 0x5F 0xF0
> 0x0540 : 0x01 0x00 0x61 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x66 0xF0 0x01 0x00 0x62 0xF0
> 0x0550 : 0x01 0x00 0x5F 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x55 0xF0
> 0x0560 : 0x01 0x00 0x5B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x65 0xF0 0x01 0x00 0x5B 0xF0
> 0x0570 : 0x01 0x00 0x6B 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x59 0xF0 0x01 0x00 0x61 0xF0
> 0x0580 : 0x01 0x00 0x69 0xF0 0x01 0x00 0x5C 0xF0 0x01 0x00 0x5E 0xF0 0x01 0x00 0x66 0xF0
> 0x0590 : 0x01 0x00 0x5A 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x6D 0xF0 0x01 0x00 0x5E 0xF0
> 0x05A0 : 0x01 0x00 0x5B 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x69 0xF0 0x01 0x00 0x65 0xF0
> 0x05B0 : 0x01 0x00 0x66 0xF0 0x01 0x00 0x6E 0xF0 0x01 0x00 0x63 0xF0 0x01 0x00 0x60 0xF0
> 0x05C0 : 0x01 0x00 0x6A 0xF0 0x01 0x00 0x67 0xF0 0x01 0x00 0x60 0xF0 0x01 0x00 0x56 0xF0
> 0x05D0 : 0x01 0x00 0x74 0xF0 0x01 0x00 0x64 0xF0 0x01 0x00 0x69 0xF0 0x01 0x00 0x64 0xF0
> 0x05E0 : 0x01 0x00 0x51 0xF0 0x01 0x00 0x65 0xF0 0x01 0x00 0x5C 0xF0 0x01 0x00 0x53 0xF0
> 0x05F0 : 0x01 0x00 0x65 0xF0 0x01 0x00 0x5A 0xF0 0x01 0x00 0x6A 0xF0 0x01 0x00 0x57 0xF0
117,125c117,125
< 0x0600 : 0x40 0x59 0x14 0x06 0x00 0x00 0x00 0x00 0x80 0x23 0x00 0x44 0x50 0x44 0x00 0x00
< 0x0610 : 0x00 0x00 0x00 0x00 0x60 0x02 0x60 0x02 0x10 0x02 0x10 0x02 0x94 0x00 0x20 0x05
< 0x0620 : 0x10 0x05 0x20 0x04 0x10 0x04 0x0E 0x03 0x43 0x0E 0x19 0x41 0x00 0x00 0x00 0x00
< 0x0630 : 0x00 0x00 0x00 0x00 0x00 0x00 0x05 0x06 0x97 0x05 0x06 0x97 0x05 0x24 0x36 0x00
< 0x0640 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
< 0x0650 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0x01 0x00 0x00 0xDE 0xAA 0x02 0x01 0x01 0x00
< 0x0660 : 0x00 0x00 0x00 0x00 0x00 0x07 0x87 0x02 0xE9 0x04 0x83 0x07 0x33 0x02 0xEB 0x04
< 0x0670 : 0xBF 0x08 0xA8 0x04 0x83 0x80 0x80 0x00 0x05 0x00 0x00 0x05 0x06 0x97 0x00 0x44
< 0x0680 : 0x02 0x73 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
---
> 0x0600 : 0x45 0x18 0xC8 0x53 0xE2 0xC4 0x89 0x26 0xEE 0xC4 0x88 0x66 0xE2 0xC4 0x00 0x00
> 0x0610 : 0x00 0x00 0x00 0x00 0x99 0x95 0x10 0x02 0x99 0x94 0x10 0x03 0x94 0x00 0x99 0x95
> 0x0620 : 0x99 0x05 0x99 0x95 0x99 0x05 0x28 0x03 0x06 0x93 0x19 0xCE 0x00 0x00 0x00 0x00
> 0x0630 : 0x00 0x00 0x00 0x00 0x00 0x00 0x27 0x03 0x03 0x24 0x03 0x03 0x11 0x27 0x18 0x00
> 0x0640 : 0x00 0x0D 0x16 0x24 0x18 0x14 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24 0x24
> 0x0650 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0x00 0x00 0xBC 0x00 0x02 0x01 0x01 0x00
> 0x0660 : 0x00 0x00 0x00 0x00 0x00 0x07 0xBE 0x02 0x8D 0x04 0x7D 0x07 0x93 0x02 0x9B 0x04
> 0x0670 : 0xD2 0x08 0xD9 0x04 0x7C 0x73 0x80 0x00 0x00 0x00 0x00 0x01 0x10 0x00 0x00 0x34
> 0x0680 : 0x28 0x18 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
136,140c136,140
< 0x0700 : 0xDF 0x0E 0xD0 0x3C 0x1F 0x8C 0x75 0x0F 0x89 0x0A 0x78 0x03 0x40 0x40 0x05 0x2A
< 0x0710 : 0x21 0x00 0x12 0x00 0xB8 0x81 0x4A 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
< 0x0720 : 0x00 0x0F 0x00 0x00 0x02 0x92 0x10 0xD6 0x5B 0xA0 0x93 0x26 0x11 0x09 0x26 0x64
< 0x0730 : 0xF8 0xF0 0x05 0x2A 0x0F 0xF6 0x19 0x19 0x96 0x09 0x80 0x01 0x96 0x09 0x80 0x01
< 0x0740 : 0x00 0x00 0x80 0x01 0xFF 0xFF 0xFF 0x24 0x01 0x03 0x70 0xFF 0xFF 0xFF 0xFF 0xFF
---
> 0x0700 : 0x0F 0x0E 0xD0 0x3C 0x1F 0x8C 0x75 0x0F 0x89 0x3C 0x78 0x03 0x40 0x40 0x05 0x2A
> 0x0710 : 0x01 0x00 0x13 0x00 0x18 0x81 0x84 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
> 0x0720 : 0x00 0x8F 0xEE 0xD8 0x62 0xC2 0xC4 0xD6 0xC0 0x10 0x2B 0x24 0x03 0x03 0x26 0x64
> 0x0730 : 0xF8 0xF0 0x04 0x2A 0x0F 0xF4 0x19 0x19 0x96 0x09 0x80 0x01 0x96 0x09 0x80 0x01
> 0x0740 : 0x00 0x00 0x80 0x01 0x12 0x74 0x53 0x27 0x03 0x03 0x70 0xFF 0xFF 0xFF 0xFF 0xFF
142,148c142,148
< 0x0760 : 0xFF 0xB6 0x06 0x16 0x02 0x1E 0x36 0x24 0x05 0x05 0x06 0x97 0xD0 0xC0 0xBA 0xB6
< 0x0770 : 0x06 0x00 0xCB 0xAB 0x00 0x00 0x00 0x80 0x04 0x05 0x00 0x00 0x00 0x00 0x00 0x00
< 0x0780 : 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x59
< 0x0790 : 0x14 0x04 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
< 0x07A0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
< 0x07B0 : 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
< 0x07C0 : 0xFF 0xA0 0xEB 0x7F 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
---
> 0x0760 : 0xFF 0x12 0x00 0x12 0x00 0xD1 0x7E 0x62 0xAD 0x6B 0xAB 0xF7 0x8B 0x74 0x98 0x76
> 0x0770 : 0x04 0x00 0xD7 0x66 0x00 0x00 0x00 0x00 0x09 0x00 0x72 0x08 0x00 0xD7 0x66 0xFE
> 0x0780 : 0xFE 0xFE 0x00 0x00 0x00 0x09 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
> 0x0790 : 0x00 0x00 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15
> 0x07A0 : 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15
> 0x07B0 : 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xF4 0x15 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF
> 0x07C0 : 0xFF 0xFF 0x71 0xC0 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF 0xFF

ahull
Wed Mar 14, 2018 11:48 am
More diffs.

I powered up the “working” unit and ran it for a short while, then powered it down, and dumped the EEPROM.

I then took the risk of reading the EEPROM while the thing was actually running.

Here is the diff between the two.

diff Dosimeter-working-rebooted1.txt Dosimeter-working-running1.txt
72,73c72,73
< 0x03C0 : 0x06 0x04 0x09 0xE8 0xFF 0xF0 0x00 0xCC 0xAF 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x89
< 0x03D0 : 0x23 0x00 0x10 0x33 0x45 0x00 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0 0xFF 0xF0
---
> 0x03C0 : 0x06 0x04 0x09 0xE8 0xFF 0xF0 0xDB 0xF0 0x40 0x00 0x05 0xE1 0x00 0x40 0x06 0xE1
> 0x03D0 : 0x00 0xCD 0x8A 0xFE 0xFE 0xFE 0x00 0x00 0x00 0x89 0x23 0x00 0x46 0x09 0x46 0x00

ahull
Wed Mar 14, 2018 2:09 pm
[zoomx – Mon Mar 12, 2018 10:10 am] –
:lol: :lol:

Edit:
in the radioactivity forum there is an user who ask what component cam be the light blue one in the daughter board. It seems a cap but I am not sure.


Its a diode, forward voltage is about 1.3V – I just probed it with my component tester. I suspect that little board has some sort of one wire chip or id tag chip under that epoxy blob. The blob might actually be another eeprom, but since the board only has four contacts, I doubt that.

EDIT: The reverse side of the board has four gold pads on it, and that blue device is probably across two of those pads, possibly providing reverse polarity protection. This could mean the other two pads are i2c which I suppose would not be too difficult to test.
Bear in mind that this board is entirely electrically isolated from the rest of the unit, so can only be energised and read/written using the four gold pads.

EDIT2: There also appear to be some unpopulated solder pads, suggesting that the board can be configured in different ways, perhaps this allows different addresses to be set, or pulls write protect up or down to allow external programming of the mystery blob.

ahull
Wed Mar 14, 2018 3:58 pm
I modified the sketch to spit out C++ arrays of the pages of the eerom. I figure this is going to be easier to work with if I want to clone one to the other.

// SOR/T SOR/R Dosimeter 24C16 EEROM dumper and updater.
// Waiting for Device to POST and i2c Bus to settle.
//Scanning...

// I2C device found at address 0x50
static const byte eeprom50[][0x10] =
{
{0x00,0xE1,0xFF,0xF0,0xB6,0xF0,0x06,0x04,0x40,0x01,0x00,0xE9,0x00,0x40,0x00,0xE1} //0x10
,{0x58,0x48,0x03,0xE2,0x06,0x04,0x04,0xE8,0x15,0x14,0x59,0x58,0x10,0x00,0x05,0xE7} //0x20
,{0x58,0x59,0x05,0xE2,0x50,0x10,0x06,0xE1,0x10,0x50,0x06,0xE1,0x06,0x04,0x50,0x10} //0x30
,{0x06,0xE9,0x10,0x50,0x06,0xE1,0x78,0xF0,0x00,0x15,0x51,0x58,0x00,0x10,0x06,0xE7} //0x40
,{0x59,0x51,0x06,0xE2,0x58,0x59,0x07,0xE2,0x51,0x58,0x07,0xE2,0x59,0x51,0x07,0xE2} //0x50
,{0x58,0x59,0x08,0xE2,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x01,0xBA,0x68,0x5C} //0x60
,{0x00,0x58,0x02,0x3C,0x56,0x15,0x03,0x24,0x01,0x03,0xFF,0xFF,0xFF,0xFF,0x51,0x58} //0x70
,{0x00,0xE2,0x59,0x51,0x00,0xE2,0x58,0x59,0x08,0xE2,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x90
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xA0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xB0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0x0F,0xF0,0x06,0x04,0x00,0xE8,0x00,0x2A,0xE4,0xD6,0x00,0x6E,0x00,0x3C,0x10,0x53} //0xE0
,{0x08,0x04,0x12,0x09,0xFF,0xFF,0xFF,0xFF,0x41,0x19,0x0E,0x43,0x01,0xFB,0x51,0x58} //0xF0
,{0x01,0xE2,0x59,0x51,0x02,0xE2,0x26,0xF0,0x58,0x59,0x07,0xE2,0x40,0x00,0x08,0xE1} //End of page 0x0
};

// I2C device found at address 0x51
static const byte eeprom51[][0x10] =
{
{0x00,0x40,0x09,0xE1,0x00,0x00,0x26,0x04,0x02,0xE8,0x00,0x1E,0x04,0x17,0x05,0x05} //0x10
,{0x06,0x97,0xFF,0xFF,0xFF,0xFF,0x51,0x58,0x01,0xE2,0x59,0x51,0x02,0xE2,0xFF,0xF0} //0x20
,{0xDC,0xF0,0x06,0x04,0x01,0xE8,0x06,0x04,0x06,0xE8,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x64,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x9F,0xF0,0x01,0x00} //0x60
,{0x02,0xE1,0x0F,0xF0,0x06,0x04,0x00,0x01,0x00,0xE9,0x01,0xF0,0x40,0x00,0x01,0xE1} //0x70
,{0x00,0x40,0x02,0xE1,0x23,0xF0,0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0x01,0xF0} //0x80
,{0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0x1E,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40} //0x90
,{0x06,0xE1,0x37,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x05,0xE1,0x27,0xF0,0x40,0x00} //0xA0
,{0x00,0xE1,0x00,0x40,0x01,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x14,0xF0} //0xB0
,{0x40,0x00,0x05,0xE1,0x00,0x40,0x06,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0x9F,0xF0,0x40,0x00,0x01,0xE1,0x00,0x40,0x02,0xE1,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xA7,0xF0,0x01,0x00,0xFF,0xF0} //0xF0
,{0xFF,0xF0,0xFF,0xF0,0x4C,0xF0,0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0xFF,0xF0} //End of page 0x1
};

// I2C device found at address 0x52
static const byte eeprom52[][0x10] =
{
{0xCE,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x05,0xE1,0x04,0xF0,0x40,0x00,0x08,0xE1} //0x10
,{0x00,0x40,0x09,0xE1,0x09,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x05,0xE1,0x40,0xF0} //0x20
,{0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0x01,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40} //0x30
,{0x07,0xE1,0x22,0xF0,0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x60
,{0xFF,0xF0,0x5F,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x70
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xF2,0xF0} //0x90
,{0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x6F,0xF0} //0xA0
,{0x40,0x00,0x03,0xE1,0x00,0x40,0x04,0xE1,0x05,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40} //0xB0
,{0x06,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0x18,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x58,0xF0} //0xF0
,{0x04,0x00,0x00,0xE4,0x03,0xF0,0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0x04,0xF0} //End of page 0x2
};

// I2C device found at address 0x53
static const byte eeprom53[][0x10] =
{
{0x40,0x00,0x06,0xE1,0x00,0x40,0x07,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x10
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x71,0xF0,0x14,0x04,0x00,0xE4,0xFF,0xF0} //0x20
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xB1,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xC8,0xF0} //0x60
,{0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x70
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x47,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x90
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xA0
,{0xFF,0xF0,0xFF,0xF0,0x83,0xF0,0x06,0x04,0x02,0xE8,0x02,0xF0,0x06,0x04,0x01,0x00} //0xB0
,{0x04,0xE9,0x06,0x44,0x04,0xE8,0x05,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40,0x06,0xE1} //0xC0
,{0x06,0x04,0x09,0xE8,0xFF,0xF0,0xDB,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40,0x06,0xE1} //0xD0
,{0x04,0xF0,0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0x00,0xD0,0x8B,0xFE,0xFE,0xFE,0x00,0x40,0x02,0xE1,0x05,0xF0,0x40,0x00,0x05,0xE1} //0xF0
,{0x00,0x40,0x06,0xE1,0x00,0xD1,0x72,0xFE,0xFE,0xFE,0x00,0x00,0x00,0x89,0x23,0x00} //End of page 0x3
};

// I2C device found at address 0x54
static const byte eeprom54[][0x10] =
{
{0x26,0x56,0x48,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x10
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x20
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x60
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x70
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x90
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xA0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xB0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xF0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //End of page 0x4
};

// I2C device found at address 0x55
static const byte eeprom55[][0x10] =
{
{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x10
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x20
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0x6A,0xF0,0x01,0x00,0x00,0xE1,0x01,0xF0,0x00,0x01,0x00,0xE1,0x0E,0xF0,0x01,0x00} //0x60
,{0x00,0xE1,0x03,0xF0,0x00,0x01,0x00,0xE1,0x04,0xF0,0x01,0x00,0x00,0xE1,0x9A,0xF0} //0x70
,{0x00,0x01,0x00,0xE1,0x96,0xF0,0x01,0x00,0x00,0xE1,0x08,0xF0,0x00,0x01,0x00,0xE1} //0x80
,{0x67,0xF0,0x01,0x00,0x00,0xE1,0x4C,0xF0,0x00,0x01,0x00,0xE1,0x3F,0xF0,0x01,0x00} //0x90
,{0x00,0xE1,0x55,0xF0,0x00,0x01,0x00,0xE1,0x01,0xF0,0x01,0x00,0x00,0xE1,0x01,0xF0} //0xA0
,{0x00,0x01,0x00,0xE1,0x1E,0xF0,0x01,0x00,0x00,0xE1,0x03,0xF0,0x00,0x01,0x00,0xE1} //0xB0
,{0x02,0xF0,0x01,0x00,0x00,0xE1,0x60,0xF0,0x00,0x01,0x00,0xE1,0x01,0xF0,0x01,0x00} //0xC0
,{0x00,0xE1,0x02,0xF0,0x00,0x01,0x00,0xE1,0x01,0xF0,0x01,0x00,0x00,0xE1,0x02,0xF0} //0xD0
,{0x00,0x01,0x00,0xE1,0x38,0xF0,0x01,0x00,0x00,0xE1,0xFF,0xF0,0x62,0xF0,0x00,0x01} //0xE0
,{0x00,0xE1,0x57,0xF0,0x01,0x00,0x00,0xE1,0x48,0xF0,0x00,0x01,0x00,0xE1,0x2A,0xF0} //0xF0
,{0x01,0x00,0x00,0xE1,0xFF,0xF0,0x04,0xF0,0x00,0x01,0x00,0xE1,0x17,0xF0,0x01,0x00} //End of page 0x5
};

// I2C device found at address 0x56
static const byte eeprom56[][0x10] =
{
{0x40,0x59,0x14,0x06,0x00,0x00,0x00,0x00,0x80,0x23,0x00,0x48,0x56,0x24,0x00,0x00} //0x10
,{0x00,0x00,0x00,0x00,0x60,0x02,0x60,0x02,0x10,0x02,0x10,0x02,0x94,0x00,0x20,0x05} //0x20
,{0x10,0x05,0x20,0x04,0x10,0x04,0x0E,0x03,0x43,0x0E,0x19,0x41,0x00,0x00,0x00,0x00} //0x30
,{0x00,0x00,0x00,0x00,0x00,0x00,0x05,0x06,0x97,0x05,0x06,0x97,0x05,0x24,0x36,0x00} //0x40
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x50
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x01,0x00,0xF3,0xDE,0xAA,0x02,0x01,0x01,0x00} //0x60
,{0x00,0x00,0x00,0x00,0x00,0x07,0x87,0x02,0xE9,0x04,0x83,0x07,0x33,0x02,0xEB,0x04} //0x70
,{0xBF,0x08,0xA8,0x04,0x83,0x80,0x80,0x00,0x05,0x00,0x00,0x05,0x06,0x97,0x00,0x44} //0x80
,{0x02,0x73,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x90
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0xA0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0xB0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0xC0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF} //0xD0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xE0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xF0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x6
};

// I2C device found at address 0x57
static const byte eeprom57[][0x10] =
{
{0xDF,0x0E,0xD0,0x3C,0x1F,0x8C,0x75,0x0F,0x89,0x0A,0x78,0x03,0x40,0x40,0x05,0x2A} //0x10
,{0x21,0x00,0x12,0x00,0xB8,0x81,0x4A,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x20
,{0x00,0x0F,0x00,0x00,0x02,0x92,0x10,0xD6,0x5B,0xA0,0x93,0x26,0x11,0x09,0x26,0x64} //0x30
,{0xF8,0xF0,0x05,0x2A,0x0F,0xF6,0x19,0x19,0x96,0x09,0x80,0x01,0x96,0x09,0x80,0x01} //0x40
,{0x00,0x00,0x80,0x01,0xFF,0xFF,0xFF,0x24,0x01,0x03,0x70,0xFF,0xFF,0xFF,0xFF,0xFF} //0x50
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x60
,{0xFF,0xEA,0x06,0x16,0x02,0x1E,0x36,0x24,0x05,0x05,0x06,0x97,0xD0,0xC0,0xBA,0xEA} //0x70
,{0x06,0x00,0xD1,0x6D,0x00,0x00,0x00,0x80,0x04,0x05,0x00,0x00,0x00,0x00,0x00,0x00} //0x80
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x59} //0x90
,{0x14,0x04,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xA0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xB0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xC0
,{0xFF,0xA0,0xEB,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xD0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xE0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xF0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x7
};

//Done.

//Scanning...

// I2C device found at address 0x50
static const byte eeprom50[][0x10] =
{
{0x00,0xE1,0xFF,0xF0,0xB6,0xF0,0x06,0x04,0x40,0x01,0x00,0xE9,0x00,0x40,0x00,0xE1} //0x10
,{0x58,0x48,0x03,0xE2,0x06,0x04,0x04,0xE8,0x15,0x14,0x59,0x58,0x10,0x00,0x05,0xE7} //0x20
,{0x58,0x59,0x05,0xE2,0x50,0x10,0x06,0xE1,0x10,0x50,0x06,0xE1,0x06,0x04,0x50,0x10} //0x30
,{0x06,0xE9,0x10,0x50,0x06,0xE1,0x78,0xF0,0x00,0x15,0x51,0x58,0x00,0x10,0x06,0xE7} //0x40
,{0x59,0x51,0x06,0xE2,0x58,0x59,0x07,0xE2,0x51,0x58,0x07,0xE2,0x59,0x51,0x07,0xE2} //0x50
,{0x58,0x59,0x08,0xE2,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x01,0xBA,0x68,0x5C} //0x60
,{0x00,0x58,0x02,0x3C,0x56,0x15,0x03,0x24,0x01,0x03,0xFF,0xFF,0xFF,0xFF,0x51,0x58} //0x70
,{0x00,0xE2,0x59,0x51,0x00,0xE2,0x58,0x59,0x08,0xE2,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x90
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xA0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xB0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0x0F,0xF0,0x06,0x04,0x00,0xE8,0x00,0x2A,0xE4,0xD6,0x00,0x6E,0x00,0x3C,0x10,0x53} //0xE0
,{0x08,0x04,0x12,0x09,0xFF,0xFF,0xFF,0xFF,0x41,0x19,0x0E,0x43,0x01,0xFB,0x51,0x58} //0xF0
,{0x01,0xE2,0x59,0x51,0x02,0xE2,0x26,0xF0,0x58,0x59,0x07,0xE2,0x40,0x00,0x08,0xE1} //End of page 0x0
};

// I2C device found at address 0x51
static const byte eeprom51[][0x10] =
{
{0x00,0x40,0x09,0xE1,0x00,0x00,0x26,0x04,0x02,0xE8,0x00,0x1E,0x04,0x17,0x05,0x05} //0x10
,{0x06,0x97,0xFF,0xFF,0xFF,0xFF,0x51,0x58,0x01,0xE2,0x59,0x51,0x02,0xE2,0xFF,0xF0} //0x20
,{0xDC,0xF0,0x06,0x04,0x01,0xE8,0x06,0x04,0x06,0xE8,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x64,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x9F,0xF0,0x01,0x00} //0x60
,{0x02,0xE1,0x0F,0xF0,0x06,0x04,0x00,0x01,0x00,0xE9,0x01,0xF0,0x40,0x00,0x01,0xE1} //0x70
,{0x00,0x40,0x02,0xE1,0x23,0xF0,0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0x01,0xF0} //0x80
,{0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0x1E,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40} //0x90
,{0x06,0xE1,0x37,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x05,0xE1,0x27,0xF0,0x40,0x00} //0xA0
,{0x00,0xE1,0x00,0x40,0x01,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x14,0xF0} //0xB0
,{0x40,0x00,0x05,0xE1,0x00,0x40,0x06,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0x9F,0xF0,0x40,0x00,0x01,0xE1,0x00,0x40,0x02,0xE1,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xA7,0xF0,0x01,0x00,0xFF,0xF0} //0xF0
,{0xFF,0xF0,0xFF,0xF0,0x4C,0xF0,0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0xFF,0xF0} //End of page 0x1
};

// I2C device found at address 0x52
static const byte eeprom52[][0x10] =
{
{0xCE,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x05,0xE1,0x04,0xF0,0x40,0x00,0x08,0xE1} //0x10
,{0x00,0x40,0x09,0xE1,0x09,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x05,0xE1,0x40,0xF0} //0x20
,{0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0x01,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40} //0x30
,{0x07,0xE1,0x22,0xF0,0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x60
,{0xFF,0xF0,0x5F,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x70
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xF2,0xF0} //0x90
,{0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x6F,0xF0} //0xA0
,{0x40,0x00,0x03,0xE1,0x00,0x40,0x04,0xE1,0x05,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40} //0xB0
,{0x06,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0x18,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x58,0xF0} //0xF0
,{0x04,0x00,0x00,0xE4,0x03,0xF0,0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0x04,0xF0} //End of page 0x2
};

// I2C device found at address 0x53
static const byte eeprom53[][0x10] =
{
{0x40,0x00,0x06,0xE1,0x00,0x40,0x07,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x10
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x71,0xF0,0x14,0x04,0x00,0xE4,0xFF,0xF0} //0x20
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xB1,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xC8,0xF0} //0x60
,{0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x70
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x47,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x90
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xA0
,{0xFF,0xF0,0xFF,0xF0,0x83,0xF0,0x06,0x04,0x02,0xE8,0x02,0xF0,0x06,0x04,0x01,0x00} //0xB0
,{0x04,0xE9,0x06,0x44,0x04,0xE8,0x05,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40,0x06,0xE1} //0xC0
,{0x06,0x04,0x09,0xE8,0xFF,0xF0,0xDB,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40,0x06,0xE1} //0xD0
,{0x04,0xF0,0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0x00,0xD0,0x8B,0xFE,0xFE,0xFE,0x00,0x40,0x02,0xE1,0x05,0xF0,0x40,0x00,0x05,0xE1} //0xF0
,{0x00,0x40,0x06,0xE1,0x00,0xD1,0x72,0xFE,0xFE,0xFE,0x00,0x00,0x00,0x89,0x23,0x00} //End of page 0x3
};

// I2C device found at address 0x54
static const byte eeprom54[][0x10] =
{
{0x26,0x56,0x48,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x10
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x20
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x60
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x70
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x90
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xA0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xB0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xF0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //End of page 0x4
};

// I2C device found at address 0x55
static const byte eeprom55[][0x10] =
{
{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x10
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x20
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0x6A,0xF0,0x01,0x00,0x00,0xE1,0x01,0xF0,0x00,0x01,0x00,0xE1,0x0E,0xF0,0x01,0x00} //0x60
,{0x00,0xE1,0x03,0xF0,0x00,0x01,0x00,0xE1,0x04,0xF0,0x01,0x00,0x00,0xE1,0x9A,0xF0} //0x70
,{0x00,0x01,0x00,0xE1,0x96,0xF0,0x01,0x00,0x00,0xE1,0x08,0xF0,0x00,0x01,0x00,0xE1} //0x80
,{0x67,0xF0,0x01,0x00,0x00,0xE1,0x4C,0xF0,0x00,0x01,0x00,0xE1,0x3F,0xF0,0x01,0x00} //0x90
,{0x00,0xE1,0x55,0xF0,0x00,0x01,0x00,0xE1,0x01,0xF0,0x01,0x00,0x00,0xE1,0x01,0xF0} //0xA0
,{0x00,0x01,0x00,0xE1,0x1E,0xF0,0x01,0x00,0x00,0xE1,0x03,0xF0,0x00,0x01,0x00,0xE1} //0xB0
,{0x02,0xF0,0x01,0x00,0x00,0xE1,0x60,0xF0,0x00,0x01,0x00,0xE1,0x01,0xF0,0x01,0x00} //0xC0
,{0x00,0xE1,0x02,0xF0,0x00,0x01,0x00,0xE1,0x01,0xF0,0x01,0x00,0x00,0xE1,0x02,0xF0} //0xD0
,{0x00,0x01,0x00,0xE1,0x38,0xF0,0x01,0x00,0x00,0xE1,0xFF,0xF0,0x62,0xF0,0x00,0x01} //0xE0
,{0x00,0xE1,0x57,0xF0,0x01,0x00,0x00,0xE1,0x48,0xF0,0x00,0x01,0x00,0xE1,0x2A,0xF0} //0xF0
,{0x01,0x00,0x00,0xE1,0xFF,0xF0,0x04,0xF0,0x00,0x01,0x00,0xE1,0x17,0xF0,0x01,0x00} //End of page 0x5
};

// I2C device found at address 0x56
static const byte eeprom56[][0x10] =
{
{0x40,0x59,0x14,0x06,0x00,0x00,0x00,0x00,0x80,0x23,0x00,0x48,0x56,0x24,0x00,0x00} //0x10
,{0x00,0x00,0x00,0x00,0x60,0x02,0x60,0x02,0x10,0x02,0x10,0x02,0x94,0x00,0x20,0x05} //0x20
,{0x10,0x05,0x20,0x04,0x10,0x04,0x0E,0x03,0x43,0x0E,0x19,0x41,0x00,0x00,0x00,0x00} //0x30
,{0x00,0x00,0x00,0x00,0x00,0x00,0x05,0x06,0x97,0x05,0x06,0x97,0x05,0x24,0x36,0x00} //0x40
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x50
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x01,0x00,0xF3,0xDE,0xAA,0x02,0x01,0x01,0x00} //0x60
,{0x00,0x00,0x00,0x00,0x00,0x07,0x87,0x02,0xE9,0x04,0x83,0x07,0x33,0x02,0xEB,0x04} //0x70
,{0xBF,0x08,0xA8,0x04,0x83,0x80,0x80,0x00,0x05,0x00,0x00,0x05,0x06,0x97,0x00,0x44} //0x80
,{0x02,0x73,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x90
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0xA0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0xB0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0xC0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF} //0xD0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xE0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xF0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x6
};

// I2C device found at address 0x57
static const byte eeprom57[][0x10] =
{
{0xDF,0x0E,0xD0,0x3C,0x1F,0x8C,0x75,0x0F,0x89,0x0A,0x78,0x03,0x40,0x40,0x05,0x2A} //0x10
,{0x21,0x00,0x12,0x00,0xB8,0x81,0x4A,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x20
,{0x00,0x0F,0x00,0x00,0x02,0x92,0x10,0xD6,0x5B,0xA0,0x93,0x26,0x11,0x09,0x26,0x64} //0x30
,{0xF8,0xF0,0x05,0x2A,0x0F,0xF6,0x19,0x19,0x96,0x09,0x80,0x01,0x96,0x09,0x80,0x01} //0x40
,{0x00,0x00,0x80,0x01,0xFF,0xFF,0xFF,0x24,0x01,0x03,0x70,0xFF,0xFF,0xFF,0xFF,0xFF} //0x50
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x60
,{0xFF,0xEA,0x06,0x16,0x02,0x1E,0x36,0x24,0x05,0x05,0x06,0x97,0xD0,0xC0,0xBA,0xEA} //0x70
,{0x06,0x00,0xD1,0x6D,0x00,0x00,0x00,0x80,0x04,0x05,0x00,0x00,0x00,0x00,0x00,0x00} //0x80
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x59} //0x90
,{0x14,0x04,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xA0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xB0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xC0
,{0xFF,0xA0,0xEB,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xD0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xE0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xF0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x7
};

//Done.

//Scanning...

// I2C device found at address 0x50
static const byte eeprom50[][0x10] =
{
{0x00,0xE1,0xFF,0xF0,0xB6,0xF0,0x06,0x04,0x40,0x01,0x00,0xE9,0x00,0x40,0x00,0xE1} //0x10
,{0x58,0x48,0x03,0xE2,0x06,0x04,0x04,0xE8,0x15,0x14,0x59,0x58,0x10,0x00,0x05,0xE7} //0x20
,{0x58,0x59,0x05,0xE2,0x50,0x10,0x06,0xE1,0x10,0x50,0x06,0xE1,0x06,0x04,0x50,0x10} //0x30
,{0x06,0xE9,0x10,0x50,0x06,0xE1,0x78,0xF0,0x00,0x15,0x51,0x58,0x00,0x10,0x06,0xE7} //0x40
,{0x59,0x51,0x06,0xE2,0x58,0x59,0x07,0xE2,0x51,0x58,0x07,0xE2,0x59,0x51,0x07,0xE2} //0x50
,{0x58,0x59,0x08,0xE2,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x01,0xBA,0x68,0x5C} //0x60
,{0x00,0x58,0x02,0x3C,0x56,0x15,0x03,0x24,0x01,0x03,0xFF,0xFF,0xFF,0xFF,0x51,0x58} //0x70
,{0x00,0xE2,0x59,0x51,0x00,0xE2,0x58,0x59,0x08,0xE2,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x90
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xA0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xB0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0x0F,0xF0,0x06,0x04,0x00,0xE8,0x00,0x2A,0xE4,0xD6,0x00,0x6E,0x00,0x3C,0x10,0x53} //0xE0
,{0x08,0x04,0x12,0x09,0xFF,0xFF,0xFF,0xFF,0x41,0x19,0x0E,0x43,0x01,0xFB,0x51,0x58} //0xF0
,{0x01,0xE2,0x59,0x51,0x02,0xE2,0x26,0xF0,0x58,0x59,0x07,0xE2,0x40,0x00,0x08,0xE1} //End of page 0x0
};

// I2C device found at address 0x51
static const byte eeprom51[][0x10] =
{
{0x00,0x40,0x09,0xE1,0x00,0x00,0x26,0x04,0x02,0xE8,0x00,0x1E,0x04,0x17,0x05,0x05} //0x10
,{0x06,0x97,0xFF,0xFF,0xFF,0xFF,0x51,0x58,0x01,0xE2,0x59,0x51,0x02,0xE2,0xFF,0xF0} //0x20
,{0xDC,0xF0,0x06,0x04,0x01,0xE8,0x06,0x04,0x06,0xE8,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x64,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x9F,0xF0,0x01,0x00} //0x60
,{0x02,0xE1,0x0F,0xF0,0x06,0x04,0x00,0x01,0x00,0xE9,0x01,0xF0,0x40,0x00,0x01,0xE1} //0x70
,{0x00,0x40,0x02,0xE1,0x23,0xF0,0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0x01,0xF0} //0x80
,{0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0x1E,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40} //0x90
,{0x06,0xE1,0x37,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x05,0xE1,0x27,0xF0,0x40,0x00} //0xA0
,{0x00,0xE1,0x00,0x40,0x01,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x14,0xF0} //0xB0
,{0x40,0x00,0x05,0xE1,0x00,0x40,0x06,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0x9F,0xF0,0x40,0x00,0x01,0xE1,0x00,0x40,0x02,0xE1,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xA7,0xF0,0x01,0x00,0xFF,0xF0} //0xF0
,{0xFF,0xF0,0xFF,0xF0,0x4C,0xF0,0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0xFF,0xF0} //End of page 0x1
};

// I2C device found at address 0x52
static const byte eeprom52[][0x10] =
{
{0xCE,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x05,0xE1,0x04,0xF0,0x40,0x00,0x08,0xE1} //0x10
,{0x00,0x40,0x09,0xE1,0x09,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x05,0xE1,0x40,0xF0} //0x20
,{0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0x01,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40} //0x30
,{0x07,0xE1,0x22,0xF0,0x40,0x00,0x07,0xE1,0x00,0x40,0x08,0xE1,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x60
,{0xFF,0xF0,0x5F,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x70
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xF2,0xF0} //0x90
,{0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x6F,0xF0} //0xA0
,{0x40,0x00,0x03,0xE1,0x00,0x40,0x04,0xE1,0x05,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40} //0xB0
,{0x06,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0x18,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x58,0xF0} //0xF0
,{0x04,0x00,0x00,0xE4,0x03,0xF0,0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0x04,0xF0} //End of page 0x2
};

// I2C device found at address 0x53
static const byte eeprom53[][0x10] =
{
{0x40,0x00,0x06,0xE1,0x00,0x40,0x07,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x10
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x71,0xF0,0x14,0x04,0x00,0xE4,0xFF,0xF0} //0x20
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xB1,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xC8,0xF0} //0x60
,{0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x70
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x47,0xF0,0x01,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x90
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xA0
,{0xFF,0xF0,0xFF,0xF0,0x83,0xF0,0x06,0x04,0x02,0xE8,0x02,0xF0,0x06,0x04,0x01,0x00} //0xB0
,{0x04,0xE9,0x06,0x44,0x04,0xE8,0x05,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40,0x06,0xE1} //0xC0
,{0x06,0x04,0x09,0xE8,0xFF,0xF0,0xDB,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40,0x06,0xE1} //0xD0
,{0x04,0xF0,0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0x00,0xD0,0x8B,0xFE,0xFE,0xFE,0x00,0x40,0x02,0xE1,0x05,0xF0,0x40,0x00,0x05,0xE1} //0xF0
,{0x00,0x40,0x06,0xE1,0x00,0xD1,0x72,0xFE,0xFE,0xFE,0x00,0x00,0x00,0x89,0x23,0x00} //End of page 0x3
};

// I2C device found at address 0x54
static const byte eeprom54[][0x10] =
{
{0x26,0x56,0x48,0x00,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x10
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x20
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x60
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x70
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x80
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x90
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xA0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xB0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xC0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xD0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xE0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0xF0
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //End of page 0x4
};

// I2C device found at address 0x55
static const byte eeprom55[][0x10] =
{
{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x10
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x20
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x30
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x40
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0} //0x50
,{0x6A,0xF0,0x01,0x00,0x00,0xE1,0x01,0xF0,0x00,0x01,0x00,0xE1,0x0E,0xF0,0x01,0x00} //0x60
,{0x00,0xE1,0x03,0xF0,0x00,0x01,0x00,0xE1,0x04,0xF0,0x01,0x00,0x00,0xE1,0x9A,0xF0} //0x70
,{0x00,0x01,0x00,0xE1,0x96,0xF0,0x01,0x00,0x00,0xE1,0x08,0xF0,0x00,0x01,0x00,0xE1} //0x80
,{0x67,0xF0,0x01,0x00,0x00,0xE1,0x4C,0xF0,0x00,0x01,0x00,0xE1,0x3F,0xF0,0x01,0x00} //0x90
,{0x00,0xE1,0x55,0xF0,0x00,0x01,0x00,0xE1,0x01,0xF0,0x01,0x00,0x00,0xE1,0x01,0xF0} //0xA0
,{0x00,0x01,0x00,0xE1,0x1E,0xF0,0x01,0x00,0x00,0xE1,0x03,0xF0,0x00,0x01,0x00,0xE1} //0xB0
,{0x02,0xF0,0x01,0x00,0x00,0xE1,0x60,0xF0,0x00,0x01,0x00,0xE1,0x01,0xF0,0x01,0x00} //0xC0
,{0x00,0xE1,0x02,0xF0,0x00,0x01,0x00,0xE1,0x01,0xF0,0x01,0x00,0x00,0xE1,0x02,0xF0} //0xD0
,{0x00,0x01,0x00,0xE1,0x38,0xF0,0x01,0x00,0x00,0xE1,0xFF,0xF0,0x62,0xF0,0x00,0x01} //0xE0
,{0x00,0xE1,0x57,0xF0,0x01,0x00,0x00,0xE1,0x48,0xF0,0x00,0x01,0x00,0xE1,0x2A,0xF0} //0xF0
,{0x01,0x00,0x00,0xE1,0xFF,0xF0,0x04,0xF0,0x00,0x01,0x00,0xE1,0x17,0xF0,0x01,0x00} //End of page 0x5
};

// I2C device found at address 0x56
static const byte eeprom56[][0x10] =
{
{0x40,0x59,0x14,0x06,0x00,0x00,0x00,0x00,0x80,0x23,0x00,0x48,0x56,0x24,0x00,0x00} //0x10
,{0x00,0x00,0x00,0x00,0x60,0x02,0x60,0x02,0x10,0x02,0x10,0x02,0x94,0x00,0x20,0x05} //0x20
,{0x10,0x05,0x20,0x04,0x10,0x04,0x0E,0x03,0x43,0x0E,0x19,0x41,0x00,0x00,0x00,0x00} //0x30
,{0x00,0x00,0x00,0x00,0x00,0x00,0x05,0x06,0x97,0x05,0x06,0x97,0x05,0x24,0x36,0x00} //0x40
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x50
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x01,0x00,0xF3,0xDE,0xAA,0x02,0x01,0x01,0x00} //0x60
,{0x00,0x00,0x00,0x00,0x00,0x07,0x87,0x02,0xE9,0x04,0x83,0x07,0x33,0x02,0xEB,0x04} //0x70
,{0xBF,0x08,0xA8,0x04,0x83,0x80,0x80,0x00,0x05,0x00,0x00,0x05,0x06,0x97,0x00,0x44} //0x80
,{0x02,0x73,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x90
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0xA0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0xB0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0xC0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF} //0xD0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xE0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xF0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x6
};

// I2C device found at address 0x57
static const byte eeprom57[][0x10] =
{
{0xDF,0x0E,0xD0,0x3C,0x1F,0x8C,0x75,0x0F,0x89,0x0A,0x78,0x03,0x40,0x40,0x05,0x2A} //0x10
,{0x21,0x00,0x12,0x00,0xB8,0x81,0x4A,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x20
,{0x00,0x0F,0x00,0x00,0x02,0x92,0x10,0xD6,0x5B,0xA0,0x93,0x26,0x11,0x09,0x26,0x64} //0x30
,{0xF8,0xF0,0x05,0x2A,0x0F,0xF6,0x19,0x19,0x96,0x09,0x80,0x01,0x96,0x09,0x80,0x01} //0x40
,{0x00,0x00,0x80,0x01,0xFF,0xFF,0xFF,0x24,0x01,0x03,0x70,0xFF,0xFF,0xFF,0xFF,0xFF} //0x50
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x60
,{0xFF,0xEA,0x06,0x16,0x02,0x1E,0x36,0x24,0x05,0x05,0x06,0x97,0xD0,0xC0,0xBA,0xEA} //0x70
,{0x06,0x00,0xD1,0x6D,0x00,0x00,0x00,0x80,0x04,0x05,0x00,0x00,0x00,0x00,0x00,0x00} //0x80
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x59} //0x90
,{0x14,0x04,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xA0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xB0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xC0
,{0xFF,0xA0,0xEB,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xD0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xE0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0xF0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x7
};

//Done.

ahull
Wed Mar 14, 2018 3:58 pm
EDIT: Updated stm32duino sketch now on github see post below

I really need to give it a good tidy up, remove all the multimeter stuff, and pop it on github.

Perhaps I’ll do that this evening.

ahull
Thu Mar 15, 2018 12:09 am
Sketch pushed to git.
Checkout the latest version here -> https://github.com/pingumacpenguin/SOR- … dater..git
zoomx
Thu Mar 15, 2018 10:08 am
I added it to my watch list!
ahull
Thu Mar 15, 2018 12:15 pm
[zoomx – Thu Mar 15, 2018 10:08 am] –
I added it to my watch list!

I suspect messing around and hacking nuclear dosimeters might get me added to a watch list, and not in a good way :roll:

zmemw16
Thu Mar 15, 2018 1:00 pm
40yrs ago working off site in Hillend / Dalgety Bay KY11 9HQ i had a couple of bad nights, probably as Rosyth was a couple of miles away.
then i went to sleep :D
srp
Pito
Thu Mar 15, 2018 1:51 pm
From wiki:
The objects are believed to come from eroded landfill that contains debris from Second World War aircraft that originally had radium dials
:) That is certainly not the case.. That was something much bigger..

There are maybe 20000 planes crashed in Europe during WWII, ALL of them with radium filled dials.. Never heard about any issues with those. A friend of mine owns a wwII wehrmacht altitude meter we used for calibrating geigers :)

ahull
Thu Mar 15, 2018 1:53 pm
Bad nights in Dalgety Bay… could have been a bad pint.. maybe a dodgy Scotch pie, or just something in the environment. ;)
ahull
Thu Mar 15, 2018 1:54 pm
[Pito – Thu Mar 15, 2018 1:51 pm] –
From wiki:
The objects are believed to come from eroded landfill that contains debris from Second World War aircraft that originally had radium dials
:) That is certainly not the case.. That was something much bigger..

There are maybe 20000 planes crashed in Europe during WWII, ALL of them with radium filled dials.. Never heard about any issues with those. A friend of mine owns a wwII wehrmacht altitude meter we used for calibrating geigers :)

“It is thought that the contamination originates from the residue of radium-coated instrument panels from military aircraft incinerated and land-filled in the area at end of World War II.”

ahull
Thu Mar 15, 2018 1:55 pm
[ahull – Thu Mar 15, 2018 1:54 pm] –

[Pito – Thu Mar 15, 2018 1:51 pm] –
From wiki:
The objects are believed to come from eroded landfill that contains debris from Second World War aircraft that originally had radium dials
:) That is certainly not the case.. That was something much bigger..

There are maybe 20000 planes crashed in Europe during WWII, ALL of them with radium filled dials.. Never heard about any issues with those. A friend of mine owns a wwII wehrmacht altitude meter we used for calibrating geigers :)

“It is thought that the contamination originates from the residue of radium-coated instrument panels from military aircraft incinerated and land-filled in the area at end of World War II.”

Well that and the alien space ships of course. :lol:

Pito
Thu Mar 15, 2018 1:58 pm
Lost nuke device, or, a nuclear waste from a nuke sub thrown over the board into the water..
Pito
Thu Mar 15, 2018 2:05 pm
Btw below two pictures I’ve done with my CCD CMOS detector (a cheapo camera) and a free software which detects the events.

ahull
Thu Mar 15, 2018 2:06 pm
[Pito – Thu Mar 15, 2018 1:58 pm] –
Lost nuke device, or, a nuclear waste from a nuke sub thrown over the board into the water..

That wouldn’t surprise me in the least. We do love our nuclear cover ups in the UK.
https://www.thesun.co.uk/news/2699823/w … ish-coast/
http://www.heraldscotland.com/news/1189 … s_captain/
http://www.nukewatch.org.uk/?page_id=178
.. so assuming the little green men didn’t do it, there is a pretty reasonable chance that some of the contamination *may* have sources other than radium dials.

http://www.bbc.co.uk/news/uk-england-devon-32086030

Rosyth does have a few other potential sources.. Rosyth has seven rusting nuclear submarines, all de-fuelled apparently, but obviously, it couldn’t possibly have anything to do with them now could it.. nothing to see here.. move along..

Look over there.. a pink unicorn!!

ahull
Thu Mar 15, 2018 2:08 pm
[Pito – Thu Mar 15, 2018 2:05 pm] –
Btw below to pictures I’ve done with my CCD detector (a cheapo camera) and a free software which detects the events.

Neat. I presume the CCD is darkened by a thin cover and left next to the source. What was the source?

zoomx
Thu Mar 15, 2018 2:48 pm
It was my GitHub watchlist!!! :lol:

I made CMOS test too, cheap webcam, no results. I used the software from Theremino project
https://physicsopenlab.org/2016/05/22/w … surements/
It seems that the sensor is too small compared to a SBM20 GeigerMuller tube.

Pito
Thu Mar 15, 2018 3:28 pm
Yes, a cheapo $10 CMOS usb camera put into a dark paper box, source an old dial plus cosmic muons :)

Cosmic Ray Finder v. 1.0.0.39 https://foxylab.com/CRF.php?en
Reading in Ru https://acdc.foxylab.com/node/43
.

Pito
Thu Mar 15, 2018 4:36 pm
Two Y shots

Y Event 2.JPG
Y Event 2.JPG (9.6 KiB) Viewed 303 times
ahull
Thu Mar 15, 2018 5:13 pm
More pictures of the daughter board.
Component side.
Contact side.
The blob only has five leads, which suggests a 2wire or i2c device.
VCC,VSS,SCL,SDA and R/W perhaps.
Pito
Thu Mar 15, 2018 5:26 pm
The two wires coming into the blob is actually a single signal (see the loop via the 0ohms). What is interesting are those 4 fields on the bottom side connected to the top network ..
On the first glance I would think it is an oscillator, where the blue thing is an inductor, and the bottom 4 fields are capacitors, where “something” covering the bottom 4 fields (covered by a piece of dielectric tape?) changes its frequency – by a pressure or a movement or a distance of the “something” over the 4 fields (a differential capacitance sensor), or by changing of the parameters of the dielectric tape..
ahull
Fri Mar 16, 2018 12:33 am
[Pito – Thu Mar 15, 2018 5:26 pm] –
The two wires coming into the blob is actually a single signal (see the loop via the 0ohms). What is interesting are those 4 fields on the bottom side connected to the top network ..
On the first glance I would think it is an oscillator, where the blue thing is an inductor, and the bottom 4 fields are capacitors, where “something” covering the bottom 4 fields (covered by a piece of dielectric tape?) changes its frequency – by a pressure or a movement or a distance of the “something” over the 4 fields (a differential capacitance sensor), or by changing of the parameters of the dielectric tape..

I fired the blue thing on to my component tester and it came up as a diode. Admittedly I didn’t take it out of circuit.

If we number the pins from the top of the image anticlockwise, then pin 3 looks to be tied to ground, via that zero ohm link, with the option to install a different link possibly to pull it high. This might therefore be the R/W pin. If the manufacturer put an ID, and/the factory defaults and/or callibration data in a COB EEPROM on that little board, then the programmer device could read that rom to obtain information required to reset the dosimeter back to some form of sanity when required using the radio link. I wonder what frequency the radio works on. To answer that question I suspect I need my oscilloscope and possibly my SDR dongle.

All of this is pure speculation on my part until I do a bit more probing.

ahull
Fri Mar 16, 2018 1:08 am
This might give some clues regarding the radio part of the device.

http://www.laurussystems.com/products/p … e_moni.pdf

I suspect the 900MHz variant actually talks on 915MHz. Perhaps something from this collection -> https://www.ebay.co.uk/itm/New-RFM69HW- … wczfXAIo3w
.. might be able to chat with it.

ahull
Fri Mar 16, 2018 12:06 pm
Here is an annotated copy of the daughter board pcb.


EDIT: Component values (measured)

D1 = voltage drop 0.9V
R1 = 22 Ohms (matches lettering on resistor)
R2 = 1.0 k Ohms (? odd.. lettering suggests 81 Ohms)
R3 = R4 = R5 = zero Ohm links.
C1 = 90.0 nF (probably 0.01uF)
R6 = 2.495 k Ohms (matches lettering on resistor).

Pito
Fri Mar 16, 2018 12:53 pm
I built a detector with an IR pin diode (SFH-205, 7mm2 detector area), followed by a Jfet and 2 transistors (one of them darlington).
It gave me a ~pulse-two per second with the old dial. It cannot be compared to ie. the SBM-20 which gave me ~4k per minute.
ahull
Fri Mar 16, 2018 1:24 pm
[Pito – Fri Mar 16, 2018 12:53 pm] –
I built a detector with an IR pin diode (SFH-205, 7mm2 detector area), followed by a Jfet and 2 transistors (one of them darlington).
It gave me a ~pulse-two per second with the old dial. It cannot be compared to ie. the SBM-20 which gave me ~4k per minute.

Do you have the schematic?

zoomx
Fri Mar 16, 2018 1:26 pm
The top antenna seems to be on the kHz range, very similar to an AM radio receiver antenna.

Four links to BPW34 projects

http://www.vk2zay.net/article/265
http://www.b-kainka.de/bastel131.html
https://github.com/johnyo/geiger
http://www.dgkelectronics.com/a-radiati … de-sensor/

I built only the Elektor kit that I linked before.

Pito
Fri Mar 16, 2018 1:37 pm
This is the detector, actually only 1 darlington BC517 after the jfet BF245A.
Provided as-is, no warranties of any kind are provided.
What is a major diff against a Geiger tube – here the amplitudes of the pulses differ – thus you may create an “energy” spectra.
.
UPDATE: I removed the dust from the design and refreshed the way how I set OP mode of the BC517, also tested and it works :).

Gamma-Ray Detector with IR pin diode.JPG
Gamma-Ray Detector with IR pin diode.JPG (47.77 KiB) Viewed 446 times
ahull
Fri Mar 16, 2018 7:15 pm
Nice.. something new and interesting to add to my todo list. :D

BTW those BC517 darlingtons are pretty cheap 100 for $2 on ebay.
(yet another component drawer filled :lol: )

Thanks. Maybe I can re-purpose some of those cheap as chips moving coil meter movements to make a tiny lipo powered Geiger meter.

A quick back of the envelope calculation suggests that if the output pulses were fed directly into the meter movement, it would deflect about 1/4 of full scale, assuming there was enough energy in the pulse to move the needle at all of course, due to their relatively short period, so a bit more amplification and perhaps some smoothing may be needed.

I could of course cheat and use a blue pill to do the pulse counting and spit out a PWM signal proportional to the counts per minute, or the pulse strength, and drive the meter with that. But then again if I was going to go to that amount of trouble I would probably go the whole hog and add a display to graph the pulses against time, and the spectrum of the pulse energies.

BTW the two mystery items (other than the black epoxy blob of course) on the daughter board got a probing from my C^4 (cheap Chinese component checker).

Results below.

zmemw16
Sat Mar 17, 2018 6:09 am
andy,
i don’t know how many others don’t see your pictures.
perhaps a link to a github directory ?

stephen

ahull
Sat Mar 17, 2018 10:55 am
[zmemw16 – Sat Mar 17, 2018 6:09 am] –
andy,
i don’t know how many others don’t see your pictures.
perhaps a link to a github directory ?

stephen

Its a google images problem. Sometimes their links dont work.
Safest option is to attach the image to the post. I edited the above post to use an attached image.

ahull
Sat Mar 17, 2018 9:50 pm
For those who can’t see the previous images of the daughter board, here are the images again, this time attached to the post, rather than via Google Images.

mrburnette
Sat Mar 17, 2018 10:52 pm
… any chance the “screen” is an air-gap ionization detector? It would be pretty straight-forward to determine the rate of charge decay due to radiation effects.

https://hackaday.com/2012/10/15/cheap-s … particles/

330 Volts is sufficient to breakdown sir at normal atmospheric pressures. Ref

The “gold” foil could be to slow the radiation and create a secondary ionized particle for detection.

Rainy day family time build: https://en.wikipedia.org/wiki/Kearny_fallout_meter
“The family that builds radiation detectors together, sticks together.”

Ray

ahull
Sun Mar 18, 2018 12:49 am
The small daughter board is probably not actually part of the detector, it most likely houses some sort of ID tag, and/or config info.

That tinfoil detector you linked to Ray, reminded me of another method of radiation detection I had heard of, namely using your mobile phone camera, with the lens covered in tin foil to block out the light.

Apparently there is even an Android App for this. -> https://play.google.com/store/apps/deta … ioactivity

I’ll need to give it a try, since I have a pile of old mobiles sitting around.

ahull
Sun Mar 18, 2018 12:56 am
BTW the Dosimeter goes in to a different mode (blank display) if you power it on with a magnet next to the reed relay. I suspect it will be transmitting and/or listening to the mothership in this mode. I do need to figure out where I put my SDR dongle after the house move, so I can scan around and see if I can spot it chatting.
ahull
Sun Mar 18, 2018 2:26 am
Maybe I need to print myself one of these to probe the main board.


Pito
Sun Mar 18, 2018 10:11 am
I ran my CMOS camera detector over the night, got ~4 thousands events, a lot of them like this one (about 1/3 of all events are this Y collisions..)
.

Pito
Sun Mar 18, 2018 11:41 am
Maybe I need to print myself one of these to probe the main board.
The professional (and a bit more expensive) probes have got a fet pre-amplifier (with low impedance output matched to the coax) at the tip’s input. I would create a place for a small pcb at the tip side of the plastic probe..
ahull
Sun Mar 18, 2018 1:12 pm
This PDF might be useful when trying to make sense of the EEPROM contents.

Page 12
All data is stored in the dosimeter’s memory for over 10 years, even in the absence of a battery.
Dose increments are recorded at user selectable intervals of 10 seconds, 1 minute, 10 minutes, 1 hour or 24 hours, as programmed by the reader.
Recording duration is 750 steps, with dose increment.
The data history is circular type; i.e. old data is overwritten by the most recent data.
All events and anomalies are recorded and dated systematically in the data history.

So from the above, we can surmise that there are probably 750 similar entries in the eeprom.
(Note: Since this pdf is for a related device, the exact number of entries may be different, but is probably the same).

These entries *may* consist of multiple “timestamp and count” type records, or may simply be counts, with the timestamp inferred by the offset from the first record.

There is a pointer to the current entry in the 750 entry ring buffer, and this is probably in RAM.

The device has a rudimentary knowledge of date and time.

This must also be in RAM, which explains the supercap used to keep the device functioning when changing the battery.

Draining the supercap may reset the “over time” alarm (but it may also trigger it, depending on how the device behaves when the supercap is discharged).

The date and time is presumably programmed by the programming device, and probably updated each time the dosimeter is placed in the reader, and/or communicates over the radio link.

The device records “dose increment” and “anomalies”, “recorded and dated systematically in the data history”.
Presumably this means that to get the total dose, it adds up each count for each record in the buffer.

Therefore, If I zero out the pages of the EEPROM, around the records that are currently changing, the total dose should zero.
(There may be a checksum in the EEPROM to wrestle with, so altering the contents may not be that simple).

Furthermore, I should then be able to figure out how many bytes are in a record.
(I wonder if shielding the device in a lead box would give zero count entries.. :idea:)

From this it may be able to work out what is actually being stored (endianness, length of records in bytes, etc).

If I can figure this out, I can hack the thing, perhaps add an ESP32 or ESP8266 to give it a web interface for remote access to the EEROM, and I have myself a portable, remotely programmable dosimeter/gamma detector/counter.

On the strength of this I bought three more.

Well at around three quid each (I got three more for a tenner from the same seller, who hadn’t managed to shift them at fifteen quid for three), for a device that retails for over $500 (MSRP for the Mirion SOR/RF LCD Radiation Detector Dosimeter is $655.20) they were a steal.

EDIT: Also this PDF may be useful.

ahull
Sun Mar 18, 2018 2:55 pm
[Pito – Sun Mar 18, 2018 10:11 am] –
I ran my CMOS camera detector over the night, got ~4 thousands events, a lot of them like this one (about 1/3 of all events are this Y collisions..)
.

Was this simply background radiation, or did you have a source?

Pito
Sun Mar 18, 2018 5:01 pm
With the source. From 2am to 10am 4150 events. I’ve spent 2 hours clicking through the pictures. Some of them are pretty impressive.. A lot of Y events.
In 1993 I was at DESY Hamburg, they had there a nice big cloud chamber, I was looking into it for an hour at least :D
It would be great to have something similar at home, best made of silicon..
mrburnette
Sun Mar 18, 2018 5:17 pm
[Pito – Sun Mar 18, 2018 5:01 pm] –
…
It would be great to have something similar at home, best made of silicon..

A RPi Zero and a cheap camera masked from light. Post to a webpage.

A USB cheap-o camera will work, too: https://www.raspberrypi.org/documentati … e/webcams/

Streaming is a piece-of-cake: https://web.archive.org/web/20151012014 … /ch03.html

CPM to mRhr

Ray

ahull
Tue Mar 27, 2018 9:55 am
I ordered three more of these, and they arrived. The seller threw in an extra one, so now I have seven of them. They all appear to do *something*, so none are stone dead. Some are in the suspended state, and a couple are in the alarm state.

If I get a chance in the next few days, I’ll dump a couple more of the eeproms to see if I can spot any more patterns.

ahull
Tue Mar 27, 2018 10:46 am
I dumped the eeprom, ran the device for a while, dumped it again, ran it again… etc.
Below is a gif of the changes using a bash script that displays three dump files.
It starts with file2, sleeps for 1/10 second, displays file 3, sleep , displays file 4, sleep etc rinse and repeat.
(file1 was discarded as it was junk).

ahull
Tue Mar 27, 2018 12:18 pm
With a little help from imagemagic and some additional gifsicle trickery, we can see exactly what is changing.

ahull
Tue Mar 27, 2018 6:25 pm
Fresh off the presses. The raw eeprom dump from one of the second batch of devices.

This one interestingly is showing an exposure alarm at around what appears to read 1cRad (which I presume is 0.01 mSv, or not very much at all).

The layout of the data is very similar to the other two devices (obviously the actual values differ).

// SOR/T SOR/R Dosimeter 24C16 EEROM dumper and updater.
// Waiting for Device to POST and i2c Bus to settle.
//Scanning...

// I2C device found at address 0x50
static const byte eeprom50[][0x10] =
{
{0xFF,0xFF,0xFF,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x010
,{0xFF,0xFF,0x04,0x64,0x00,0x3D,0x41,0x40,0x00,0x9C,0x00,0xEF,0x49,0x41,0x00,0xE2} //0x020
,{0x48,0x49,0x00,0xE2,0x08,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40,0x06,0xE1,0x00,0x00} //0x030
,{0x08,0x2E,0x00,0x12,0x00,0x3C,0x21,0x53,0x07,0x22,0x03,0x99,0xFF,0xFF,0xFF,0xFF} //0x040
,{0x41,0x48,0x00,0xE2,0x02,0x00,0x49,0x41,0x00,0xE6,0x48,0x49,0x00,0xE2,0x40,0x00} //0x050
,{0x00,0xE1,0x00,0x40,0x00,0xE1,0x6E,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x04,0xE1} //0x060
,{0x0A,0xF0,0x41,0x00,0x04,0xE1,0x01,0x41,0x04,0xE1,0x40,0x01,0x05,0xE1,0x00,0x40} //0x070
,{0x05,0xE1,0xFF,0xF0,0x61,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40,0x06,0xE1,0xFF,0xF0} //0x080
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x00,0x08,0xD1,0x8C} //0x090
,{0x00,0x40,0x00,0x3C,0x33,0x49,0x12,0x27,0x08,0x98,0xFF,0xFF,0xFF,0xFF,0x00,0x02} //0x0A0
,{0x41,0x48,0x01,0xE6,0x49,0x41,0x01,0xE2,0x40,0x00,0x02,0xE1,0x00,0x40,0x03,0xE1} //0x0B0
,{0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0xFF,0xF0,0x5D,0xF0,0x01,0x00,0xFF,0xF0} //0x0C0
,{0xA5,0xF0,0x01,0x00,0xFF,0xF0,0x72,0xF0,0x01,0x00,0xFF,0xF0,0xAF,0xF0,0x01,0x00} //0x0D0
,{0x67,0xF0,0x00,0x00,0x33,0xFA,0x40,0x49,0x42,0xE2,0x00,0x06,0x8A,0xDA,0x00,0x9E} //0x0E0
,{0x00,0x1C,0x33,0x01,0x03,0x11,0x07,0x97,0xFF,0xFF,0xFF,0xFF,0x41,0x40,0x00,0xE2} //0x0F0
,{0x49,0x41,0x00,0xE2,0x48,0x49,0x01,0xE2,0x41,0x48,0x01,0xE2,0x49,0x41,0x01,0xE2} //End of page 0x0
};

// I2C device found at address 0x51
static const byte eeprom51[][0x10] =
{
{0x48,0x49,0x02,0xE2,0x01,0xF0,0x41,0x48,0x05,0xE2,0x49,0x41,0x05,0xE2,0x48,0x49} //0x010
,{0x05,0xE2,0x41,0x48,0x05,0xE2,0x49,0x41,0x05,0xE2,0x48,0x49,0x05,0xE2,0x00,0x00} //0x020
,{0x01,0x1E,0x02,0xEC,0x00,0x3C,0x05,0x14,0x19,0x19,0x12,0x02,0xFF,0xFF,0xFF,0xFF} //0x030
,{0x41,0x48,0x00,0xE2,0x49,0x41,0x00,0xE2,0x26,0xF0,0x01,0x00,0x31,0xF0,0x01,0x00} //0x040
,{0xB1,0xF0,0x01,0x00,0xA9,0xF0,0x01,0x00,0x7F,0xF0,0x04,0x00,0x00,0xE4,0x1A,0xF0} //0x050
,{0x01,0x00,0x09,0xF0,0x14,0x04,0x00,0xE4,0x91,0xF0,0x01,0x00,0xB5,0xF0,0x01,0x00} //0x060
,{0x87,0xF0,0x01,0x00,0x94,0xF0,0x01,0x00,0xAD,0xF0,0x01,0x00,0xA9,0xF0,0x01,0x00} //0x070
,{0x95,0xF0,0x01,0x00,0x93,0xF0,0x01,0x00,0x6F,0xF0,0x48,0x49,0x00,0xE2,0xFF,0xF0} //0x080
,{0xFF,0xF0,0xC3,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40,0x05,0xE1,0x1C,0xF0,0x06,0x04} //0x090
,{0x05,0xE8,0x40,0x48,0x05,0xE2,0x06,0x04,0x05,0xE8,0x40,0x00,0x05,0xE1,0x00,0x40} //0x0A0
,{0x05,0xE1,0xFF,0xF0,0xFF,0xF0,0x52,0xF0,0x00,0x14,0x41,0x40,0x09,0xE6,0x49,0x41} //0x0B0
,{0x09,0xE2,0x48,0x49,0x10,0xE2,0x41,0x48,0x10,0xE2,0x49,0x41,0x10,0xE2,0x48,0x49} //0x0C0
,{0x11,0xE2,0x01,0xF0,0x41,0x48,0x03,0xE2,0x49,0x41,0x03,0xE2,0x48,0x49,0x04,0xE2} //0x0D0
,{0x41,0x48,0x06,0xE2,0x49,0x41,0x06,0xE2,0x48,0x49,0x06,0xE2,0x41,0x48,0x06,0xE2} //0x0E0
,{0x49,0x41,0x06,0xE2,0x48,0x49,0x06,0xE2,0x01,0xF0,0x41,0x48,0x01,0xE2,0x49,0x41} //0x0F0
,{0x01,0xE2,0x48,0x49,0x01,0xE2,0x40,0x48,0x02,0xE2,0x00,0x0C,0xDD,0xFA,0x02,0x30} //End of page 0x1
};

// I2C device found at address 0x52
static const byte eeprom52[][0x10] =
{
{0x02,0x3C,0x52,0x32,0x19,0x19,0x12,0x02,0xFF,0xFF,0xFF,0xFF,0x41,0x40,0x00,0xE2} //0x010
,{0x40,0x41,0x00,0xE2,0x41,0x40,0x00,0xE2,0x49,0x41,0x00,0xE2,0x08,0xF0,0x40,0x00} //0x020
,{0x06,0xE1,0x00,0x40,0x06,0xE1,0x8F,0xF0,0x01,0x00,0x84,0xF0,0x01,0x00,0x82,0xF0} //0x030
,{0x01,0x00,0x69,0xF0,0x01,0x00,0x4E,0xF0,0x10,0x00,0x00,0xE4,0x17,0xF0,0x01,0x00} //0x040
,{0x62,0xF0,0x01,0x00,0x64,0xF0,0x01,0x00,0x61,0xF0,0x01,0x00,0x3A,0xF0,0x06,0x04} //0x050
,{0x03,0xE8,0x50,0xF0,0x01,0x00,0x58,0xF0,0x01,0x00,0x5D,0xF0,0x01,0x00,0x65,0xF0} //0x060
,{0x01,0x00,0x4F,0xF0,0x01,0x00,0x61,0xF0,0x01,0x00,0x6E,0xF0,0x01,0x00,0x5D,0xF0} //0x070
,{0x01,0x00,0x85,0xF0,0x01,0x00,0x71,0xF0,0x01,0x00,0x55,0xF0,0x01,0x00,0x6E,0xF0} //0x080
,{0x01,0x00,0x66,0xF0,0x12,0x10,0x06,0xE4,0x13,0x12,0x07,0xE4,0x61,0x32,0x11,0x13} //0x090
,{0x02,0xE4,0x44,0x62,0x08,0x00,0x06,0x04,0x40,0x00,0x09,0xE9,0x00,0x40,0x09,0xE1} //0x0A0
,{0x08,0x00,0x40,0x00,0x06,0xE1,0x00,0x40,0x06,0xE1,0x01,0xF0,0x41,0x00,0x00,0xE1} //0x0B0
,{0x01,0x41,0x00,0xE1,0x40,0x01,0x00,0xE1,0x00,0x40,0x00,0xE1,0x40,0x00,0x02,0xE1} //0x0C0
,{0x00,0x40,0x02,0xE1,0x40,0x00,0x02,0xE1,0x00,0x40,0x02,0xE1,0x40,0x00,0x02,0xE1} //0x0D0
,{0x00,0x40,0x02,0xE1,0x40,0x00,0x02,0xE1,0x00,0x40,0x02,0xE1,0x06,0x04,0x02,0xE8} //0x0E0
,{0x06,0x04,0x02,0xE8,0x06,0x04,0x02,0xE8,0x40,0x00,0x03,0xE1,0x00,0x40,0x03,0xE1} //0x0F0
,{0x69,0x49,0x03,0xE2,0x49,0x69,0x03,0xE2,0x40,0x00,0x05,0xE1,0x00,0x40,0x05,0xE1} //End of page 0x2
};

// I2C device found at address 0x53
static const byte eeprom53[][0x10] =
{
{0x69,0x49,0x05,0xE2,0x49,0x69,0x05,0xE2,0x00,0x08,0xE9,0xFE,0xFE,0xFE,0x00,0x10} //0x010
,{0x63,0x69,0x12,0x34,0x22,0x15,0x80,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x020
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x030
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x040
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x060
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x070
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x080
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x090
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0A0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0B0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0C0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x3
};

// I2C device found at address 0x54
static const byte eeprom54[][0x10] =
{
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x010
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x020
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x030
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x040
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x060
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x070
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x080
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x090
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0A0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0B0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0C0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x4
};

// I2C device found at address 0x55
static const byte eeprom55[][0x10] =
{
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x010
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x020
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x030
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x040
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x060
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x070
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x080
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x090
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0A0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0B0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0C0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x5
};

// I2C device found at address 0x56
static const byte eeprom56[][0x10] =
{
{0x40,0x69,0x13,0x06,0x00,0x00,0x10,0x63,0x60,0x12,0x34,0x80,0x15,0x49,0x00,0x00} //0x010
,{0x00,0x00,0x00,0x00,0x99,0x95,0x10,0x02,0x99,0x94,0x10,0x03,0x94,0x00,0x99,0x95} //0x020
,{0x99,0x05,0x99,0x95,0x99,0x05,0x28,0x03,0x06,0x93,0x19,0xCE,0x00,0x00,0x00,0x00} //0x030
,{0x00,0x00,0x00,0x00,0x00,0x00,0x27,0x03,0x03,0x24,0x03,0x03,0x14,0x02,0x58,0x00} //0x040
,{0x00,0x0D,0x16,0x24,0x18,0x14,0x24,0x24,0x24,0x24,0x24,0x24,0x24,0x24,0x24,0x24} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x02,0x15,0x00,0x02,0x01,0x01,0x00} //0x060
,{0x00,0x00,0x00,0x00,0x00,0x07,0x94,0x02,0xA2,0x04,0x7C,0x07,0x66,0x02,0xAF,0x04} //0x070
,{0xD2,0x08,0xAF,0x04,0x7C,0x73,0x80,0x00,0x00,0x00,0x00,0x01,0x10,0x00,0x00,0x34} //0x080
,{0x31,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x090
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x0A0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x0B0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x0C0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x6
};

// I2C device found at address 0x57
static const byte eeprom57[][0x10] =
{
{0x0F,0x0E,0xD0,0x3C,0x1F,0x8C,0x75,0x0F,0x89,0x3C,0x78,0x03,0x40,0x40,0x05,0x2A} //0x010
,{0x01,0x00,0x11,0x00,0x18,0x81,0x82,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x020
,{0x00,0x8F,0x00,0x00,0x01,0x45,0x50,0xD6,0xC0,0x10,0x2B,0x24,0x03,0x03,0x26,0x64} //0x030
,{0xF8,0xF0,0x04,0x2A,0x0F,0xF4,0x19,0x19,0x96,0x09,0x80,0x01,0x96,0x09,0x80,0x01} //0x040
,{0x00,0x00,0x80,0x01,0x12,0x74,0x53,0x27,0x03,0x03,0x70,0xFF,0xFF,0xFF,0xFF,0xFF} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x060
,{0xFF,0x08,0x06,0x0C,0x04,0x38,0x58,0x02,0x14,0x24,0x03,0x03,0xD0,0x70,0x98,0x08} //0x070
,{0x06,0x00,0x08,0xE9,0x00,0x10,0x63,0x60,0x05,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x080
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x49} //0x090
,{0x11,0x04,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15} //0x0A0
,{0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15} //0x0B0
,{0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0C0
,{0xFF,0xFF,0x71,0xC0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x7
};

//Done.

ahull
Tue Mar 27, 2018 8:08 pm
A quick comparison of the three eeprom dumps for the “good”, “alarmed” and “dead” – or the good, the bad and the ugly if you prefer. :lol:

Pito
Tue Mar 27, 2018 9:44 pm
I still think those 4 equiangular quadrilaterals in the window is actually the radiation sensor..
Another option could be it is a contact field for downloading the data, but there is a thick foil over it..
ahull
Wed Mar 28, 2018 10:31 am
[Pito – Tue Mar 27, 2018 9:44 pm] –
I still think those 4 equiangular quadrilaterals in the window is actually the radiation sensor..
Another option could be it is a contact field for downloading the data, but there is a thick foil over it..

The four pads look to be an ID tag. I think what happens is that the device is dropped in to a reader, which has a magnet to interact with the reed switch inside the unit, and four contacts that connect to those gold pads, and read the device ID. This means that the device itself is entirely isolated from the reader. Once the reader knows the device ID from the ID tag, it speaks to the device over the radio link. The device goes in to a different mode if the reed switch is enabled and the battery is disconnected and re-connected, so I presume this is how to put the dosimeter in factory mode.

I will attempt to interrogate the ID tag at some stage, but at the moment I’m more interested in talking to the dosimeter.

There is absolutely nothing connecting that little daughter board (the ID tag) electrically with the main board in the dosimeter. They are entirely separate entities.

The radiation detector is a pin diode behind a thin foil shield in the can on the front of the main board. The other can, on the rear, contains the radio tx and rx circuits.

ahull
Wed Mar 28, 2018 10:59 am
Interesting… the eeprom doesn’t appear to update very frequently during normal operation. Presumably this is to save wear on the eeprom.
I’ve been dumping it every minute or so for about the last half hour and nothing has changes.

I do see changes if I disconnect the battery.

Presumably at that point, the device panic and writes to the eeprom just in case its current measurements and settings might get lost otherwise.

I am going to leave the repeated dumps running for a few hours. I suspect we will see an eeprom write at some stage, perhaps after an hour or so, but I could be wrong.

EDIT: I also pushed the latest version of the eeprom dumper to git.

ahull
Wed Mar 28, 2018 11:45 am
For the record, here are diffs vs time.. note the time on the bluepill is obviously wrong, but the time differences are all we are interested in.

//Done.

// Current time - 12:35:09 29/6/2015(BST)
//Scanning...

// Current time - 12:35:09 29/6/2015(BST)

// I2C device found at address 0x50
static const byte eeprom50[][0x10] =
{
{0xFF,0xFF,0xFF,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x010
,{0xFF,0xFF,0x04,0x64,0x00,0x3D,0x41,0x40,0x00,0x9C,0x00,0xEF,0x49,0x41,0x00,0xE2} //0x020
,{0x48,0x49,0x00,0xE2,0x08,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40,0x06,0xE1,0x00,0x00} //0x030
,{0x08,0x2E,0x00,0x12,0x00,0x3C,0x21,0x53,0x07,0x22,0x03,0x99,0xFF,0xFF,0xFF,0xFF} //0x040
,{0x41,0x48,0x00,0xE2,0x02,0x00,0x49,0x41,0x00,0xE6,0x48,0x49,0x00,0xE2,0x40,0x00} //0x050
,{0x00,0xE1,0x00,0x40,0x00,0xE1,0x6E,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x04,0xE1} //0x060
,{0x0A,0xF0,0x41,0x00,0x04,0xE1,0x01,0x41,0x04,0xE1,0x40,0x01,0x05,0xE1,0x00,0x40} //0x070
,{0x05,0xE1,0xFF,0xF0,0x61,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40,0x06,0xE1,0xFF,0xF0} //0x080
,{0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0xFF,0xF0,0x00,0x08,0xD1,0x8C} //0x090
,{0x00,0x40,0x00,0x3C,0x33,0x49,0x12,0x27,0x08,0x98,0xFF,0xFF,0xFF,0xFF,0x00,0x02} //0x0A0
,{0x41,0x48,0x01,0xE6,0x49,0x41,0x01,0xE2,0x40,0x00,0x02,0xE1,0x00,0x40,0x03,0xE1} //0x0B0
,{0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0xFF,0xF0,0x5D,0xF0,0x01,0x00,0xFF,0xF0} //0x0C0
,{0xA5,0xF0,0x01,0x00,0xFF,0xF0,0x72,0xF0,0x01,0x00,0xFF,0xF0,0xAF,0xF0,0x01,0x00} //0x0D0
,{0x67,0xF0,0x00,0x00,0x33,0xFA,0x40,0x49,0x42,0xE2,0x00,0x06,0x8A,0xDA,0x00,0x9E} //0x0E0
,{0x00,0x1C,0x33,0x01,0x03,0x11,0x07,0x97,0xFF,0xFF,0xFF,0xFF,0x41,0x40,0x00,0xE2} //0x0F0
,{0x49,0x41,0x00,0xE2,0x48,0x49,0x01,0xE2,0x41,0x48,0x01,0xE2,0x49,0x41,0x01,0xE2} //End of page 0x0
};

// Current time - 12:35:09 29/6/2015(BST)

// I2C device found at address 0x51
static const byte eeprom51[][0x10] =
{
{0x48,0x49,0x02,0xE2,0x01,0xF0,0x41,0x48,0x05,0xE2,0x49,0x41,0x05,0xE2,0x48,0x49} //0x010
,{0x05,0xE2,0x41,0x48,0x05,0xE2,0x49,0x41,0x05,0xE2,0x48,0x49,0x05,0xE2,0x00,0x00} //0x020
,{0x01,0x1E,0x02,0xEC,0x00,0x3C,0x05,0x14,0x19,0x19,0x12,0x02,0xFF,0xFF,0xFF,0xFF} //0x030
,{0x41,0x48,0x00,0xE2,0x49,0x41,0x00,0xE2,0x26,0xF0,0x01,0x00,0x31,0xF0,0x01,0x00} //0x040
,{0xB1,0xF0,0x01,0x00,0xA9,0xF0,0x01,0x00,0x7F,0xF0,0x04,0x00,0x00,0xE4,0x1A,0xF0} //0x050
,{0x01,0x00,0x09,0xF0,0x14,0x04,0x00,0xE4,0x91,0xF0,0x01,0x00,0xB5,0xF0,0x01,0x00} //0x060
,{0x87,0xF0,0x01,0x00,0x94,0xF0,0x01,0x00,0xAD,0xF0,0x01,0x00,0xA9,0xF0,0x01,0x00} //0x070
,{0x95,0xF0,0x01,0x00,0x93,0xF0,0x01,0x00,0x6F,0xF0,0x48,0x49,0x00,0xE2,0xFF,0xF0} //0x080
,{0xFF,0xF0,0xC3,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40,0x05,0xE1,0x1C,0xF0,0x06,0x04} //0x090
,{0x05,0xE8,0x40,0x48,0x05,0xE2,0x06,0x04,0x05,0xE8,0x40,0x00,0x05,0xE1,0x00,0x40} //0x0A0
,{0x05,0xE1,0xFF,0xF0,0xFF,0xF0,0x52,0xF0,0x00,0x14,0x41,0x40,0x09,0xE6,0x49,0x41} //0x0B0
,{0x09,0xE2,0x48,0x49,0x10,0xE2,0x41,0x48,0x10,0xE2,0x49,0x41,0x10,0xE2,0x48,0x49} //0x0C0
,{0x11,0xE2,0x01,0xF0,0x41,0x48,0x03,0xE2,0x49,0x41,0x03,0xE2,0x48,0x49,0x04,0xE2} //0x0D0
,{0x41,0x48,0x06,0xE2,0x49,0x41,0x06,0xE2,0x48,0x49,0x06,0xE2,0x41,0x48,0x06,0xE2} //0x0E0
,{0x49,0x41,0x06,0xE2,0x48,0x49,0x06,0xE2,0x01,0xF0,0x41,0x48,0x01,0xE2,0x49,0x41} //0x0F0
,{0x01,0xE2,0x48,0x49,0x01,0xE2,0x40,0x48,0x02,0xE2,0x00,0x0C,0xDD,0xFA,0x02,0x30} //End of page 0x1
};

// Current time - 12:35:09 29/6/2015(BST)

// I2C device found at address 0x52
static const byte eeprom52[][0x10] =
{
{0x02,0x3C,0x52,0x32,0x19,0x19,0x12,0x02,0xFF,0xFF,0xFF,0xFF,0x41,0x40,0x00,0xE2} //0x010
,{0x40,0x41,0x00,0xE2,0x41,0x40,0x00,0xE2,0x49,0x41,0x00,0xE2,0x08,0xF0,0x40,0x00} //0x020
,{0x06,0xE1,0x00,0x40,0x06,0xE1,0x8F,0xF0,0x01,0x00,0x84,0xF0,0x01,0x00,0x82,0xF0} //0x030
,{0x01,0x00,0x69,0xF0,0x01,0x00,0x4E,0xF0,0x10,0x00,0x00,0xE4,0x17,0xF0,0x01,0x00} //0x040
,{0x62,0xF0,0x01,0x00,0x64,0xF0,0x01,0x00,0x61,0xF0,0x01,0x00,0x3A,0xF0,0x06,0x04} //0x050
,{0x03,0xE8,0x50,0xF0,0x01,0x00,0x58,0xF0,0x01,0x00,0x5D,0xF0,0x01,0x00,0x65,0xF0} //0x060
,{0x01,0x00,0x4F,0xF0,0x01,0x00,0x61,0xF0,0x01,0x00,0x6E,0xF0,0x01,0x00,0x5D,0xF0} //0x070
,{0x01,0x00,0x85,0xF0,0x01,0x00,0x71,0xF0,0x01,0x00,0x55,0xF0,0x01,0x00,0x6E,0xF0} //0x080
,{0x01,0x00,0x66,0xF0,0x12,0x10,0x06,0xE4,0x13,0x12,0x07,0xE4,0x61,0x32,0x11,0x13} //0x090
,{0x02,0xE4,0x44,0x62,0x08,0x00,0x06,0x04,0x40,0x00,0x09,0xE9,0x00,0x40,0x09,0xE1} //0x0A0
,{0x08,0x00,0x40,0x00,0x06,0xE1,0x00,0x40,0x06,0xE1,0x01,0xF0,0x41,0x00,0x00,0xE1} //0x0B0
,{0x01,0x41,0x00,0xE1,0x40,0x01,0x00,0xE1,0x00,0x40,0x00,0xE1,0x40,0x00,0x02,0xE1} //0x0C0
,{0x00,0x40,0x02,0xE1,0x40,0x00,0x02,0xE1,0x00,0x40,0x02,0xE1,0x40,0x00,0x02,0xE1} //0x0D0
,{0x00,0x40,0x02,0xE1,0x40,0x00,0x02,0xE1,0x00,0x40,0x02,0xE1,0x06,0x04,0x02,0xE8} //0x0E0
,{0x06,0x04,0x02,0xE8,0x06,0x04,0x02,0xE8,0x40,0x00,0x03,0xE1,0x00,0x40,0x03,0xE1} //0x0F0
,{0x69,0x49,0x03,0xE2,0x49,0x69,0x03,0xE2,0x40,0x00,0x05,0xE1,0x00,0x40,0x05,0xE1} //End of page 0x2
};

// Current time - 12:35:09 29/6/2015(BST)

// I2C device found at address 0x53
static const byte eeprom53[][0x10] =
{
{0x69,0x49,0x05,0xE2,0x49,0x69,0x05,0xE2,0x06,0x04,0x05,0xE8,0x69,0x49,0x06,0xE2} //0x010
,{0x49,0x69,0x06,0xE2,0x39,0xF0,0x01,0x00,0x16,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40} //0x020
,{0x06,0xE1,0x00,0x09,0x39,0xFE,0xFE,0xFE,0x00,0x10,0x63,0x79,0x12,0x34,0x40,0x36} //0x030
,{0x93,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x040
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x060
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x070
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x080
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x090
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0A0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0B0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0C0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x3
};

// Current time - 12:35:10 29/6/2015(BST)

// I2C device found at address 0x54
static const byte eeprom54[][0x10] =
{
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x010
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x020
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x030
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x040
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x060
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x070
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x080
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x090
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0A0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0B0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0C0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x4
};

// Current time - 12:35:10 29/6/2015(BST)

// I2C device found at address 0x55
static const byte eeprom55[][0x10] =
{
{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x010
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x020
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x030
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x040
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x060
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x070
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x080
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x090
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0A0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0B0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0C0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x5
};

// Current time - 12:35:10 29/6/2015(BST)

// I2C device found at address 0x56
static const byte eeprom56[][0x10] =
{
{0x40,0x69,0x13,0x06,0x00,0x00,0x10,0x63,0x70,0x12,0x34,0x93,0x36,0x38,0x00,0x00} //0x010
,{0x00,0x00,0x00,0x00,0x99,0x95,0x10,0x02,0x99,0x94,0x10,0x03,0x94,0x00,0x99,0x95} //0x020
,{0x99,0x05,0x99,0x95,0x99,0x05,0x28,0x03,0x06,0x93,0x19,0xCE,0x00,0x00,0x00,0x00} //0x030
,{0x00,0x00,0x00,0x00,0x00,0x00,0x27,0x03,0x03,0x24,0x03,0x03,0x14,0x02,0x58,0x00} //0x040
,{0x00,0x0D,0x16,0x24,0x18,0x14,0x24,0x24,0x24,0x24,0x24,0x24,0x24,0x24,0x24,0x24} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x03,0x20,0x15,0x00,0x02,0x01,0x01,0x00} //0x060
,{0x00,0x00,0x00,0x00,0x00,0x07,0x94,0x02,0xA2,0x04,0x7C,0x07,0x66,0x02,0xAF,0x04} //0x070
,{0xD2,0x08,0xAF,0x04,0x7C,0x73,0x80,0x00,0x00,0x00,0x00,0x01,0x10,0x00,0x00,0x34} //0x080
,{0x31,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x090
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x0A0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x0B0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x0C0
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x6
};

// Current time - 12:35:10 29/6/2015(BST)

// I2C device found at address 0x57
static const byte eeprom57[][0x10] =
{
{0x0F,0x0E,0xD0,0x3C,0x1F,0x8C,0x75,0x0F,0x89,0x3C,0x78,0x03,0x40,0x40,0x05,0x2A} //0x010
,{0x01,0x00,0x11,0x00,0x18,0x81,0x82,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00} //0x020
,{0x00,0x8F,0x00,0x00,0x01,0x45,0x50,0xD6,0xC0,0x10,0x2B,0x24,0x03,0x03,0x26,0x64} //0x030
,{0xF8,0xF0,0x04,0x2A,0x0F,0xF4,0x19,0x19,0x96,0x09,0x80,0x01,0x96,0x09,0x80,0x01} //0x040
,{0x00,0x00,0x80,0x01,0x12,0x74,0x53,0x27,0x03,0x03,0x70,0xFF,0xFF,0xFF,0xFF,0xFF} //0x050
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x060
,{0xFF,0x18,0x06,0x0C,0x04,0x38,0x58,0x02,0x14,0x24,0x03,0x03,0xD0,0x70,0x98,0x18} //0x070
,{0x06,0x00,0x09,0x23,0x00,0x10,0x63,0x70,0x06,0x16,0x00,0x00,0x00,0x00,0x00,0x00} //0x080
,{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x49} //0x090
,{0x11,0x04,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15} //0x0A0
,{0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15} //0x0B0
,{0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xF4,0x15,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0C0
,{0xFF,0xFF,0x71,0xC0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0D0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0E0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //0x0F0
,{0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF} //End of page 0x7
};

ahull
Wed Mar 28, 2018 10:40 pm
E1? What is it with E1 I wonder?!

[email protected]:~/Documents/Personal/Dosimeter/files/alarmed1/run2/run3/run4/run5$ grep E1 xx41
,{0x48,0x49,0x00,0xE2,0x08,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40,0x06,0xE1,0x00,0x00} //0x030
,{0x00,0xE1,0x00,0x40,0x00,0xE1,0x6E,0xF0,0x40,0x00,0x04,0xE1,0x00,0x40,0x04,0xE1} //0x060
,{0x0A,0xF0,0x41,0x00,0x04,0xE1,0x01,0x41,0x04,0xE1,0x40,0x01,0x05,0xE1,0x00,0x40} //0x070
,{0x05,0xE1,0xFF,0xF0,0x61,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40,0x06,0xE1,0xFF,0xF0} //0x080
,{0x41,0x48,0x01,0xE6,0x49,0x41,0x01,0xE2,0x40,0x00,0x02,0xE1,0x00,0x40,0x03,0xE1} //0x0B0
,{0x40,0x00,0x08,0xE1,0x00,0x40,0x09,0xE1,0xFF,0xF0,0x5D,0xF0,0x01,0x00,0xFF,0xF0} //0x0C0
,{0xFF,0xF0,0xC3,0xF0,0x40,0x00,0x05,0xE1,0x00,0x40,0x05,0xE1,0x1C,0xF0,0x06,0x04} //0x090
,{0x05,0xE8,0x40,0x48,0x05,0xE2,0x06,0x04,0x05,0xE8,0x40,0x00,0x05,0xE1,0x00,0x40} //0x0A0
,{0x05,0xE1,0xFF,0xF0,0xFF,0xF0,0x52,0xF0,0x00,0x14,0x41,0x40,0x09,0xE6,0x49,0x41} //0x0B0
,{0x06,0xE1,0x00,0x40,0x06,0xE1,0x8F,0xF0,0x01,0x00,0x84,0xF0,0x01,0x00,0x82,0xF0} //0x030
,{0x02,0xE4,0x44,0x62,0x08,0x00,0x06,0x04,0x40,0x00,0x09,0xE9,0x00,0x40,0x09,0xE1} //0x0A0
,{0x08,0x00,0x40,0x00,0x06,0xE1,0x00,0x40,0x06,0xE1,0x01,0xF0,0x41,0x00,0x00,0xE1} //0x0B0
,{0x01,0x41,0x00,0xE1,0x40,0x01,0x00,0xE1,0x00,0x40,0x00,0xE1,0x40,0x00,0x02,0xE1} //0x0C0
,{0x00,0x40,0x02,0xE1,0x40,0x00,0x02,0xE1,0x00,0x40,0x02,0xE1,0x40,0x00,0x02,0xE1} //0x0D0
,{0x00,0x40,0x02,0xE1,0x40,0x00,0x02,0xE1,0x00,0x40,0x02,0xE1,0x06,0x04,0x02,0xE8} //0x0E0
,{0x06,0x04,0x02,0xE8,0x06,0x04,0x02,0xE8,0x40,0x00,0x03,0xE1,0x00,0x40,0x03,0xE1} //0x0F0
,{0x69,0x49,0x03,0xE2,0x49,0x69,0x03,0xE2,0x40,0x00,0x05,0xE1,0x00,0x40,0x05,0xE1} //End of page 0x2
,{0x49,0x69,0x06,0xE2,0x39,0xF0,0x01,0x00,0x16,0xF0,0x40,0x00,0x06,0xE1,0x00,0x40} //0x020
,{0x06,0xE1,0x0C,0xF0,0x40,0x00,0x07,0xE1,0x00,0x40,0x07,0xE1,0x03,0xF0,0x40,0x00} //0x030
,{0x08,0xE1,0x00,0x40,0x08,0xE1,0x00,0x09,0x48,0xFE,0xFE,0xFE,0x00,0x40,0x03,0xE1} //0x040
,{0x07,0xF0,0x40,0x00,0x01,0xE1,0x00,0x40,0x01,0xE1,0x00,0x09,0x86,0xFE,0xFE,0xFE} //0x050

ahull
Wed Mar 28, 2018 10:49 pm
ahull
Thu Mar 29, 2018 1:14 pm
Just in case you were wondering what all this has to do with the STM32F103, there are two of them involved in extracting the data.

Bluepill, st-linkv2, SOP8 clip and dosimeter.

ag123
Sat Mar 31, 2018 4:34 pm
off-topic, but i’m not too sure if after all an image sensor could do some of that radiation detection
http://iopscience.iop.org/article/10.10 … 012047/pdf
https://arxiv.org/pdf/1401.0766.pdf

https://www.youtube.com/watch?v=MsG6JsMAJ_Q
that could make things like ov7670 pretty useful
but i’d guess the surface area to detect the radiation is probably too small to be reliable
zoomx
Sun Apr 01, 2018 7:03 am
[ag123 – Sat Mar 31, 2018 4:34 pm] –
but i’d guess the surface area to detect the radiation is probably too small to be reliable

until you are near a hot area!

The radiation detection area of the cmos sensor is probably comparable to the area of the detector in this dosimeter. The sensitivity however I couldn’t guess at, so you would need to try it and see. I suspect it might actually work quite well.

ahull
Wed Apr 04, 2018 10:03 am
In order to gain a few more clues regarding which areas of memory do what, I am probably going to end up firing up Sigrok.

However I may not get the opportunity to do this for a couple of weeks. Meantime this youtube video, which popped up the list of youtube recommendations caught my attention, and I thought I’d post the link here.

My plan would be to see what bytes of the eeprom are read, and in what order, to try to gain some insight into where things like config, calibration, buffer pointers etc might live.

ahull
Sat Apr 28, 2018 1:06 pm
I located the manual for one on the base stations for these dosimeters. It seems a little evasive on the subject of how it actually works, frequencies it transmits on and so forth. However it does give a few clues..

The PAM-TRX is designed to transmit the TTL RS-232 data packet from the dosimeter when the
DMC-2000 is configured with transmission ON, 4800 BAUD, Triggered. The unit is compatible
with all the DMC family gamma dosimeters data formats (DMC2000S, X and SOR/R).

So it would appear that if configured to do so, the dosimeter will send an alarm code (presumably repeatedly) at 4800 baud.. at some as yet to be determined frequency or frequencies, using some as yet to be determined modulation method.

Compatible with all available frequencies. CE compliant with FHSS 2.4 GHz and 868 MHz radio installed.

Now I suspect the 2.4GHz may be wifi, but the 868 MHz looks interesting. I’ll need to do some SDR sniffing when I get back.

EDIT: Page 34 gives some basic info regarding the protocol. :D

This means that the dosimeter transmits data immediately following a strobe signal and the data is
transmitted using the dosimeter internal clock in ASCII format, 8 bits with bit 8 set to 0, and 1 stop bit.

… and …

The ASCII format of the data is as shown in Table 1 below.
The dosimeter data consists of 13 characters, each consisting of two bytes representing an ASCII character or a set of 4 status bits.
The data starts with a Line Feed (LF) and ends with a checksum CKS.
A Carriage Return (CR) is transmitted after the checksum.
The data sent is:
Dosimeter serial number
Cumulated Dose
Current value of the Dose Rate
Dosimeter Status
The check sum is calculated such that the modulo 256 sum of all 26 bytes is equal to 0.

I think I can work with that 8-)

zoomx
Mon Apr 30, 2018 10:57 am
868MHz should be the frequency to use in Europe instead of 433MHz, I have some devices that use this frequency, for example a weather station.
I believe that 2.4GHz is not a WiFi signal but instead like nRF240.
ahull
Mon Apr 30, 2018 11:08 am
[zoomx – Mon Apr 30, 2018 10:57 am] –
868MHz should be the frequency to use in Europe instead of 433MHz, I have some devices that use this frequency, for example a weather station.
I believe that 2.4GHz is not a WiFi signal but instead like nRF240.

I think you are likely to be correct. The next trick is going to be getting the devices to talk to me, and of course figuring out how and where to listen.
I’ve got a couple of these -> https://www.ebay.co.uk/itm/NRF905-433-8 … 2749.l2649
and a couple of these -> https://www.ebay.co.uk/itm/Wireless-RFM … 2749.l2649
.. rowing themselves slowly by boat from China to Scotland, so hopefully they will arrive there round about the same time I do. Till then I guess I can just indulge in some wild unsubstantiated speculation about how the dosimeter’s comms. are likely to work. :D

stevestrong
Mon Apr 30, 2018 4:01 pm
Fyi, the nRF905 from ebay will not work with 868MHz.
RogerClark
Mon Apr 30, 2018 9:14 pm
AFIK

433 is a ISM band which is used a lot in the UK.

Use if 868MHz is a much more recent development, mainly because of congestion of the 433Mhz band.

Also, AFIK the nRF905 effectively uses its own proprietary modulation etc.
I use it for comms to other nRF905 modules, but I don’t think it’s compatible with anything else.

ahull
Tue May 01, 2018 3:39 am
[RogerClark – Mon Apr 30, 2018 9:14 pm] –
AFIK

433 is a ISM band which is used a lot in the UK.

Use if 868MHz is a much more recent development, mainly because of congestion of the 433Mhz band.

Also, AFIK the nRF905 effectively uses its own proprietary modulation etc.
I use it for comms to other nRF905 modules, but I don’t think it’s compatible with anything else.

I suspect the dosimeter may also use some proprietary modulation scheme. I have another use in mind for the two nRF905 modules if it turns out they are no use in this instance.

ahull
Tue May 01, 2018 9:41 am
I’ve just turned up one more interesting piece of information. Well interesting to me at least.

The Mirion DM 2000 Rugged industrial Dosimeter Reader engages in “communications with DMC 3000 and DMC 2000 dosimeters using 125 kHz magnetic coupling”, so I might also be able to talk to the devices I have in a similar manner.

That sounds suspiciously like RFID to me.

Maybe I need to subject the daughter board with the gold contacts to a little light 125kHz conversation.

I’m sure I have one of these..


… kicking about somewhere.

ahull
Tue May 01, 2018 3:28 pm
Another “interesting” piece of information.

Both G2 and G3 protocols use the same communication medium, with an omnidirectional, low-frequency
(125 kHz) transceiver. .. which seems to imply that the dosimeter, rather than the daughter board talks on 125kHz .. or perhaps they both do…

zoomx
Wed May 02, 2018 6:40 am
My work badge is an RFID that works at 125KHz and has a credit card form factor, I have read it with the same board RDM6300. I think that the small doughter board is too small, I didn’t see any antenna, as you can see in the module the antenna is not small, you can find the same dimension in tags that are almost big as a credit card like my badge.

The only antenna that I have seen on photos is the one that should be on the top, maybe it works at 125KHz too. I didn’t see any antenna at 433MHz or 868MHz but I am not an expert. Maybe it’s a ceramic antenna like the ones used in mobile phones.

ahull
Wed May 02, 2018 9:15 am
Some of the RFID stuff I have used is much smaller than credit card sized.
For example the cheap “keyfob” type tags (example above) are less than an inch in diameter (and if you dissect them you will find the coil inside is even smaller)
I was wondering if the blue “diode” on the daughter board, might actually be a diode with a coil of wire wrapped round it to form a detector.

Time will tell, and I wont actually get a chance to check for a couple of weeks.

BTW these look interesting => https://www.ebay.co.uk/itm/10X-Electron … SwGn5ZsR3Q if you are looking for really small RFID devices (or you have a few pigeons you need to keep track of ;) )

Of course the implantable ones are even smaller. :o (although they are 134.2kHz)


zmemw16
Wed May 02, 2018 2:14 pm
automatic cat door, now how to implant it. oh where’s the cat ?
low flying supersonic feline detected. :roll:
srp
ahull
Wed May 02, 2018 3:15 pm
[zmemw16 – Wed May 02, 2018 2:14 pm] –
automatic cat door, now how to implant it. oh where’s the cat ?
low flying supersonic feline detected. :roll:
srp

Call me old fashioned, but you could just attach the widget to the poor felis silvestris catus’s collar. Anything else risks near fatal blood loss on your part, and a lifetime of sulking on the part of the cat. ;)

zmemw16
Wed May 02, 2018 3:52 pm
i considered a flea collar for her, reached the same conclusion.
her time for let’s learn to play nice with humans was not handled by me and the result from those who did do it is pretty
physcotic.
she’s not feral, i suspect rather she’s stressed / insecure, doesn’t like handling, mood changes in waves of about week/fortnight, then again she has been known to sleep on my chest.
enough being OTT
stephen
ahull
Sun May 06, 2018 9:48 am
More digging on my days off turned up this link -> http://www.laurussystems.com/Service/15 … 0_AA_4.pdf

Which appears to describe the protocol from the PC to the dossimeter (page 37 onwards), which is the missing piece of the puzzle, since I already know what to expect from the dosimeter. I expect the protocol for the SOR/T to be somewhat similar if not identical.

There are a couple of schematics (around page 68) including what appears to be a remote GM detector that attaches to this particular transmitter. :D

Leave a Reply

Your email address will not be published. Required fields are marked *
